SS2 Memory Boards

Power:

0.8 Amps @ +5Vdc

4.0 Watts

Notes

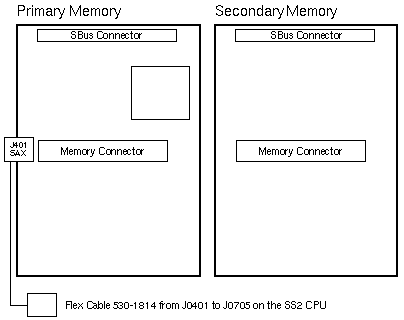

1. Connect Flex Cable 530-1814 to J401 on the Primary Memory and to the SAX connector on the Sun-4/75 CPU.
2. Install the Secondary Memory onto the Primary Memory.
3. Use standoff 240-1879-01 to mount the Secondary Memory.
4. The address range for the Primary Memory is 8000000 - 9ffffff.
5. The address range for the Secondary Memory is A000000 - Bffffff.

Reference

Installing and Testing SPARCstation 2 Memory Boards, 800-6058-11.
