Sun-4/370/470

12-Slot VMEbus Logic Enclosure

Front View

Rear View

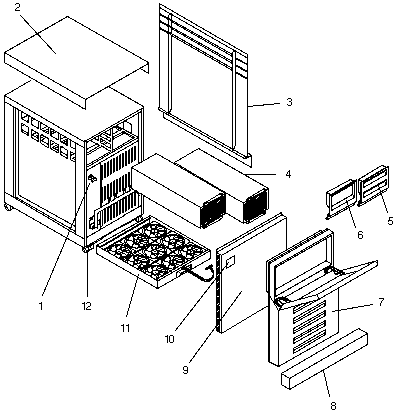

CODE PART # DESCRIPTION
1 501-1439 12-Slot Backplane, Pressfit (obsolete) 1
1 501-1598 12-Slot Backplane, Pressfit
1 501-1832 12-Slot Backplane, Pressfit with DC Harness Cutout
2 340-1898 Top Cover
3 340-1877 Side Cover (obsolete)
3 540-1846 Side Cover
4
Refer to Codes 18-24
5 330-1192 Front Bezel Blank Insert
6 330-1210 Front Bezel Half-Height Insert
6 330-1284 Front Bezel Full-Height Insert
NS 340-2249 SCSI Tray Full-Height Bezel
NS 340-1901 SCSI Tray Half-Height Bezel
7 540-1731 Front Bezel Assembly (obsolete)
8 540-1849 Front Bumper (obsolete)
7 & 8
NS
NS		 540-1731
240-0558
240-0557		 Front Bezel and Bumper Assembly
Miniball Receptacle
Miniball Fastener
9 340-1871 Front EMI Shield, without Switch Assembly
10
NS
NS
NS		 540-1748
330-1212
330-1213
340-1936		 Switch Assembly (obsolete)
Plastic Remote Switch (obsolete)
Plastic Remote Switch Block (obsolete)
Remote Switch Housing (obsolete)
10
NS
NS		 540-2136
330-1373
340-2491		 Switch Assembly
Switch
Switch Mounting Bracket
11
NS
NS
NS
NS
NS		 540-1751
530-1482
540-1732
530-1640
370-1732
370-1214		 Fan Tray Assembly, 9 Fans 2
Fan Tray DC Harness for Fan 540-1732
DC Fan Assembly, 150 CFM
Fan Tray DC Harness for Fan 370-1732
DC Fan Assembly, 150 CFM
DC Fan Assembly with connector, 150 CFM
12 240-8503 Caster (obsolete)
  1. The Sun 4400 CPU is not supported in the 501-1439 Backplane.
  2. The Fans are removable from 540-1751-04 and 540-1751-05 to allow access to the fan tray screen during routine preventive maintenance. The fans are not removable from 540-1751-02 or 540-1751-03.

Peripheral Tray

Dual Disk Drives

Disk Drive and Tape Drive


12-Slot VMEbus Logic Enclosure - Continued

CODE PART # DESCRIPTION
NS 260-3719 Sun-4/370 Logo
NS 340-1878 Rear Bezel (obsolete)
NS 540-1848 Rear Bezel
NS 540-1749 Rear Bumper
13 530-1480 Backplane to Interface PCB DC Harness
14
NS		 501-1493
140-1019		 Interface PCB (SCSI Bus and DC Power)
15 Amp Fuse
15 530-1494 SCSI Bus Internal Command Cable, 25.4 cm
16 340-1892 SCSI PCB Cover
17 300-1047 925 Watt Power Supply
17 300-1089 925 Watt Power Supply

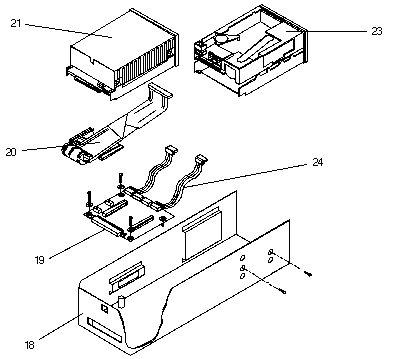

18 340-1903 Peripheral Tray Base
19 501-1496 Peripheral Tray Interface PCB
20 530-1498 Internal SCSI Bus Cable, 1.2M (obsolete) 1
20 530-1729 Internal SCSI Bus Cable, 1.2M 1
21 370-1230 327MB Disk Drive, Imprimis/CDC 77777126
21 370-1319 669MB Disk Drive, Micropolis 1588-15
21 370-1319 669MB Disk Drive, Maxtor XT-8760S

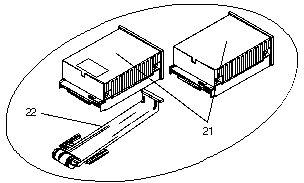

22 530-1500 Internal SCSI Bus Cable, 1.2M 2
23 370-1206 150MB Tape Drive, Full-Height, QIC-150
23 370-1247 45/60MB Tape with MT02, Full-Height, QIC-11/24
23 370-1297 2.3GB 8 mm Tape Drive, Full-Height
23 370-1205 150MB Tape Drive, Half-Height, QIC-150
23 370-1347 644MB CD-ROM, Half-Height
24 530-1499 Peripheral Tray DC Harness
NS 530-1638 DC "Y" Harness, Half-Height Peripherals
NS 530-1249 External SCSI Cable, DD-50SA to DD-50SA, 1.0M
NS 530-1593 Ext Cable, 50-Pin SCSI-2 to DD-50SA, 1.0M (obs)
NS 530-1829 External Cable, 50-Pin SCSI-2 to DD-50SA, 1.0M

800-3255 12-Slot Office Pedestal Field Service Manual
  1. Tape only and Disk with Tape trays use Internal Cable 530-1498 or 530-1729.
  2. Disk only, Dual Disk, and Empty trays use Internal Cable 530-1500.

Sun-4/470

12-Slot VMEbus Logic Enclosure

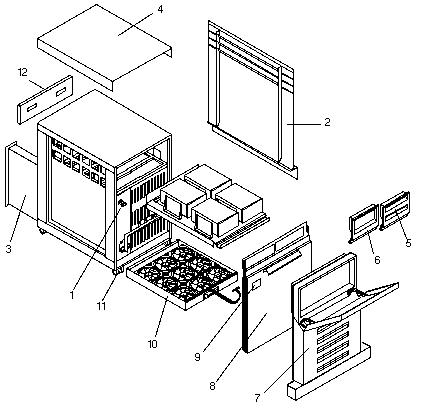

CODE PART # DESCRIPTION
1 501-1832 12-Slot Backplane, Pressfit with DC Harness Cutout
2 540-1846 Side Cover
3 300-1089 925 Watt Power Supply
4 340-1898 Top Cover
5 330-1192 Blank Bezel Insert
6 330-1210 Front Bezel Half-Height Insert
6 330-1284 Front Bezel Full-Height Insert
7
NS
NS		 540-1939
240-0558
240-0557		 Front Bezel Assembly
Miniball Receptacle
Miniball Fastener
8 340-2291 Front EMI Cover, without Switch Assembly
NS 340-2292 Blank EMI Cover Filler Panel
NS 340-2444 Peripheral Mounting Bracket
9
NS
NS		 540-2136
330-1373
340-2491		 Switch Assembly
Switch
Switch Mounting Bracket
10
NS
NS
NS		 540-1751
370-1214
530-1640
370-1732		 Fan Tray Assembly, 9 Fans 1
DC Fan Assembly with Connector, 150 CFM
Fan Tray DC Harness for Fan 370-1732
DC Fan Assembly, 150 CFM
11 340-2129 Caster
12 340-2293 Rear EMI Cover
NS 150-1785 External Active Terminator, 50-Pin SCSI-2
NS 260-3615 SPARCstation 470 Logo
NS 260-3616 SPARCserver 470 Logo
NS 530-1676 Internal SCSI Bus Cable
NS 370-1319 669MB Disk Drive, Micropolis 1588-15
NS 370-1319 669MB Disk Drive, Maxtor XT-8760S
NS 370-1205 150MB Tape Drive, Half-Height, QIC-150
NS 370-1206 150MB Tape Drive, Full-Height, QIC-150
NS 370-1297 2.3GB 8 mm Tape Drive, Full-Height
NS 370-1347 644MB CD-ROM, Half-Height
NS 370-1377 1.3GB Disk Drive, Seagate 976002-012/ST41600N
NS 530-1675 Peripheral Tray DC Harness
NS 530-1842 Grounding Cable, CD-ROM, 12.7 cm
NS 530-1829 SCSI Cable, 50-Pin SCSI-2 to DD-50SA, 1.0M
NS 540-1848 Rear Bezel
NS 540-1749 Rear Bumper

800-3255 12-Slot Office Pedestal Field Service Manual
  1. The Fans are removable from 540-1751-04 and 540-1751-05 to allow access to the fan tray screen during routine preventive maintenance.
