Sun 4300
Sun-4/310/350/360/370/380/390
| 501-1563 |
501-1564 |
501-1495 |
501-1703 |
24MB Parity
w 1MB SIMMs |
8MB Parity
w 1MB SIMMs |
48MB Parity
w 1MB SIMMs |
32MB Parity
w 4MB SIMMS |

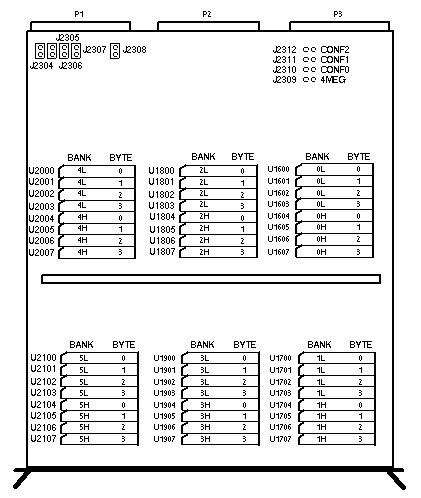

Note
- Socket locations are silkscreened on the solder side of this board.
Reference
- 8 Mbyte, 24 Mbyte, and 48 Mbyte Parity Memory Board Installation and
Configuration Manual, 800-3403.
Jumper Settings and Memory Configurations
| JUMPER |
SETTING |
DESCRIPTION |
| J2304 |
In |
BGR0 |
| J2305 |
In |
BGR1 |
| J2306 |
In |
BGR2 |
| J2307 |
In |
BGR3 |
| J2308 |
In |
IACK |
| JUMPER |
SETTING |
SIMM MODULE |
| J2309/4MEG |
Out |
1MB SIMM |
| J2309/4MEG |
In |
4MB SIMM |
Power
| 24MB |
4.3 Amps @ +5Vdc
21.5 Watts |
| 48MB |
5.3 Amps @ +5Vdc
26.5 Watts |
Last updated: December 2, 1996
|
