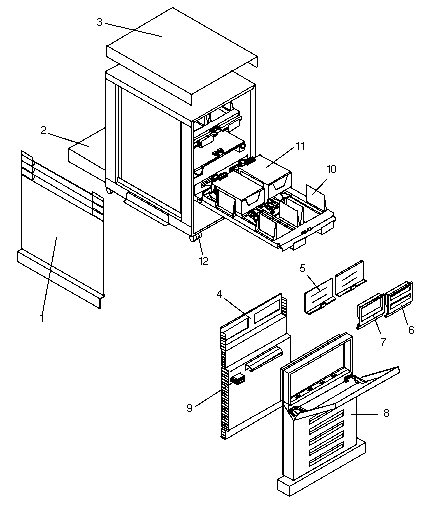

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-1846 |
Side Cover |
| 2 |
300-1091 |
800 Watt Power Supply |
| 2 |
300-1106 |
800 Watt Power Supply |
| 3 |
340-1898 |
Top Cover |
| 4 |
340-2534 |
Front EMI Cover, without Switch Assembly |
| 5 |
340-2292 |
Blank EMI Cover Filler Panel |
| 6 |
330-1192 |
Blank Bezel Insert |
| 7 |
330-1210 |
Front Bezel Half-Height Insert |
| 7 |
330-1284 |
Front Bezel Full-Height Insert |
8
NS
NS |
540-1939
240-0558
240-0557 |
Front Bezel Assembly
 Miniball Receptacle
Miniball Fastener |
9
NS
NS
NS
NS |
540-1765
501-1531
540-2136
330-1373
340-2491 |
LED/Switch Assembly
LED/Switch PCB
Remote Switch Assembly
 Switch
Switch Bracket |
| 10 |
340-2444 |
Peripheral Mounting Bracket |
| 11 |
370-1377 |
1.3GB Disk Drive, Seagate 976002-012, PA4E1 |
| 11 |
370-1377 |
1.3GB Expansion Disk Drive, Option 572 |
| 12 |
340-2129 |
Caster |
| NS |
150-1785 |
External Active Terminator, 50-Pin SCSI-2 |
| NS |
340-2535 |
Rear EMI Cover |
| NS |
340-2543 |
Rear EMI Cover Filler Panel |
| NS |
370-1297 |
2.3GB 8 mm Tape Drive, Full-Height, Option 802 |
| NS |
370-1347 |
SunCD CD-ROM, Half-Height, Option 559 |
| NS |
530-1619 |
System Grounding Cable, 2.0M |
| NS |
530-1675 |
Peripheral Tray DC Harness |
| NS |
530-1676 |
Internal SCSI Cable, 1670 mm |
| NS |
530-1793 |
External Cable, 50-Pin SCSI-2, 80 cm, Ferrites |
| NS |
530-1811 |
DC Harness, Power Supply to Right Side |
| NS |
530-1824 |
LED/Switch DC Harness, Power Supply to Switch |
| NS |
530-1836 |
External Cable, 50-Pin SCSI-2, 2.0M, Ferrites |
| NS |
530-1841 |
DC Harness, Power Supply to Fans and Left Side |
| NS |
530-1842 |
CD-ROM Grounding Cable |
| NS |
530-1852 |
External Cable, 50-Pin SCSI-2, 4.0M, Ferrites |
| NS |
540-1749 |
Rear Bumper |
| NS |
540-1847 |
Rear Bezel |
| NS |
540-2157 |
Three Fan Assembly, 45 CFM each |
|
800-6402 |
Sun SCSI Expansion Pedestal Service Manual |
|
800-7286 |
Sun SCSI Expansion Pedestal Service Manual |
