Sun Expansion Pedestal

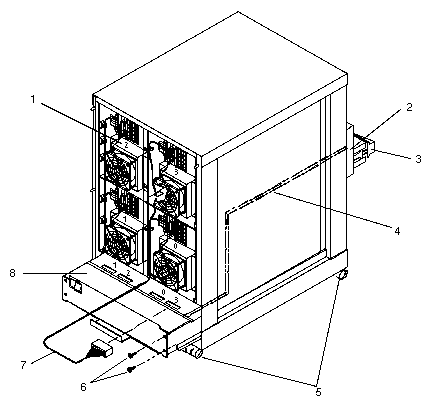

CODE	PART #	DESCRIPTION
NS NS	340-2188 340-2208	Rear Panel without Cables Filler Panel
1 NS NS NS NS NS	540-2008 370-1352 340-2300 180-1486 240-1207 250-1070	IPI8-1000/2HP 6MB/Sec Disk Drive FRU Assembly 911MB Disk Drive, Seagate 97209-11G, PA8Y2 1 Disk Mounting Cradle Front Ground Strap #10-32 x 1/2" Drive Mounting Screw Rear Ground Strap
NS	340-1898	Top Cover
NS	330-1192	Disk Bezel Insert
NS	540-1749	Rear Bumper Assembly
NS	540-1846	Side Panel Assembly
NS	540-1847	Rear Bezel Assembly
NS	540-1939	Front Panel and Bumper Assembly
NS	530-1487	IPI Drive I/O Cable, 8.0M
NS	530-1488	IPI Drive I/O Cable, 1.0M
NS	530-1518	IPI Drive I/O Cable, 2.0M
NS	530-1536	IPI Drive I/O Cable, 450 mm
NS	530-1788	IPI Drive I/O Cable, 2.0M
NS	530-1789	IPI Drive I/O Cable, 8.0M
NS	370-1220	IPI Drive Terminator
2 NS NS	540-1765 340-2050 501-1531	LED/Switch Assembly Switch Panel LED/Switch PCB
3 NS NS NS	540-1748 330-1212 330-1213 340-1936	Remote Switch Assembly Switch Push Block Switch Housing
4	530-1495	LED/Switch DC Harness
5	340-2129	Caster
6	240-1372	M4 0.7 x 10 mm Screw
7	530-1544	DC Harness
8	300-1075	840W Power Supply 2
NS	530-1619	System Grounding Cable, 2.0M
NS	340-2262	Cable Restraint Bracket
NS	230-0203	4" Tiestrap
NS	230-1188	6" Tiestrap, Snap-in
NS	800-3257	Sun Expansion Pedestal Field Service Manual

1. Do NOT install Disk Drive 370-1351 in the Sun Expansion Pedestal.
2. Power Supply 300-1052 does not support the 911MB Disk Drive.
