| CODE |
PART # |
DESCRIPTION |
|

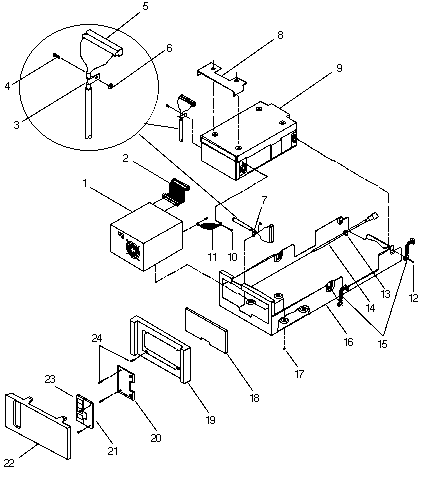

540-2005 |
IPI Drive, Power Supply, and Tray Assembly |
| 1 |
300-1074 |
215 Watt Power Supply |
| 2 |
370-1263 |
DC Harness |
| 3 |
240-1603 |
Cable Clamp |
| 4 |
240-1185 |
#6-32 x 1/4" Screw |
| 5 |
370-1262 |
Operator Panel Harness |
| 6 |
240-1035 |
#6 Lock Washer |
| 7 |
240-1602 |
Cable Clamp |
| 8 |
370-1350 |
Air Baffle |
| 9 |
370-1351 |
911MB Disk, Seagate 97229-11G, PA8Y2 |
| 10 |
240-1185 |
#6-32 x 1/4" Screw (use 7/64" Hex Screwdriver) |
| 11 |
250-1013 |
Ground Strap |
| 12 |
240-1186 |
#6-32 x 3/8" Screw |
| 13 |
240-1595 |
Power Cord Clamp |
| 14 |
180-1185 |
AC Power Cord, 572 mm |
| 15 |
250-1023 |
Ground Strap |
| 16 |
340-1854 |
Tray |
| 17 |
240-1185 |
#6-32 x 1/4" Screw (use 7/64" Hex Screwdriver) |
| 18 |
250-1016 |
Filter |
| 19 |
330-1224 |
Operator Panel Mounting Bracket |
| 20 |
330-1226 |
Operator Panel Shield |
| 21 |
370-1355 |
Operator Panel |
| 22 |
330-1225 |
Operator Panel Cover |
| 23 |
240-1601 |
#6-32 x 1/4" Screw (use 2 mm Hex Screwdriver) |
| 24 |
240-1596 |
#6-32 x 7/8" Screw (use 7/64" Hex Screwdriver) |
| NS |
180-1183 |
AC Power Cord, 'Y' (230V) |
| NS |
180-1184 |
AC Power Cord, 'Y' (240V) |
| NS |
340-1853 |
Dual Drive Tray (obsolete) |
| NS |
340-1855 |
Tray Slide, Right (obsolete) |
| NS |
340-1856 |
Tray Slide, Left (obsolete) |
| NS |
340-1891 |
Tray Spacer |
| NS |
340-2296 |
Dual Drive Tray |
| NS |
370-1220 |
IPI-2 Disk Terminator |
| NS |
530-1351 |
AC Power Cord (230V) |
| NS |
530-1343 |
AC Power Cord (240V) |
| NS |
530-1487 |
IPI Drive I/O Cable, 8.0M (obsolete) |
| NS |
530-1488 |
IPI Drive I/O Cable, 1.0M |
| NS |
530-1518 |
IPI Drive I/O Cable, 2.0M (obsolete) |
| NS |
530-1536 |
IPI Drive I/O Cable, 450 mm |
| NS |
530-1788 |
IPI Drive I/O Cable, 2.0M |
| NS |
530-1789 |
IPI Drive I/O Cable, 8.0M |
| NS |
None |
#6-32 x 1/4" Screw (use T15 Torx Screwdriver) |
| NS |
370-1330 |
Connector Assembly (use 7/64" Hex Screwdriver) |
