115 Volt AC Power Sequencer
300-1011

Pulizzi Engineering PC874

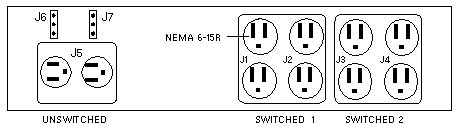

Outlet Side

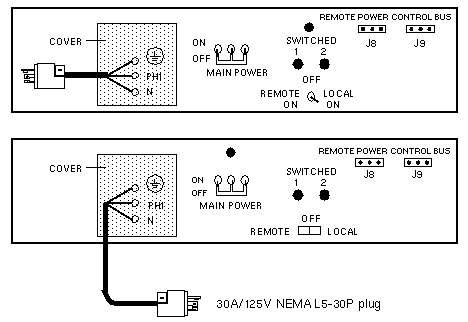

Control Side

Notes

1. Requires AC outlet NEMA L5-30R, 30A, 125V.
2. Any conversion to the Data Center Cabinet, including replacement of the AC Power Plug or AC Power Sequencer, voids all safety agency approvals.
3. The Switched 2 output comes on after a 5 second delay.

References

1. Installation Manual for the Sun Full-height Rack System, 800-1555.
2. Installation Manual for Sun Rackmountable Fileservers, 800-1556.
3. Sun Full-Height Rack System Installation Manual, 800-1677.
4. Sun Rackmountable Fileservers Installation Manual, 800-1676.
5. Sun 900 Mbyte Disk Drive Installation Manual, 800-1036.
