Volume II - Power

AC Power Sequencer
Remote and Local Bus Connectors

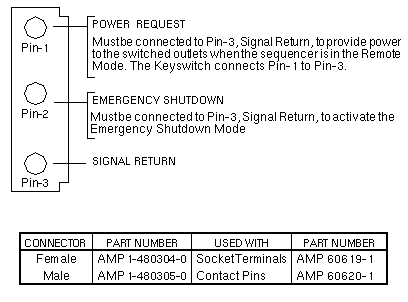

Remote I/O Connectors J6, J7, J8, J9

A parallel circuit connects J6, J7, J8, and J9. Inputs to the Remote I/O Connectors are activated by mechanical toggle, key switch, transistor, integrated circuit, or thermoswitch with a normal open configuration.

Cable Description

Use 3-conductor, #22 AWG stranded wire.

Remote - OFF - Local Switch
