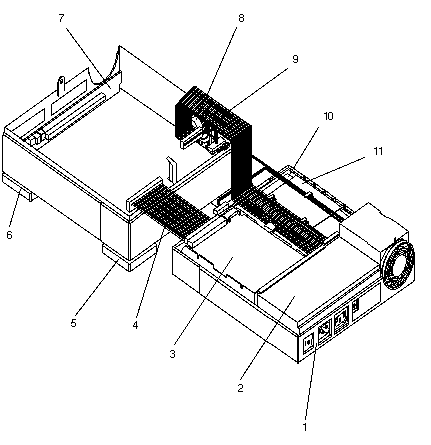

| CODE |
PART # |
DESCRIPTION |
| 1 |
540-2231 |
Top Cover Assembly |
| 2 |
300-1101 |
70 Watt Power Supply |
| 3 |
370-1417 |
207MB Disk Drive, Conner CP30200 |
| 3 |
370-1392 |
424MB Disk Drive, Seagate ST1480N |
| 3 |
370-1684 |
535MB Disk Drive, Conner CP30540 |
| 3 |
370-1843 |
535MB Disk Drive, Seagate ST5660N |
| 3 |
370-1546 |
1.05GB Disk Drive, Seagate ST11200N |
| 3 |
370-1710 |
1.05GB Disk Drive, Seagate ST31200N |
| 3 |
370-1963 |
1.05GB Disk Drive, Conner CFP1080S |
| 4 |
530-1678 |
Internal SCSI Cable |
| 5 |
340-1214 |
Front Foot |
| 6 |
340-1451 |
Left Rear Foot |
| 6 |
340-1450 |
Rear Foot Pad |
| 7 |
501-1887 |
I/O PCB (obsolete) |
| 7 |
501-2198 |
I/O PCB (obsolete) |
| 7 |
501-2269 |
I/O PCB |
8
-
- |
540-2260
540-2233
340-1447 |
Speaker Assembly
 Speaker and LED
Mounting Bracket |
| 9 |
530-1643 |
Internal Floppy Cable |
| 10 |
370-1419 |
3.5" Floppy Disk Drive, Triple Density |
11
- |
340-2594
240-1141 |
Peripheral Mounting Bracket 340-2594-01
#6-32 x 1/4" Screw |
11
-
- |
340-2594
240-2145
250-1199 |
Peripheral Mounting Bracket 340-2594-02 1
#6-32 Shoulder Screw
Grommet |
| NS |
240-1951 |
Jackscrew, Slotted, #4-40 / 3/16 |
| NS |
240-1961 |
SCSI Connector Screw, #4-40 |
| NS |
260-3059 |
Sun Logo |
| NS |
260-6129 |
SPARCstation LX Nameplate |
| NS |
260-7939 |
SPARCstation ZX Nameplate |
| NS |
330-1437 |
ISDN Plug |
| NS |
340-1456 |
Right Rear Foot |
| NS |
330-1606 |
Floppy Filler Panel |
| NS |
330-1455 |
Vertical Support |
| NS |
330-1458 |
Horizontal Support |
| NS |
501-5370 |
Floppy Interface Board |
| NS |
540-2220 |
Speakerbox Assembly |
| NS |
540-1982 |
Lockbox Assembly |
|
801-2176 |
SPARCclassic/SPARCstation LX Service Manual |
