SPARCstorage [tm] Array Model 219 RSM [tm]

6514 6515 6516
RSM 219 Tray
3 9.1GB Disks
7200 RPM
RSM 219 Tray
7 9.1GB Disks
7200 RPM
9.1GB Disk
7200 RPM
w/o RSM 219 Tray

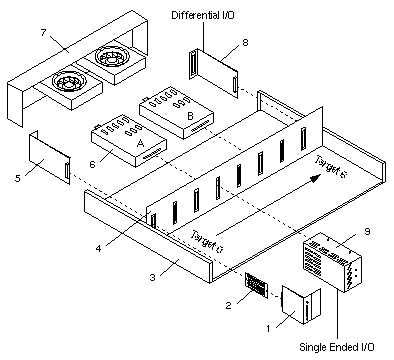

CODE PART # DESCRIPTION



-

1
2
3
4
370-2194
370-2955
540-3085
230-1545
370-2198
None
None
None
None
Chassis with Power Modules and WD2S Card
Chassis with Power Modules and WD2S Card
Chassis, Power Modules, Dampers, and WD2S Card
Vibration Dampers (×28)
Chassis FRU
Operator Panel
Operator Panel Cable
Chassis
Centerplane
5 370-2195 Environmental Sensor Card
6
6
300-1311
300-1328
200 Watt Power Supply Modules A and B
200 Watt Power Supply Modules A and B
7 370-2197 Fan Assembly
8
8
370-2196
370-3375
WD2S Single-Ended to Differential Interface Card
WD2S Single-Ended to Differential Interface Card
9
-
-
-
540-2942
370-2304
370-2369
370-2370
9.1GB 7200 RPM Disk Drive Assembly/FRU
Disk Drive Enclosure
9.1GB Disk Drive, Seagate ST19171WC
9.1GB Disk Drive, Fujitsu M2949
NS 180-1189 230V AC Power Cord, IEC-320 to NEMA 6-15
NS 180-1190 240V AC Power Cord, IEC-320 to Reverse IEC-320
NS 250-1305 RSM Tray EMI Shield (required for EMI reduction)
NS 340-3627 Shipping Bracket
NS 530-1351 10A/250V AC Power Cord, IEC-320-c13 to NEMA 6-15p, 2M
NS 530-1343 240V AC Power Cord, IEC-320 to Reverse IEC-320
NS 530-2197 AC Power Cord, AMP Mate-N-Lok to IEC-320
NS 530-2264 AC Power Cord, AMP Mate-N-Lok to Y IEC-320
NS 565-1421 Damper Kit with 35× 230-1545 Dampers
NS
-
370-2343
565-1478
Rack Mount Tray
Front Bracket 250-1237 and Rear Bracket 250-1238

802-5062 SPARCstorage RSM Installation and Service
