SS10 / SS10SX
Options 116 / 164

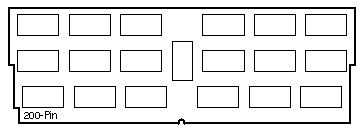

| 501-1785 |
501-2273 |
501-1930 |
16MB 5.0V ECC
80ns DIMM |
16MB 5.0V ECC
80ns DIMM |
64MB 5.0V ECC
80ns DIMM |
S10 and SS10SX Memory Map
| SOCKET |
DIMM * |
DIMM ** |
BANK |
ADDRESS RANGE |
| J0305 |
DIMM 7 |
DIMM 7 |
Bank 7 |
1c000000 - 1fffffff |
| J0304 |
DIMM 2 |
DIMM 3 |
Bank 3 |
0c000000 - 0fffffff |
| J0303 |
DIMM 5 |
DIMM 6 |
Bank 6 |
18000000 - 1bffffff |
| J0302 |
DIMM 4 |
DIMM 2 |
Bank 2 |
08000000 - 0bffffff |
| J0301 |
DIMM 6 |
DIMM 5 |
Bank 5 |
14000000 - 17ffffff |
| J0203 |
DIMM 3 |
DIMM 1 |
Bank 1 |
04000000 - 07ffffff |
| J0202 |
DIMM 8 |
DIMM 4 |
Bank 4 |
10000000 - 13ffffff |
| J0201 |
DIMM 1 |
DIMM 0 |
Bank 0 |
00000000 - 03ffffff |
|
* This installation sequence does not match the bank order.
* This installation sequence was selected for optimum airflow.
* SS10 DSIMM Installation,
 800-6531 and
801-5014.
* SS10 Service Manual,
801-6358 and
801-6399.
** This installation sequence matches the bank order.
** SS10SX System Configuration Guide,
801-5498.
** SS10SX and SS20 System Configuration Guide,
801-7287.
|
Power
| Active |
2.59 Amps @ +5Vdc
12.98 Watts |
| Standby |
0.075 Amps @ +5Vdc for 0.36 Watts
0.38 Watts |
Notes
- Install the highest capacity DIMM in Slot 0 under Solaris 1.x.
- The minimum memory requirement is one DIMM in Bank 0.
- Use the sxconfig (1M) command to configure contiguous memory.
Options 116 / 164
| 501-2479 |
501-2480 |
16MB 5.0V ECC
60ns DIMM |
64MB 5.0V ECC
60ns DIMM |
SS10 and SS10SX Memory Map
| SOCKET |
DIMM * |
DIMM ** |
BANK |
ADDRESS RANGE |
| J0305 |
DIMM 7 |
DIMM 7 |
Bank 7 |
1c000000 - 1fffffff |
| J0304 |
DIMM 2 |
DIMM 3 |
Bank 3 |
0c000000 - 0fffffff |
| J0303 |
DIMM 5 |
DIMM 6 |
Bank 6 |
18000000 - 1bffffff |
| J0302 |
DIMM 4 |
DIMM 2 |
Bank 2 |
08000000 - 0bffffff |
| J0301 |
DIMM 6 |
DIMM 5 |
Bank 5 |
14000000 - 17ffffff |
| J0203 |
DIMM 3 |
DIMM 1 |
Bank 1 |
04000000 - 07ffffff |
| J0202 |
DIMM 8 |
DIMM 4 |
Bank 4 |
10000000 - 13ffffff |
| J0201 |
DIMM 1 |
DIMM 0 |
Bank 0 |
00000000 - 03ffffff |
|
* This installation sequence does not match the bank order.
* This installation sequence was selected for optimum airflow.
* SS10 DSIMM Installation,
800-6531 and
801-5014.
* SS10 Service Manual,
801-6358 and
801-6399.
** This installation sequence matches the bank order.
** SS10SX System Configuration Guide,
801-5498.
** SS10SX and SS20 System Configuration Guide,
801-7287.
|
Power
| Active |
2.59 Amps @ +5Vdc
12.98 Watts |
| Standby |
0.075 Amps @ +5Vdc for 0.36 Watts
0.38 Watts |
Notes
- Install the highest capacity DIMM in Slot 0 under Solaris 1.x.
- The minimum memory requirement is one DIMM in Bank 0.
- Use the sxconfig (1M) command to configure contiguous memory.
|
