GT Graphics Subsystem
Sun-4/75 / SS10

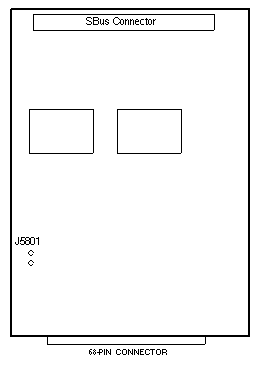

SBus Adapter
501-1693
|
Jumper J5801
|
| PINS |
SETTING |
DESCRIPTION |
| 1-2 |
Out |
Ground Test Points |
|

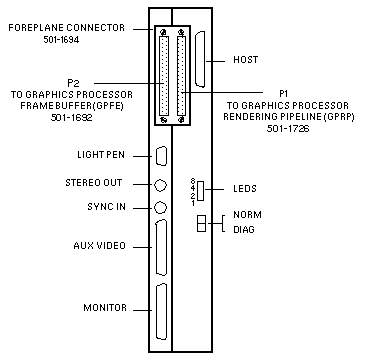

GT Graphics Subsystem
| 501-1624 |
501-1692 |
501-1694 |
501-1726 |
| Frame Buffer |
GPFE |
3 Board Set |
GPRP |
UNIX ID: /dev/gt0
Notes
- Install the frame buffer in Slot 1 of the GT Graphics Tower.
- Install the GPRP and GPFE in Slot 2 of the GT Graphics Tower.
- The GT board set is not supported in the Sun-3/110, Sun-3/140,
Sun-3/150, Sun-4/110, Sun-4/150, Sun-4/310, or Sun-4/350 chassis.
- Backplane Jumpers BG3 and IACK are not used.
- Standoff 330-1372 and Screw 230-1261 fasten the GPFE to the GPRP.
- Screw 240-1584-01 fastens the GPFE to the GPRP rear panel.
- Use cable 530-1684 to connect the SBus adapter to the GPFE.
- The final software release for the GT Graphics Subsystem is Solaris 2.4.
Reference
Hardware Installation Manual for the GT Graphics Subsystem, 800-5258.

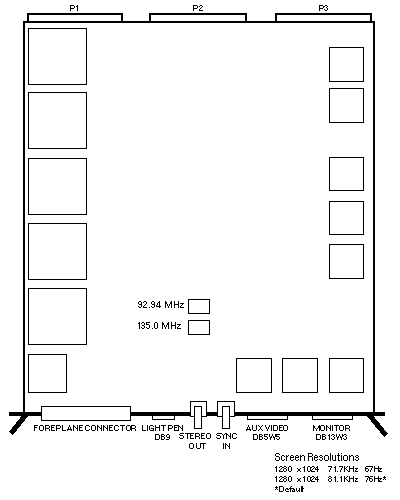

GT Graphics Subsystem
Frame Buffer
501-1624
GT Graphics Subsystem
Graphics Processor Front End (GPFE)
501-1692
Note
- SunPC 4.0 requires GPFE 501-1692-09.
GT Graphics Subsystem
Graphics Processor Rendering Pipeline (GPRP)
501-1726
Jumper Settings

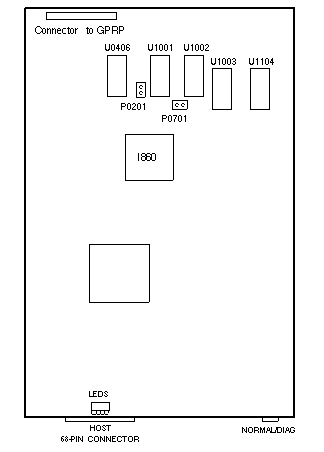

501-1692
Graphic Processor Front End (GPFE)
|
Jumper P0201
|
| PIN |
SETTING |
DESCRIPTION |
| 1-2 |
In |
Enable Cache |
|
|
Jumper P0701
|
| PIN |
SETTING |
DESCRIPTION |
| 1-2 |
In |
Enable I860 |
|

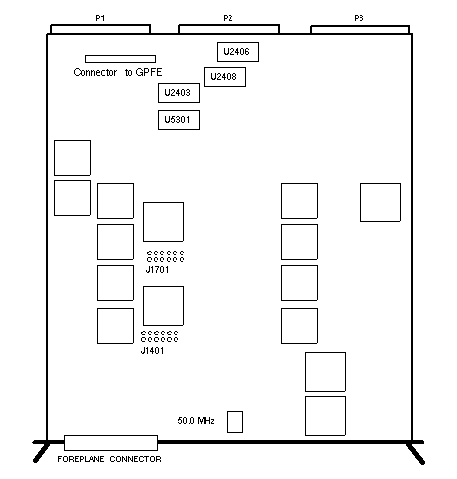

501-1726
Graphic Processor Rendering Pipeline (GPRP)
|
Jumper J1401 and J1701
|
| PIN |
SETTING |
DESCRIPTION |
| 1-2 |
Out |
Manufacturing ICT |
| 3-4 |
Out |
Manufacturing ICT |
| 5-6 |
Out |
Manufacturing ICT |
| 7-8 |
Out |
Manufacturing ICT |
| 9-10 |
Out |
Manufacturing ICT |
| 11-12 |
Out |
Manufacturing ICT |
|
|
