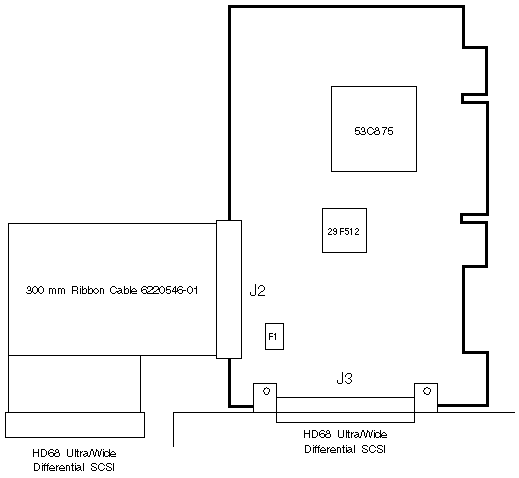

Differential Ultra/Wide SCSI Controller

StorEdge L1000

370-3521
Symbios SYM8751D
3.3V/5V 32-Bit 33MHz PCI

Notes

  1. The ribbon cable provides an external HD68 SCSI connector above the Power Supply at the rear of the StorEdge L1000.
  2. The ribbon cable does not have a Sun part number.

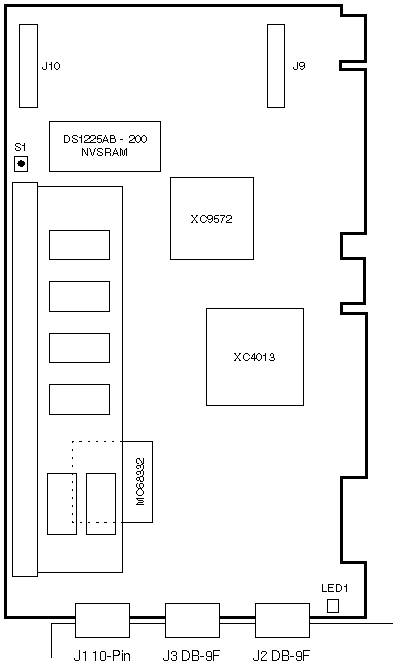

Robotics Controller Board

StorEdge L1000

370-3525
Controller w Memory ATL 6220495
Memory Module ATL 6220340

Notes

  1. The Dallas NVSRAM is not socketed.
  2. Connector J1 is covered by a 10-Pin plug.
  3. The Memory Module does not have a Sun part number.

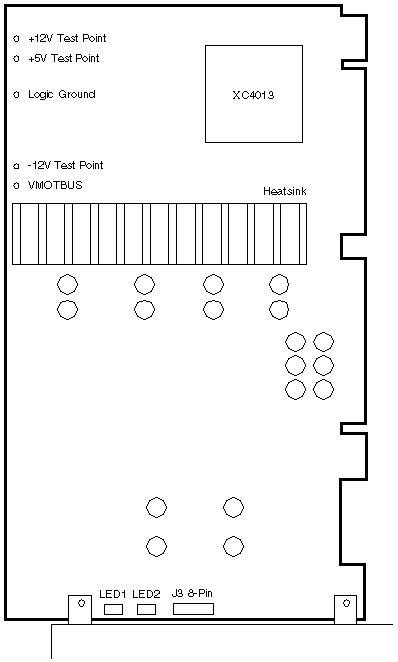

Actuator Driver Board

StorEdge L1000

370-3526
ATL 6220310

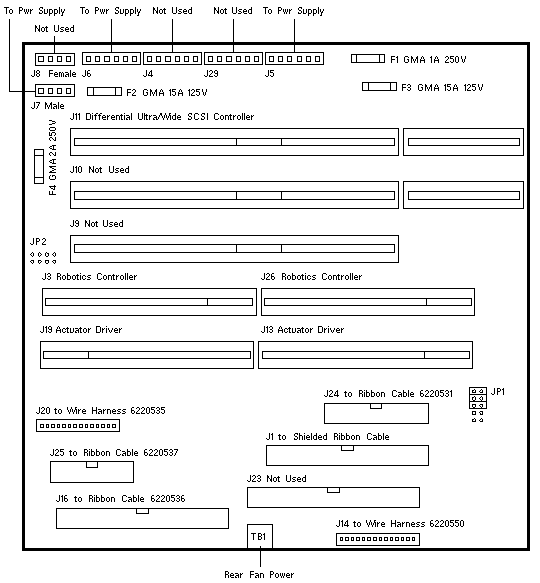

5-Slot Backplane

StorEdge L1000

370-3532
ATL 6220365
