Netra[tm] ft 1800 Server

Note

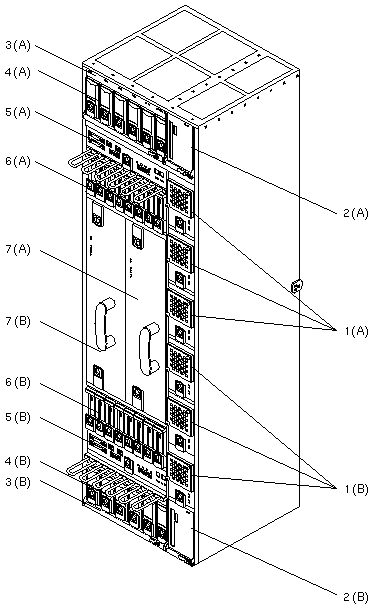

(A) indicates Side A and (B) indicates Side B of the fault tolerant system.

CODE	PART #	DESCRIPTION
1 1	f300-1408 [F] f300-1478	695W DC Input Power Supply 642W AC Input Power Supply
2	f540-4016 [F] f540-4017 [F] f540-4460	RMM Tray + CD-ROM + DAT Tape + Front Panel RMM Tray + CD-ROM + Front Panel Empty RMM Tray
3	f540-3885 [F]	Disk Drive Chassis Tray
4 4 4	540-3957 f540-4004 [F] f540-4077 [F]	Disk Drive Blanking Module 9GB 7200 RPM Disk Drive Assembly 18GB 10000 RPM Disk Drive Assembly
5	f540-3926 [F]	Console/Alarm/Fan (CAF) Module
6	540-3929 f540-3980 [F] f540-3981 [F] f540-3982 [F] f540-3983 [F] f540-3984 [F] f540-3992 f540-4319 [F] f540-4094 [F]	PCI Blanking Module PCI Carrier with Dual Differential SCSI PCI Carrier with SunFast Ethernet PCI Carrier Assembly with HSI/P PCI Carrier with SAI/P PCI Carrier with ATM155/MFiber Empty PCI Carrier (obsolete) Empty PCI Carrier PCI Carrier with QFE/P
7	f540-4007 [F] f540-4008 [F] f540-4009 [F] f540-4336 [F] f540-4224 [F]	CPUSET-1P-256MB-300MHZ CPUSET-2P-512MB-300MHZ CPUSET-4P-4GB-300MHZ CPUSET-1P-1GB-300MHZ CPUSET-4P-4GB-400MHZ
NS	240-1451	M12 Hex Wrench (included for unpacking)
NS	240-1452	#2 Phillips Screwdriver (included for unpacking)
NS	250-1398	Large Air Filter for Assembly 540-3527 (obsolete)
NS	250-1399	Small Air Filter for Assembly 540-3528 (obsolete)
NS	250-1395	Power Supply Air Filter
NS	340-5536	Motherboard Removal Tool (×3 included)
NS	f370-3842 [F]	DC Input Connector and Filter Assembly
NS	f540-3485 [F]	Motherboard B
NS	f540-3509 [F]	Motherboard A
NS	f540-3650	DC Power Inlet Assembly (early production) - not released
NS	f540-4376 [F]	Field Change Order A0157 EMI Kit (systems built before August 1999)
NS	f540-3497 [F]	Power Supply and Disk Drive Ejector FRU
NS	f540-4300	CAF Ejector FRU
NS	f540-4301 [F]	CAF Ejector FRU
NS	f540-4353	CPUset Ejector FRU
NS	595-5080	19" Rack Mount Kit, Option 6938 (obsolete)
NS	595-5417	19" Rack Mount Kit, Option 6974
NS	595-5081	23" Rack Mount Kit, Option 6939 (obsolete)
NS	595-5605	23" Rack Mount Kit, Option 6976
NS	595-5082	24" Rack Mount Kit, Option 6940
NS	595-5083	600 mm Rack Mount Kit, Option 6941
NS	540-5048 [F] 340-5639 340-5661 340-5662	Air Filter Kit Power Supply Filter (×6) Large Air Filter for Filter Assembly 540-3527 (×2) Small Air Filter for Filter Assembly 540-3528 (×1)
NS	595-5665	HSI/P Cable Mounting Kit, Option 6998
NS	595-5666	SAI/P Cable Mounting Kit, Option 6999
NS	Not Supplied	Thomas & Betts Two-Hole Lug 54202-UB
NS	Not Supplied	Thomas & Betts TBM5-S Crimp Tool
-	805-4529	Netra ft 1800 Users Guide
