Netra CP3260

Netra CP3260 Codename: Monza

Serial Number Location Located on the board - board needs to be removed to get access to the serial number.


371-3025 371-3026 371-4360 371-4361
2GB DIMM / 16GB Option
XCP3260-MEM-16GB-Z		 1GB DIMM
No Option		 2BG DIMM
No Option		 4GB DIMM
XCP3260-MEM-32GB-Z
501-7836 501-7837
0MB FRU
FAB 270-7752-03
1.17GHz 8-Core
UltraSPARC T2		 0MB FRU
FAB 270-7752-03
1.17GHz 6-Core
UltraSPARC T2
511-1366 511-1367
0MB FRU
FAB 270-7752-06
1.17GHz 8-Core
UltraSPARC T2		 0MB FRU
FAB 270-7752-06
1.17GHz 6-Core
UltraSPARC T2
501-7838 501-7839 501-7909 501-7841
16GB   1.17GHz 8-Core
Rev 52:
System Board 501-7836
8 × 2GB DIMM 371-3025
Rev 53:
System Board 511-1366
8 × 2GB DIMM 371-4360
CP3260C-8C-16GB-Z		 8GB   1.17GHz 6-Core
Rev 52:
System Board 501-7837
8 × 1GB DIMM 371-3026
Rev 53:
System Board 511-1367
8 × 1GB DIMM 371-3026
CP3260C-6C-8GB-Z		 8GB   1.17GHz 8-Core
Rev 52:
System Board 501-7836
8 × 1GB DIMM 371-3026
Rev 53:
System Board 511-1366
8 × 1GB DIMM 371-3026
CP3260C-8C-8GB-Z		 32GB   1.17GHz 8-Core
System Board 511-1366
8 × 1GB DIMM 371-4361
CP3260C-8C-32GB-Z



Table Legend
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system

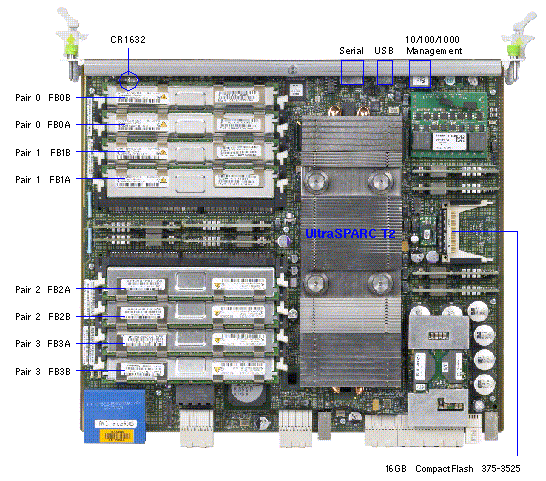

CP3260 Boards
(UltraSPARC T2 CPU)

Codename: Monza

PART # DESCRIPTION
371-3026 [C] 1GB FBDIMM
371-4360 [C] 2GB FBDIMM
594-4954
371-3025 [C] 		16GB Memory Option XCP3260-MEM-16GB-Z
2GB FBDIMM
594-4955
371-4361 [C] 		32GB Memory Option XCP3260-MEM-32GB-Z
4GB FBDIMM
594-4678
375-3525 [C]
 Compact Flash Option XCP3000-CF-16GB-Z
16GB CompactFlash
System Boards based on FAB 270-7752-03
594-4673
501-7838
371-3025 [C]
501-7836 [C]
501-7752
 Option CP3260C-8C-16GB-Z
16GB 1× 1.17, 8-Core System Board
2GB FBDIMM
1.17GHz 8-Core 0GB System Board
0GHz/0GB System Board
594-4674
501-7839
371-3026 [C]
501-7837 [C]
501-7752
 Option CP3260C-6C-8GB-Z
8GB 1× 1.17, 6-Core System Board
1GB FBDIMM
1.17GHz 6-Core 0GB System Board
0GHz/0GB System Board
594-4736
501-7909
371-3026 [C]
501-7836 [C]
501-7752
 Option CP3260C-8C-8GB-Z
8GB 1× 1.17, 8-Core System Board
1GB FBDIMM
1.17GHz 8-Core 0GB System Board
0GHz/0GB System Board
System Boards based on FAB 270-7752-06
594-4673
501-7838
371-4360 [C]
511-1366 [C]
511-1369 		Option CP3260C-8C-16GB-Z 1
16GB 1× 1.17, 8-Core System Board 1
2GB FBDIMM
1.17GHz 8-Core 0GB BGA CP3260 System Board
0GHz/0GB CP3260 BGA System Board
594-4674
501-7839
371-3026 [C]
511-1367 [C]
511-1369 		Option CP3260C-6C-8GB-Z 2
8GB 1× 1.17, 6-Core System Board 2
1GB FBDIMM
1.17GHz 6-Core 0GB BGA CP3260 System Board
0GHz/0GB CP3260 BGA System Board
594-4736
501-7909
371-3026 [C]
511-1366 [C]
511-1369 		Option CP3260C-8C-8GB-Z 3
1.17GHz 8-Core 8GB CP3260 System Board 3
1GB FBDIMM
1.17GHz 8-Core 0GB BGA CP3260 System Board
0GHz/0GB CP3260 BGA System Board
594-4675
501-7841
371-4361 [C]
511-1366 [C]
511-1369 		Option CP3260C-8C-32GB-Z
1.17GHz 8-Core 8GB CP3260 System Board
4GB FBDIMM
1.17GHz 8-Core 0GB BGA CP3260 System Board
0GHz/0GB CP3260 BGA System Board
Netra CP3260 Board Documentation
1 This BOM shows 594-4673-01 Rev 52 and 501-7838-01 Rev 53 changes. (WO_40296)
2 This BOM shows 594-4674-01 Rev 52 and 501-7839-01 Rev 53 changes. (WO_40296)
3 This BOM shows 594-4736-01 Rev 53 and 501-7909-01 Rev 53 changes. (WO_40296)

CP3260 Disk Drive Rear Transition Card Options

PART # DESCRIPTION
594-5117
375-3543 [C]
373-0224 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD-Z
4GB Very Low Profile DDR2 DIMM
Disk Drive Rear Transition Card
594-4758
375-3541-02
375-3543 [C]
540-7152 [C]
541-0605 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD1-Z [S]
Disk Drive Rear Transition Card with One Drive
Disk Drive Rear Transition Card
146GB 10000 RPM SAS NEBS Disk Drive Assy/FRU
Disk Drive Filler Panel
594-4758 [C]
375-3541-03
375-3543 [C]
540-7851 [C]
350-1286
540-7152
540-7847 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD1-Z [S]
Disk Drive Rear Transition Card with One Drive
Disk Drive Rear Transition Card
146GB 10000 RPM SAS NEBS Disk Drive Assy/FRU
Ground Insulator Kit (installed on 540-7152)
146GB 10000 RPM SAS NEBS Disk Drive Assy/FRU
Disk Drive Filler Panel
594-4759
375-3542-02
375-3543 [C]
540-7152 [C] 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD2-Z [S]
Disk Drive Rear Transition Card with Two Drives
Disk Drive Rear Transition Card
146GB 10000 RPM SAS NEBS Disk Drive Assy/FRU
594-4759
375-3542-03
375-3543 [C]
540-7851 [C]
350-1286
540-7152 [C] 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD2-Z [S]
Disk Drive Rear Transition Card with Two Drives
Disk Drive Rear Transition Card
146GB 10000 RPM SAS NEBS Disk Drive Assy/FRU
Ground Insulator Kit (installed on 540-7152)
146GB 10000 RPM SAS NEBS Disk Drive Assy
594-5838
540-7847 		XCP32X0-RTM-HDCORZ
Disk Drive Filler Panel

Notes

  1. The minimum operating system is Solaris 10 8/07.
  2. Eight DIMMs are required. Mixing memory sizes is not supported.
  3. 501-7752-07 was released in October 2007 without a battery installed.
  4. Battery 150-2850 was added to 501-7752-15 in September 2009. (WO_41223)
  5. 511-1369-01 was released in December 2008 without a battery installed.
  6. Battery 150-2850 was added to 511-1369-03 in September 2009. (WO_41223)
  7. Use of BR1632 / CR1632 coin cell battery 150-2850 is optional.

References

  1. Netra CP3260 Product Notes, 820-0455.
  2. Netra CP3260 User's Guide, 820-0457.
