Netra CP3250

Netra CP3250 Codename: Kimi

Serial Number Location Located on the board - board needs to be removed to get access to the serial number.


371-3031 371-3032 375-3597 375-3662
2GB DIMM
No Option		 4GB DIMM
XCP3200-RAM-8GBK		 0MB FRU R0D FRU
2.13GHz 4-Core
2× Xeon L5408		 0MB FRU R0E FRU
2.13GHz 4-Core
2× Xeon L5408
511-1158 511-1159 511-1160
8GB 2.13GHz 4-Core
4× 2GB DIMM 371-3031
2× Xeon L5408
CP3250-2130H-8GB		 16GB 2.13GHz 4-Core
4× 4GB DIMM 371-3032
2× Xeon L5408
CP3250-2130H-16GB		 24GB 2.13GHz 4-Core
6× 4GB DIMM 371-3032
2× Xeon L5408
CP3250-2130H-24GB



Table Legend
[C] = Customer Replaceable Unit (CRU)

CP3250 Boards
(Intel Xeon L5408-LV ATCA)

PART # DESCRIPTION
371-3031 [C] 2GB Very Low Profile DDR2 DIMM
594-4965
371-3032 [C] 		16GB Memory Option CP3220-MEM-16GB-Z
4GB Very Low Profile DDR2 DIMM
594-4678
375-3525 [C] 		CompactFlash Option XCP3000-CF-16GB-Z
16GB CompactFlash

CP3250 Configured Board Options

PART # DESCRIPTION
594-5573
511-1158
371-3031 [C]
375-3597 [C]
375-3662 [C]
371-3953 [C]
373-0396 		CP3250 Option CP3250-2130H-8G
2.13GHz 4-Core 8GB CP3250 System Board
2GB Very Low Profile DDR2 DIMM
2.13GHz 4-Core CP3250 System Board
2.13GHz 4-Core CP3250 System Board
2.13GHz 4-Core Intel L5408
0GHz/0GB CP3250 System Board
594-5574
511-1159
371-3032 [C]
375-3597 [C]
375-3662 [C]
371-3953 [C]
373-0396 		CP3250 Option CP3250-2130H-16GB
2.13GHz 4-Core 16GB CP3250 System Board
4GB Very Low Profile DDR2 DIMM
2.13GHz 4-Core CP3250 System Board
2.13GHz 4-Core CP3250 System Board
2.13GHz 4-Core Intel L5408
0GHz/0GB CP3250 System Board
594-5575
511-1160
371-3032 [C]
375-3597 [C]
375-3662 [C]
371-3953 [C]
373-0396 		CP3250 Option CP3250-2130H-24GB
2.13GHz 4-Core 24GB CP3250 System Board
4GB Very Low Profile DDR2 DIMM
2.13GHz 4-Core CP3250 System Board
2.13GHz 4-Core CP3250 System Board
2.13GHz 4-Core Intel L5408
0GHz/0GB CP3250 System Board
Netra CP 3250 Board Documentation

Notes

  1. The minimum operating system is Solaris 10 5/08.

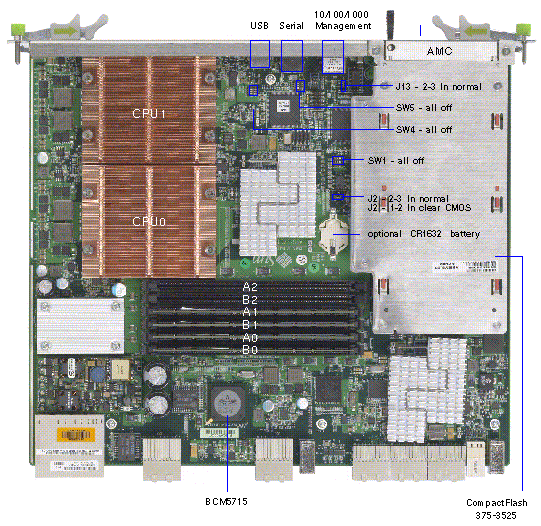

  2. Install dimms in matched pairs beginning with A0/B0, then A1/B1, and A2/B2.
  3. System Board 375-3662 replaced 375-3597 in July 2009. (WO_41687)

References

  1. Netra CP3250 Product Notes, 820-5194.
  2. Netra CP3250 User's Guide, 820-5195.
