Netra CP3220

Netra CP3220 Codename: Alonso (Andretti 2)

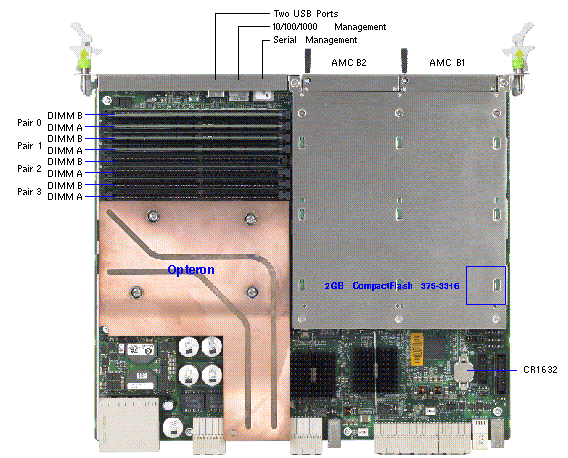

Serial Number Location Located on the board - board needs to be removed to get access to the serial number.


371-3031 371-3032 371-4409 371-4440
2GB DIMM
No Option		 4GB DIMM / 16GB Option
XCP3220-MEM-16GB		 2GB DIMM
No Option		 4GB DIMM
XCP3220-MEM-16-QZ
375-3534 375-3526
0MB FRU
2.2GHz Dual-Core
1x Opteron 1214HE		 8GB 2.2GHz Dual-Core
4x 2GB DIMM 371-3031
CP3220X-2200B-8GB
375-3527 375-3528 375-3529
16GB 2.2GHz Dual-Core
8x 2GB DIMM 371-3031
CP3220X-2200B-16GB		 16GB 2.2GHz Dual-Core
4x 4GB DIMM 371-3032
CP3220X-2200B-16-4		 32GB 2.2GHz Dual-Core
8x 4GB DIMM 371-3032
CP3220X-2200B-32GB
375-3535 375-3530
0MB FRU
1.8GHz Quad-Core Opteron
OE13HFFML4BGHE		 8GB 1.8GHz Quad-Core
4x 2GB DIMM 371-4409
CP3220X-1800D-8GB
375-3531 375-3532 375-3533
16GB 1.8GHz Quad-Core
8x 2GB DIMM 371-4409
CP3220X-1800D-16GB		 16GB 1.8GHz Quad-Core
4x 4GB DIMM 371-4440
CP3220X-1800D-16-4		 32GB 1.8GHz Quad-Core
8x 4GB DIMM 371-4440
CP3220X-1800D-32GB



Table Legend
[C] = Customer Replaceable Unit (CRU)
[S] = Supported, but can no longer be ordered with this system

PART # DESCRIPTION
371-3031 [C] 2GB Very Low Profile DDR2 DIMM
594-4965
371-3032 [C] 		16GB Memory Option XCP3220-MEM-16GB-Z
4GB Very Low Profile DDR2 DIMM
594-1709
375-3316 		2GB Compact Flash Option XCP3000-CF-2GB
2GB Compact Flash
594-5811
371-4409 [C]		 No Associated Option (Released by WO_39656)
2GB Very Low Profile DDR2 DIMM
594-5823
371-4440 [C]		 Option XCP3220-MEM-16-QZ
4GB Very Low Profile DDR2 DIMM
594-5117
375-3543 [C]
373-0224 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD-Z
Disk Drive Rear Transition Card
Disk Drive Rear Transition Card
594-4758
375-3541-02
375-3543 [C]
540-7152 [C]
541-0605 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD1-Z [S]
Disk Drive Rear Transition Card with One Drive
Disk Drive Rear Transition Card
146GB 10000 RPM SAS NEBS Disk Drive Assy/FRU
Disk Drive Filler Panel
594-4758
375-3541-03
375-3543 [C]
540-7851 [C]
350-1286
540-7152 [C]
540-7847 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD1-Z [S]
Disk Drive Rear Transition Card with One Drive
Disk Drive Rear Transition Card
146GB 10000 RPM SAS NEBS Disk Drive Assy/FRU
Ground Insulator Kit (installed on 540-7152)
146GB 10000 RPM SAS NEBS Disk Drive Assy/FRU
Disk Drive Filler Panel
594-4759
375-3542-02
375-3543 [C]
540-7152 [C] 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD2-Z [S]
Disk Drive Rear Transition Card with Two Drives
Disk Drive Rear Transition Card
146GB 10000 RPM SAS NEBS Disk Drive Assy/FRU
594-4759
375-3542-03
375-3543 [C]
540-7851 [C]
380-1286
540-7152 [C] 		Disk Drive Rear Transition Card Option XCP32X0-RTM-HD2-Z [S]
Disk Drive Rear Transition Card with Two Drives
Disk Drive Rear Transition Card
146GB 10000 RPM SAS NEBS Disk Drive Assy/FRU
Ground Insulator Kit (installed on 540-7152)
146GB 10000 RPM SAS NEBS Disk Drive Assy
594-5838
540-7847 		XCP32X0-RTM-HDCORZ
Disk Drive Filler Panel

CP3220 Configured Board Options

PART # DESCRIPTION
594-4689
375-3526
371-3031 [C]
375-3534 [C]
371-2989
371-3429
373-0202 		Option CP3220X-2200B-8GB
2.2GHz Dual-Core 8GB CP3220 System Board
2GB Very Low Profile DDR2 DIMMY
2.2GHz Dual-Core Opteron 1214HE CP3220
2.2GHz Dual-Core Opteron 1214HE
Heat Sink
System Board w/o Processor
594-4690
375-3527
371-3031 [C]
375-3534 [C]
371-2989
371-3429
373-0202 		Option CP3220X-2200B-16GB
2.2GHz Dual-Core 16GB CP3220 System Board
2GB Very Low Profile DDR2 DIMM
2.2GHz Dual-Core Opteron 1214HE CP3220
2.2GHz Dual-Core Opteron 1214HE
Heat Sink
System Board w/o Processor
594-4691
375-3528
371-3032 [C]
375-3534 [C]
371-2989
371-3429
373-0202 		Option CP3220X-2200B-16-4
2.2GHz Dual-Core 16GB CP3220 System Board
4GB Very Low Profile DDR2 DIMM
2.2GHz Dual-Core Opteron 1214HE CP3220
2.2GHz Dual-Core Opteron 1214HE
Heat Sink
System Board w/o Processor
594-4692
375-3529
371-3032 [C]
375-3534 [C]
371-2989
371-3429
373-0202 		Option CP3220X-2200B-32GB
2.2GHz Dual-Core 32GB CP3220 System Board
4GB Very Low Profile DDR2 DIMM
2.2GHz Dual-Core Opteron 1214HE CP3220
2.2GHz Dual-Core Opteron 1214HE
Heat sink
System Board w/o Processor
594-4693
375-3530
371-4409 [C]
375-3535 [C]
371-3323
371-3429
373-0202 		Option CP3220X-1800D-8G
1.8GHz Quad-Core 8GB CP3220 System Board
2GB Very Low Profile DDR2 DIMM
1.8GHz Quad-Core CP3220 FRU
1.8GHz Quad-Core Opteron CPU
Heat Sink
System Board w/o Processor
594-4694
375-3531
371-4409 [C]
375-3535 [C]
371-3323
371-3429
373-0202 		Option CP3220X-1800D-16GB
1.8GHz Quad-Core 16GB CP3220 System Board
2GB Very Low Profile DDR2 DIMM
1.8GHz Quad-Core CP3220 FRU
1.8GHz Quad-Core Opteron CPU
Heat Sink
System Board w/o Processor
594-4695
375-3532
371-4440 [C]
375-3535 [C]
371-3323
371-3429
373-0202 		Option CP3220X-1800D-16-4
1.8GHz Quad-Core 16GB CP3220 System Board
4GB Very Low Profile DDR2 DIMM
1.8GHz Quad-Core CP3220 FRU
1.8GHz Quad-Core Opteron CPU
Heat Sink
System Board w/o Processor
594-4696
375-3533
371-4440 [C]
375-3535 [C]
371-3323
371-3429
373-0202 		Option CP3220X-1800D-32GB
1.8GHz Quad-Core 32GB CP3220 System Board
4GB Very Low Profile DDR2 DIMM
1.8GHz Quad-Core CP3220 FRU
1.8GHz Quad-Core Opteron CPU
Heat Sink
System Board w/o Processor
Netra CP 3220 Board Documentation

Notes

  1. The minimum operating system is Solaris 10 8/07.
  2. Install matching DIMMs, two at a time, beginning with Pair 0.
  3. 4GB DIMM 371-3032 is not qualified on the Quad Core CP3220.
  4. The CP3220 bill of material does not include a battery.
  5. The CP3220 is shipped with BR1632 / CR1632 coin cell battery 150-2850.

References

  1. Netra CP3220 Product Notes, 820-1980.
  2. Netra CP3220 User's Guide, 820-1982.
