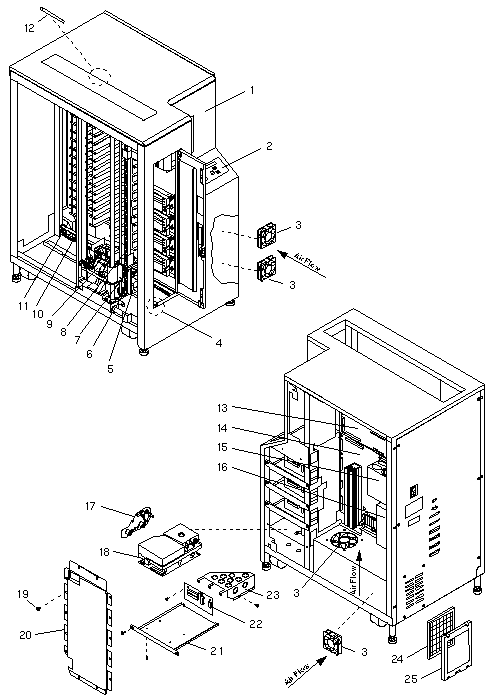

| CODE |
SUN PART# |
ATL PART# |
DESCRIPTION |
| 1 |
595-4164 |
6210090 |
ETL 4/1000 Assembly |
| 2 |
370-2849 |
6210435 |
Control Panel Assembly |
3
3 |
370-2862
370-3260 |
6210537
6211654 |
Fan Assembly
Fan Assembly (DLT7000 requirement) |
| 4 |
370-2859 |
6210516 |
Door Switch Assembly |
| 5 |
370-2858 |
6210515 |
X-Axis Confirmation Sensor |
| 6 |
370-2855 |
6210510 |
Y-Axis Stepper Motor Assembly |
| 7 |
370-2854 |
6210480 |
X-Axis Interconnect Board |
| 8 |
370-2864 |
0645083 |
Y-Axis Drive Belt |
| 9 |
370-2863 |
6210720 |
Extension Axis Assembly |
| 10 |
370-2864 |
0645083 |
X-Axis Drive Belt |
| 11 |
370-2856 |
6210511 |
X-Axis Stepper Motor Assembly |
| 12 |
370-2866 |
0385016 |
Flourescent Bulb |
| 13 |
370-2853 |
6210470 |
Robotic Controller Board |
| 14 |
370-2851 |
6210450 |
Actuator Driver Board |
| 15 |
300-1338 |
0355041 |
PC Logic Power Supply |
| 16 |
300-1339 |
0355038 |
Motor Power Supply |
| 17 |
370-2850 |
0815032 |
Stepper Motor Assembly |
| 18 |
370-2865 |
6210200 |
Differential DLT 4000 Tape Drive |
| 19 |
None |
Unknown |
#10-32 × 1/2" Screw with Washer |
| 20 |
None |
6210038 |
Tape Drive Bay EMI Cover |
| 21 |
None |
6211003 |
Tape Drive Shelf |
| 22 |
370-2852 |
6210464 |
Tape Drive Interface Board |
| 23 |
None |
6210509 |
Tape Drive Mounting Bracket |
| 24 |
None |
Unknown |
Air Filter, 7.5" × 6" |
| 25 |
None |
6211005 |
Air Filter Cover |
| NS |
370-2857 |
6210512 |
Load Port Door Lockout Solenoid |
| NS |
370-2860 |
6210518 |
Y-Axis Umbilical Cable |
| NS |
370-2861 |
6210520 |
X-Axis Umbilical Cable |
| SUN PART# |
ATL PART# |
DESCRIPTION |
| None |
6210526 |
Actuator Driver to Robotics Controller Cable |
| None |
6210558 |
Actuator Driver 48V Power Cable |
| None |
6210525 |
Control Panel Cable |
| None |
6210527 |
X-Axis Motor Drive Cable |
| None |
6210538 |
Fan Power Cable |
| None |
6210539 |
Internal 9-Pin RS-232 Cable |
| None |
6210564 |
DC "Y" Power Extension Cable |
| None |
6210561 |
DC Power Extension Cable |
| None |
6210565 |
68-Pin SCSI #1 Cable, 120 cm |
| None |
6210566 |
68-Pin SCSI #2 Cable, 60 cm |
| None |
6210567 |
68-Pin SCSI #3 Cable, 12 cm |
| None |
6210573 |
Miscellaneous Sensor Cable |
| None |
6210562 |
Tape Drive Interface 2 Cable |
| None |
6210563 |
Tape Drive Inport Solenoid Cable |
| None |
6210542 |
White AC Cable |
| None |
6210542 |
Black AC Cable |
| None |
0325004 |
AC Line Filter |
| None |
0455175 |
AC Power Switch |
| 150-1890 |
0415692 |
Differential SCSI Terminator |
| 370-2188 |
0525006 |
Data Cartridge |
| 370-2189 |
0525005 |
Cleaning Cartridge |
| 530-2383 |
0425033 |
External SCSI Cable, HD68 to HD68, 80 cm |
| 530-2352 |
0425034 |
External SCSI Cable, HD68 to HD68, 4M |
565-1395
None
None
None
704-5684
805-0210
875-1807
875-1808
875-1809
875-1810 |
6210160
6210151
0425003
6210150
6211266
None
6211222
6211221
6211223
6211224 |
Service and Training Kit
 Training Video
Serial Cable
Permatex 82324 Lubricant
Diagnostic and Manuals CD
Enterprise Tape Library 4/1000 Installation Guide for Sun Systems
Operators Guide
Planning and Installation Guide
Service Manual
Diagnostic Software Manual |
