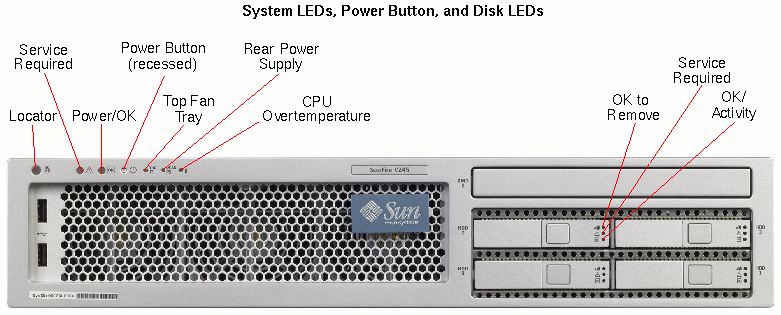

The left front of the Sun Fire V245 server contains six LED status indicators and a power button.
The right front of the server contains the four disk drives with their three LEDs.
| Indicator |
Color |
LED State
|
Meaning |
| Locator |
White |
On
|
This indicator is lit by Solaris command, Sun Management Center command, Advanced Lights Out Manager (ALOM)
or Locator button to help locate the system in a data center. |
|
Off
|
Indicator has no input as identified above. |
| Service Required |
Amber |
On
|
The server has detected a problem and requires the attention of service
personnel. |
|
Off
|
The server has no detected faults. |
| Power/OK |
Green |
On
|
This indicator blinks slowly, then quickly during startup. The Power/OK indicator lights continuously
when system power is on and the Solaris operating system is loaded and running. |
| Power Button |
n/a |
n/a
|
The power button is recessed to prevent accidentally turning the system on or off.
- If the operating system is running, pressing and releasing the power button initiates a
graceful software system shutdown.
- Pressing and holding in the power button for four seconds causes an immediate hardware shutdown.
- Caution - Whenever possible, use the graceful shutdown method. Forcing an immediate hardware
shutdown can cause hard drive corruption and loss of data.
|
| Top Fan Tray |
Amber |
On
|
This indicator identifies a fault in a fan tray. |
| Rear Power Supply |
Amber |
On
|
This indicator identifies a fault in a power supply. Look at the individual power supply status indicators (on the
back of server) to determine which power supply requires service. |
| CPU Overtemperature |
Amber |
On
|
This indicator identifies that a CPU has detected an overtemperature condition. Look for any fan failures, as
well as increased ambient air temperature around the server. |
| OK to Remove |
Blue |
On
|
This indicator identifies that a hard drive can be removed safely during a hot-plug operation. |
| Service Required |
Amber |
On
|
This indicator identifies when the system is running and the hard drive is faulty. |
| OK/Activity |
Green |
On
|
This indicator illuminates when data is being read from or written to the hard drives. |

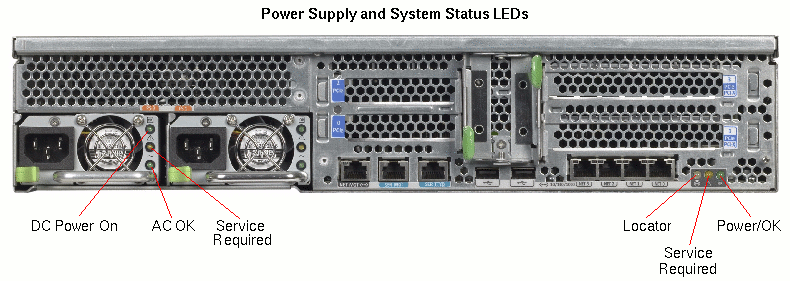

The left rear of the Sun Fire V245 server contains the two power supplies with three LED status indicators.
The right rear area of the server contains the three system status LEDs.
| Indicator |
Color |
LED State
|
Meaning |
| DC Power On |
Green |
On
|
This indicator is illuminated when the system is powered on and the power supply is operating normally. |
| Service Required |
Amber |
On
|
This indicator identifies a fault in the power supply. |
| AC OK |
Green |
On
|
This indicator is illuminated when the power supply is plugged in and AC power is available, regardless of the
system power state. |
| Locator |
White |
On
|
This indicator is lit by Solaris command, Sun Management Center command, Advanced Lights Out Manager (ALOM) or
Locator button to help locate the system in a data center. |
| Service Required |
Amber |
On
|
The server has detected a problem and requires the attention of service personnel. |
| Power/OK |
Green |
On
|
This indicator blinks slowly, then quickly during startup. The Power/OK indicator lights continuously when
system power is on and the Solaris operating system is loaded and running. |
