Dip Switches

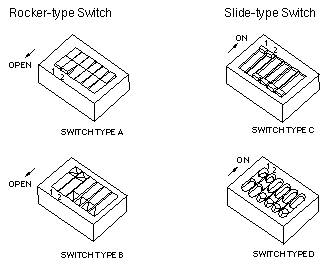

Rocker and Slide type DIP Switches are used in Sun products. Turn on a
Rocker-type switch by pressing down the end of the switch furthest from the
OPEN lettering on the switch. Turn on a Slide-type switch by sliding the
switch in the direction of the arrow on the switch. Switches 1 and 2 are
shown in the ON position in these illustrations.
Jumpers

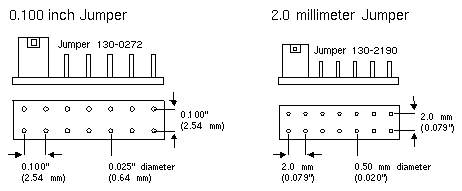

Jumpers are used to connect two pins of a Terminal Strip. Two sizes of
jumpers are used: 0.100 inch and 2.0 millimeter.
|
