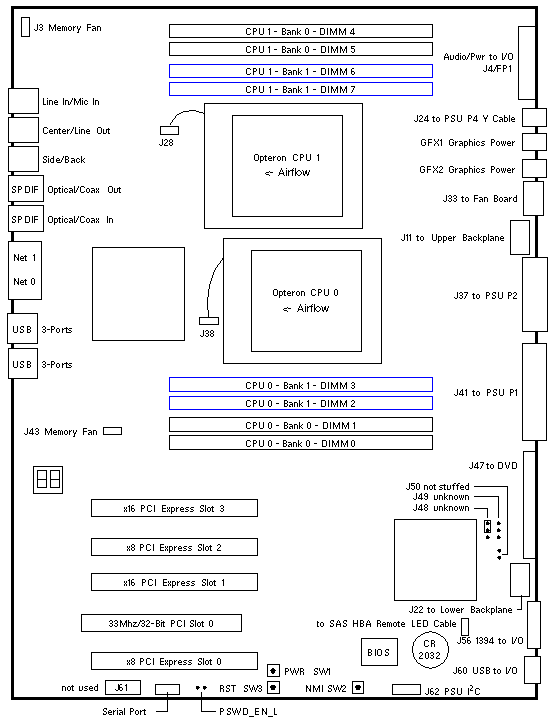

Ultra 40 M2 (A83)

375-3476
0MB FRU w/o CPU
with Mounting Tray

Ultra 40 M2 Codename: Stuttgart

Notes

  1. The minimum Solaris operating system is Solaris 10 1/06 x64.
  2. Install the Fan/Heatsink with the Air Flow arrow facing the rear of the chassis.

Memory Notes

  1. Install the first CPU 0 memory pair in black slots DIMM 0 and DIMM 1.
  2. Install the first CPU 1 memory pair in black slots DIMM 4 and DIMM 5.
  3. Install the second CPU 0 memory pair in blue slots DIMM 2 and DIMM 3.
  4. Install the second CPU 1 memory pair in black slots DIMM 6 and DIMM 7.
  5. The minimum requirement is memory in black slots DIMM 0 and DIMM 1.
  6. The minimum memory requirement applies to Single and Dual CPU configurations.

References

  1. Ultra 40 M2 Installation Guide, 820-0121.
  2. Ultra 40 M2 Service Manual, 820-0123.
  3. Ultra 40 M2 Product Notes, 819-7565.
