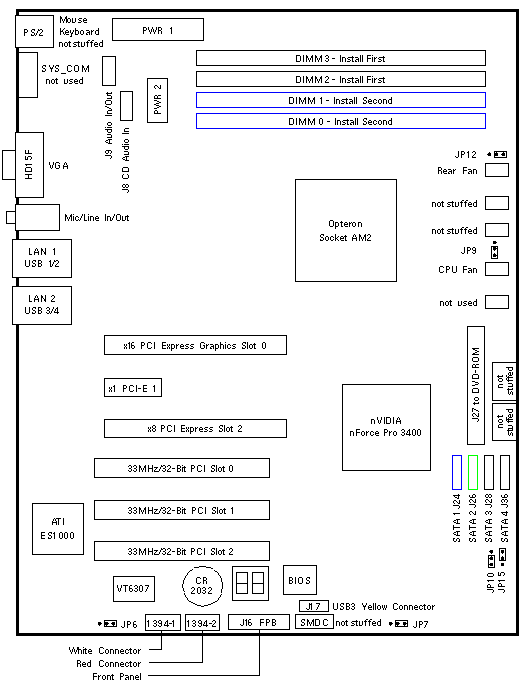

Ultra 20 M2 (A88)

375-3432

Jumper Settings

JUUMPERS PINS SETTING DESCRIPTION
JP6 3 1-2 IEEE 1394 IDSEL
JP7 3 1-2 Speaker STRPS
JP9 3 1-2 4P
JP9 3 2-3 3P (default)
JP10 3 2-3 SIO Disable (default)
JP11 3 2-3 Unknown
JP12 3 1-2 4P
JP12 3 2-3 3P (default)
JP15 3 1-2 Clear CMOS (default)

Ultra 20 M2 Codename: Munich

Notes

  1. The minimum Solaris operating system is Solaris 10 3/05 x64.

SATA Connector Notes

  1. SATA connectors J28 and J36 were removed in early production.
  2. Systems built in March 2007 are known to include connectors J28 and J36.
  3. Addition of connectors J28 and J36 was documented in June 2007 in Ultra 20 M2 Product Notes, 819-6586.
  4. Addition of connectors J28 and J36 was documented in August 2007. (WO_37062)
  5. SATA connectors J24/J26 and J28/J36 are on separate busses.
  6. If the Flash archive function is used to update Solaris on two identical SATA disks, connect the disks to separate busses. Move the SATA cable with the green connector to one of the black SATA connectors.

References

  1. Ultra 20 M2 Product Notes, 819-6586.
  2. Ultra 20 M2 Installation Guide, 819-6587.
  3. Ultra 20 M2 Service Manual, 819-6584.
