900MHz UltraSPARC III Cu
1200MHz UltraSPARC III Cu
1050MHz UltraSPARC IV
1200MHz UltraSPARC IV
1350MHz UltraSPARC IV
1500MHz UltraSPARC IV+
1800MHz UltraSPARC IV+
1950MHz UltraSPARC IV+
900MHz CPU/Memory Uniboard UltraSPARC III Cu
Sun Fire E2900 / Sun Fire V1280 / Netra 1280
501-6457 |
540-5467 |
0MB w/o Ecache w/o USIII |
0MB 501-6457 8× 4MB Ecache w/o USIII |
540-5245 |
540-5402 |
8GB w Ecache 4 × USIII Cu Cheetah+ |
32GB w Ecache 4 × USIII Cu Cheetah+ |
540-4979 |
559-0071 F540-6085 |
0MB FRU 4 × USIII Cu Cheetah+
September 2002 <= -06 Tyco Socket -07 Cinch Socket |
0MB FRU 4 × USIII Cu Cheetah+
December 2003 Cinch Socket |
Uniboard Notes
- The 559-0071 is used to support FCO A0248.
- The 559-0071 is a relabeled 540-6085 with L2 Cache rework.
- The 559 class code is used to separate new (540) and used (559) parts
in operations.
- UniBoards labeled 559 are repaired and relabeled with a 540 class code
upon failure.
CPU1 and CPU0 Memory
SOCKET |
CPU |
BANK |
DIMM |
J14600 J14601 J14500 J14501
J14400 J14401 J14300 J14301 |
P1 P1 P1 P1 P1 P1 P1 P1 |
B0 B1 B0 B1 B0 B1 B0 B1 |
D3 D3 D2 D2 D1 D1 D0 D0 |
J13600 J13601 J13500 J13501
J13400 J13401 J13300 J13301 |
P0 P0 P0 P0 P0 P0 P0 P0 |
B0 B1 B0 B1 B0 B1 B0 B1 |
D3 D3 D2 D2 D1 D1 D0 D0 |
|
|
CPU3 and CPU2 Memory
SOCKET |
CPU |
BANK |
DIMM |
J16600 J16601 J16500 J16501
J16400 J16401 J16300 J16301 |
P3 P3 P3 P3 P3 P3 P3 P3 |
B0 B1 B0 B1 B0 B1 B0 B1 |
D3 D3 D2 D2 D1 D1 D0 D0 |
J15600 J15601 J15500 J15501
J15400 J15401 J15300 J15301 |
P2 P2 P2 P2 P2 P2 P2 P2 |
B0 B1 B0 B1 B0 B1 B0 B1 |
D3 D3 D2 D2 D1 D1 D0 D0 |
|
Sun Fire V1280 Codename: Lightweight 8
Sun Fire E2900 Codename: Amazon 2 |
Notes
- The minimum operating system is Solaris 8 02/02.
- CPU/Memory slots are labeled SB0, SB2, and SB4.
- Four DIMMs of the same size form a bank.
- A populated DIMM bank requires an UltraSPARC III CPU.
- Mixing CPU speeds of 900MHz and 1200MHz within a domain or
system/platform is supported with firmware level 5.13.0013 or later.
- UltraSPARC III Cu 2.3 is installed on 540-5245 and 540-5402.
- UltraSPARC III Cu 2.3 is installed on FRU F540-4979-04.
- The USIII is Cheetah+ 900MHz, 1015MHz, or 1050MHz.
- The USIII socket changed from Tyco to Cinch in October 2003.
- Alternate sockets from Foxcon and Teledyne were added in December 2003.
- The part number changed from F540-4979 to F540-6085 in December 2003.
- The CPU/Memory Uniboard includes a toothed rack and the chassis includes
clutched pinions in the rear of slots SB0, SB2, and SB4.
- Refer to the Install.info file of any Firmware patch for
information on firmware verification and compatibility.
References
-
Sun Fire V1280 Service Manual, 817-0510.
-
Sun Fire V1280 System Administration Guide, 817-0509.
-
Sun Fire V1280/Netra 1280 Systems Site Planning Guide, 817-3333.
-
Sun Fire V1280/Netra 1280 Systems Installation Guide, 817-3334.
1200MHz CPU/Memory Uniboard UltraSPARC III Cu
Sun Fire E2900 / Sun Fire V1280 / Netra 1280
501-6457 |
540-5467 |
559-0070 540-5849 |
0MB w/o Ecache w/o USIII |
0MB 501-6457 8× 4MB Ecache w/o USIII |
0MB FRU 4 × USIII Cu Cheetah++
July 2003 <= -02 Tyco Socket -03 Cinch Socket |
501-7442 |
540-6677 |
540-6348 |
0MB w/o Ecache w/o USIII |
0MB 501-6457 8× 4MB Ecache w/o USIII |
0MB FRU 4 × USIII Cheetah++
L |
541-1509 |
541-1510 |
541-1512 |
16× 512MB No Option L |
32× 512MB No Option L |
32× 1GB No Option L |
Uniboard Notes
- The 559-0070 is used to support FCO A0248.
- The 559-0070 is a relabeled 540-5849 with L2 Cache rework.
- The 559 class code is used to separate new (540) and used (559) parts
in operations.
- UniBoards labeled 559 are repaired and relabeled with a 540 class code
upon failure.

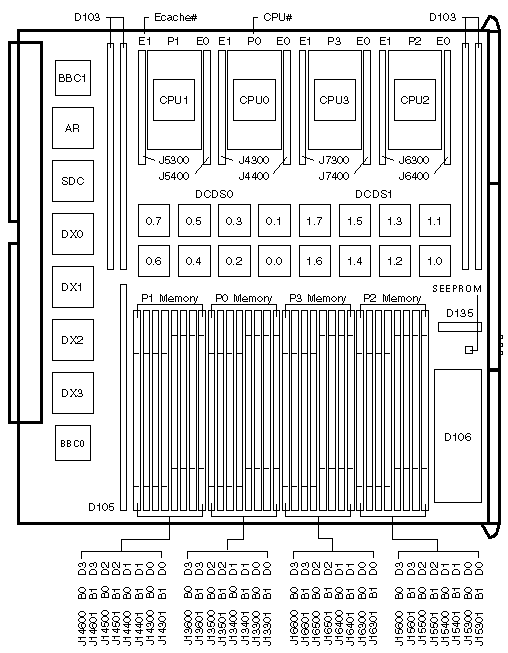

CPU1 and CPU0 Memory
SOCKET |
CPU |
BANK |
DIMM |
J14600 J14601 J14500 J14501
J14400 J14401 J14300 J14301 |
P1 P1 P1 P1 P1 P1 P1 P1 |
B0 B1 B0 B1 B0 B1 B0 B1 |
D3 D3 D2 D2 D1 D1 D0 D0 |
J13600 J13601 J13500 J13501
J13400 J13401 J13300 J13301 |
P0 P0 P0 P0 P0 P0 P0 P0 |
B0 B1 B0 B1 B0 B1 B0 B1 |
D3 D3 D2 D2 D1 D1 D0 D0 |
|
|
CPU3 and CPU2 Memory
SOCKET |
CPU |
BANK |
DIMM |
J16600 J16601 J16500 J16501
J16400 J16401 J16300 J16301 |
P3 P3 P3 P3 P3 P3 P3 P3 |
B0 B1 B0 B1 B0 B1 B0 B1 |
D3 D3 D2 D2 D1 D1 D0 D0 |
J15600 J15601 J15500 J15501
J15400 J15401 J15300 J15301 |
P2 P2 P2 P2 P2 P2 P2 P2 |
B0 B1 B0 B1 B0 B1 B0 B1 |
D3 D3 D2 D2 D1 D1 D0 D0 |
|
Configured CPU/Memory Options
Option # |
Part # |
Description |
XCPU1280-442-1200 |
540-5981 |
CPU/Memory Board with 4 UltraSPARC III Cu 1200MHz, 8GB Memory |
XCPU1280-482-1200 |
540-5870 |
CPU/Memory Board with 4 UltraSPARC III Cu 1200MHz, 16GB Memory |
XCPU1280-484-1200 |
540-5872 |
CPU/Memory Board with 4 UltraSPARC III Cu 1200MHz, 32GB Memory |
Sun Fire V1280 Codename: Lightweight 8
Sun Fire E2900 Codename: Amazon 2 |
Notes
- CPU/Memory slots are labeled SB0, SB2, and SB4.
- Four DIMMs of the same size form a bank.
- A populated DIMM bank requires an UltraSPARC III CPU.
- Mixing CPU speeds of 900MHz and 1200MHz within a domain or
system/platform is supported with firmware level 5.13.0013 or later.
- The USIII socket changed from Tyco to Cinch in October 2003.
- Alternate sockets from Foxcon and Teledyne were added in December 2003.
- The CPU/Memory Uniboard includes a toothed rack and the chassis includes
clutched pinions in the rear of slots SB0, SB2, and SB4.
- Refer to the Install.info file of any Firmware patch for
information on firmware verification and compatibility.
References
-
Sun Fire V1280 Service Manual, 817-0510.
-
Sun Fire V1280 System Administration Guide, 817-0509.
-
Sun Fire V1280/Netra 1280 Systems Site Planning Guide, 817-3333.
-
Sun Fire V1280/Netra 1280 Systems Installation Guide, 817-3334.
1050MHz CPU/Memory Uniboard UltraSPARC IV
Sun Fire E2900 / Sun Fire V1280
501-6727 |
540-6007 |
540-6077 |
0MB w/o Ecache w/o USIV |
0MB 501-6727 8× 8MB Ecache w/o USIV |
0MB FRU 4 × USIV Jaguar
December 2003 |
501-6838 |
540-6118 |
540-6232 |
0MB w/o Ecache w/o USIV |
0MB 501-6838 8× 8MB Ecache w/o USIV |
0MB FRU 4 × USIV Jaguar
November 2004 |
501-7538 |
540-6678 |
540-6864 |
540-7242
1
|
0MB w/o Ecache w/o USIV |
0MB 501-7538 8× 8MB Ecache w/o USIV |
0MB FRU 4 × USIV Jaguar L |
0MB FRU 4 × USIV Jaguar L |
1 Includes external cache module 370-4129 shipped under
hexavalent chromium waiver to EU Directive 2002/95/EC.
The waiver expires on 1 July 2007.

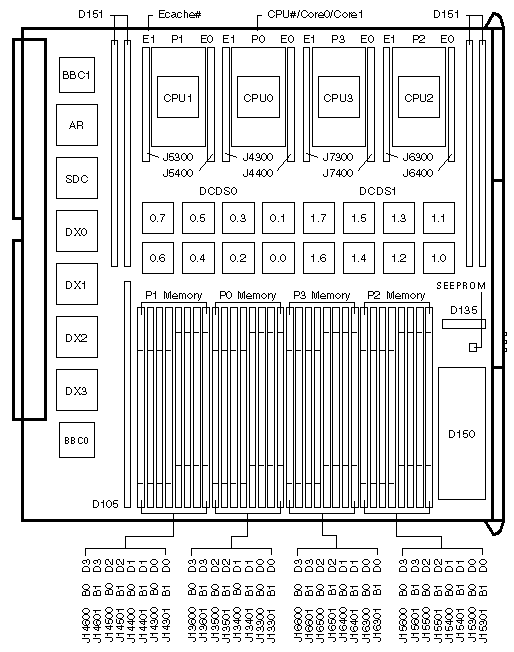

CPU1 and CPU0 Memory
SOCKET |
CPU |
BANK |
DIMM |
J14600 J14601 J14500 J14501
J14400 J14401 J14300 J14301 |
P1 P1 P1 P1 P1 P1 P1 P1 |
B0 B1 B0 B1 B0 B1 B0 B1 |
D3 D3 D2 D2 D1 D1 D0 D0 |
J13600 J13601 J13500 J13501
J13400 J13401 J13300 J13301 |
P0 P0 P0 P0 P0 P0 P0 P0 |
B0 B1 B0 B1 B0 B1 B0 B1 |
D3 D3 D2 D2 D1 D1 D0 D0 |
|
|
CPU3 and CPU2 Memory
SOCKET |
CPU |
BANK |
DIMM |
J16600 J16601 J16500 J16501
J16400 J16401 J16300 J16301 |
P3 P3 P3 P3 P3 P3 P3 P3 |
B0 B1 B0 B1 B0 B1 B0 B1 |
D3 D3 D2 D2 D1 D1 D0 D0 |
J15600 J15601 J15500 J15501
J15400 J15401 J15300 J15301 |
P2 P2 P2 P2 P2 P2 P2 P2 |
B0 B1 B0 B1 B0 B1 B0 B1 |
D3 D3 D2 D2 D1 D1 D0 D0 |
|
Configured CPU/Memory Options
Sun Fire E2900 / V1280 |
Option # |
Part # |
Description |
XE29BRD-482-1050 |
540-6001 |
CPU/Memory Board with 4 UltraSPARC IV 1050MHz, 16GB Memory
(board 540-6007) |
XE29BRD-484-1050 |
540-6002 |
CPU/Memory Board with 4 UltraSPARC IV 1050MHz, 32GB Memory
(board 540-6007) |
XE29BRD482-1050-Z
1
|
541-1529 |
CPU/Memory Board with 4 UltraSPARC IV 1050MHz, 16GB Memory
(board 540-6678) L |
XE29BRD484-1050-Z
1
|
541-1530 |
CPU/Memory Board with 4 UltraSPARC IV 1050MHz, 32GB Memory
(board 540-6678) L |
1 Systems and options use 370-4129 or 371-1595,
the non-waivered cache module.
Other Configured CPU/Memory Assemblies
Sun Fire E2900 / V1280 |
Top Level # |
Part # |
Description |
541-0221 |
540-6256 |
CPU/Memory Board with 4 UltraSPARC IV 1050MHz, 32GB Memory
(board 540-6118) |
541-0223 |
540-6189 |
CPU/Memory Board with 4 UltraSPARC IV 1050MHz, 16GB Memory
(board 540-6118) |
Sun Fire V1280 Codename: Lightweight 8
Sun Fire E2900 Codename: Amazon 2 |
Notes
- The minimum operating system is Solaris 8 2/04 or Solaris 9 4/04.
- The minimum System Controller firmware is 5.17.0.
- CPU/Memory slots are labeled SB0, SB2, and SB4.
- Four DIMMs of the same size form a bank.
- A populated DIMM bank requires an UltraSPARC IV CPU.
- The CPU/Memory Uniboard includes a toothed rack and the chassis includes
clutched pinions in the rear of slots SB0, SB2, and SB4.
- Refer to the Install.info file of any Firmware patch for
information on firmware verification and compatibility.
FRU Notes
- F540-6077-07 was built with 540-6077 or 540-6232.
- F540-6077-07 was built between 11/12/04 and 01/10/05.
References
-
Sun Fire E2900 Site Planning Guide, 817-4052.
-
Sun Fire E2900 Installation Guide, 817-4053.
-
Sun Fire E2900 Service Manual, 817-4054.
-
Sun Fire V1280 Service Manual, 817-0510.
-
Sun Fire V1280 System Administration Guide, 817-0509.
-
Sun Fire V1280/Netra 1280 Systems Site Planning Guide, 817-3333.
-
Sun Fire V1280/Netra 1280 Systems Installation Guide, 817-3334.
-
Sun Fire Entry-Level Midrange System Controller Command Reference Manual, 817-5232.
