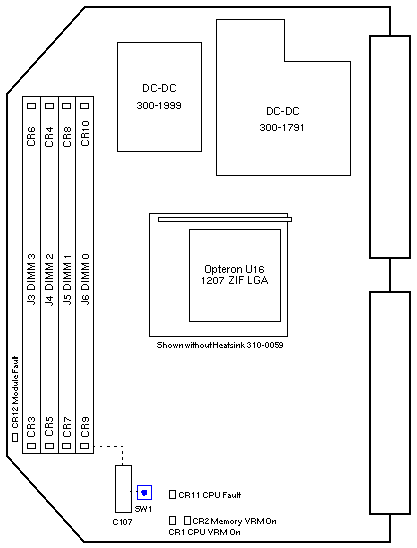

Sun Fire X4600 M2

CPU/Memory Board

Options 8107A-Z / 8108A-Z / 8109A-Z / 8110A-Z / 8115A-Z

501-7321
Centaurus w/o processor
w/o Heatsink 310-0059
w/o Backplate 541-0465
L
2.4GHz
Dual-Core
2.6GHz
Dual-Core
2.8GHz
Dual-Core
2.8GHz
Dual-Core
3.2GHz
Dual-Core
541-2196 541-1835 541-2045 541-2197 541-2744
0MB Assy/FRU
Opteron 8216
F3 Stepping
8000 Series Socket F
Option 8107A-Z
L
0MB Assy/FRU
Opteron 8218
F2 Stepping
8000 Series Socket F
Option 8108A-Z
L
0MB Assy/FRU
Opteron 8220SE
F3 Stepping
8000 Series Socket F
Option 8109A-Z
L
0MB Assy/FRU
Opteron 8220
F3 Stepping
8000 Series Socket F
Option 8110A-Z
L
0MB Assy/FRU
Opteron 8224SE
F3 Stepping
8000 Series Socket F
Option 8115A-Z
L

Go to 501-7735
Go to 501-7817

Sun Fire X4600 M2 Codename: Galaxy 4F

Notes

  1. The minimum Solaris operating system is Solaris 10 01/06 x64.
  2. Two, Four, Six, and Eight CPU/Memory Module configurations are supported.
  3. PCI Slots 5, 6, and 7 are not usable in two CPU/Memory Module configurations.
  4. Mixing CPU speeds or mixing single-, dual- and quad-core CPUs is not supported.
  5. DIMM pairs require matching characteristics including manufacturer, size, and speed.
  6. Install the first DIMM pair in DIMM2/DIMM3 - Pair 1 (white)
    and the second DIMM pair in DIMM0/DIMM1 - Pair 0 (black).
  7. Fault Remind Button SW1 lights the CPU/Memory fault LEDs for up to one minute.
  8. DIMM Fault LEDs do not function correctly.
    Refer to BugIDs 6403209 and 6420909.
  9. Replace faulty DIMMs as a pair. The DIMM FRU includes two matching DIMMs.

References

  1. Integrated Lights-Out Manager Administration Guide for ILOM 1.0, 819-1160.
  2. Integrated Lights-Out Manager Administration Guide for ILOM 1.1.1, 820-0280.
  3. Sun Fire X4600 and X4600 M2 Servers Installation Guide, 819-4341.
  4. Sun Fire X4600 and X4600 M2 Servers Service Manual, 819-4342.
  5. Sun Fire X4600 and X4600 M2 Servers Diagnostics Guide, 819-4343.
  6. Sun Fire X4600 M2 Server Product Notes, 819-5032.
  7. Sun Fire X4600 to Sun Fire X4600 M2 Server Migration, 819-5040.
  8. Integrated Lights Out Manager for Sun Fire X4600 and X4600 M2 Servers, 819-5432.

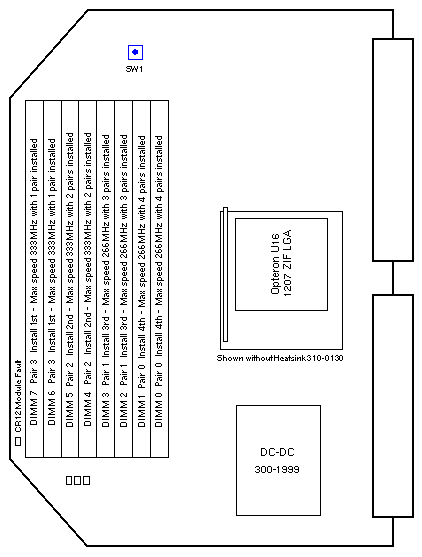

Sun Fire X4600 M2

CPU/Memory Board

Options 8111A-Z / 8113A-Z

501-7735
Helix w/o processor
w/o Heatsink 310-0130
w/o Backplate 541-2261
L
2.8GHz
Dual-Core
3.0GHz
Dual-Core
541-2262 541-2403
Helix 0MB Assy/FRU
Opteron 8220
F3 Stepping
8000 Series Socket F
Option 8113A-Z
L
Helix 0MB Assy/FRU
Opteron 8222
F3 Stepping
8000 Series Socket F
Option 8110A-Z
L

Go to 501-7321
Go to 501-7817

Sun Fire X4600 M2 Codename: Galaxy 4F

Notes

  1. The minimum Solaris operating system is Solaris 10 01/06 x64.
  2. Two, Four, Six, and Eight CPU/Memory Module configurations are supported.
  3. PCI Slots 5, 6, and 7 are not usable in two CPU/Memory Module configurations.
  4. Mixing CPU speeds or mixing single-, dual- and quad-core CPUs is not supported.
  5. DIMM pairs require matching characteristics including manufacturer, size, and speed.
  6. Fault Remind Button SW1 lights the CPU/Memory fault LEDs for up to one minute.
  7. DIMM Fault LEDs do not function correctly.
    Refer to BugIDs 6403209 and 6420909.
  8. Replace faulty DIMMs as a pair. The DIMM FRU includes two matching DIMMs.
  9. A222 Power Supply 300-2013 or A238 Power Supply 300-2158 is required.
    Option X4094A-Z includes four 300-2013. Option X5009A-Z includes four 300-2158.

References

  1. Integrated Lights-Out Manager Administration Guide for ILOM 1.0, 819-1160.
  2. Integrated Lights-Out Manager Administration Guide for ILOM 1.1.1, 820-0280.
  3. Sun Fire X4600 and X4600 M2 Servers Installation Guide, 819-4341.
  4. Sun Fire X4600 and X4600 M2 Servers Service Manual, 819-4342.
  5. Sun Fire X4600 and X4600 M2 Servers Diagnostics Guide, 819-4343.
  6. Sun Fire X4600 M2 Server Product Notes, 819-5032.
  7. Sun Fire X4600 to Sun Fire X4600 M2 Server Migration, 819-5040.
  8. Integrated Lights Out Manager for Sun Fire X4600 and X4600 M2 Servers, 819-5432.

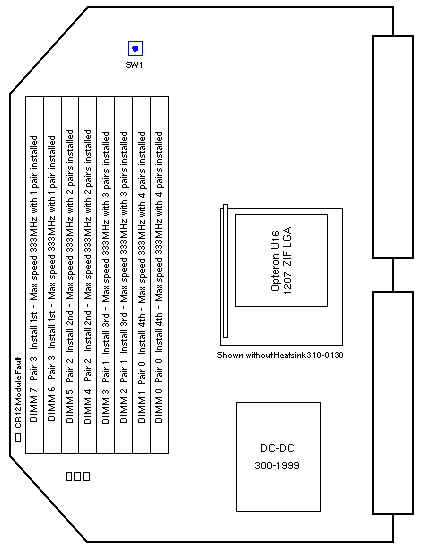

Sun Fire X4600 M2

CPU/Memory Board

Options 8226A-Z / 8229A-Z / 8233A-Z / 8472A / 8474A / 8476A

501-7817
Vortex w/o processor
w/o Heatsink 310-0130
w/o Backplate 541-2261
L
1.9GHz
Quad-Core
2.3GHz
Quad-Core
2.5GHz
Quad-Core
541-1314 541-2785 541-2783
Vortex 0MB Assy/FRU
Opteron 8347HE
Barcelona
B3 Stepping
8000 Series Socket F
Option 8226A-Z
L
Vortex 0MB Assy/FRU
Opteron 8356
Barcelona
B3 Stepping
8000 Series Socket F
Option 8229A-Z
L
Vortex 0MB Assy/FRU
Opteron 8360SE
Barcelona
B3 Stepping
8000 Series Socket F
Option 8233A-Z
L
2.3GHz
Quad-Core
2.5GHz
Quad-Core
2.7GHz
Quad-Core
2.9GHz
Quad-Core
541-3847 541-3675 541-3676 541-3867
Vortex 0MB Assy/FRU
Opteron 8376HE
Shanghai
C2 Stepping
8000 Series Socket F
Option 8472A
L
Vortex 0MB Assy/FRU
Opteron 8380
Shanghai
C2 Stepping
8000 Series Socket F
Option 8474A
L
Vortex 0MB Assy/FRU
Opteron 8384
Shanghai
C2 Stepping
8000 Series Socket F
Option 8476A
L
Vortex 0MB Assy/FRU
Opteron 8389
Shanghai
C2 Stepping
8000 Series Socket F
Option 8478A
L

Go to 501-7321
Go to 501-7735

Sun Fire X4600 M2 Codename: Galaxy 4F

Notes

  1. The minimum Solaris operating system is Solaris 10 08/07 (U4) x64.
  2. The minimum Solaris operating system for the Opteron 8380/8384 is Solaris 10 10/08 x64.
  3. Two, Four, Six, and Eight CPU/Memory Module configurations are supported.
  4. PCI Slots 5, 6, and 7 are not usable in two CPU/Memory Module configurations.
  5. Mixing CPU speeds or mixing single-, dual- and quad-core CPUs is not supported.
  6. DIMM pairs require matching characteristics including manufacturer, size, and speed.
  7. Fault Remind Button SW1 lights the CPU/Memory fault LEDs for up to one minute.
  8. Replace faulty DIMMs as a pair. The DIMM FRU includes two matching DIMMs.
  9. BIOS 0ABIT87 adds AMD Quad Core Opteron (Barcelona) support.
  10. BIOS 0ABIT114 adds support to AMD Quad Core Opteron Models 8380 and 8384 (Shanghai).
  11. Barcelona CPU: A222 Power Supply 300-2013 or A238 Power Supply 300-2158 is required.
    Shanghai CPU: A238 Power Supply 300-2158 is required.
  12. Option X4094A-Z includes four 300-2013.
    Option X5009A-Z includes four 300-2158.

References

  1. Integrated Lights-Out Manager Administration Guide for ILOM 1.0, 819-11 60.
  2. Integrated Lights-Out Manager Administration Guide for ILOM 1.1.1, 820- 0280.
  3. Sun Fire X4600 and X4600 M2 Servers Installation Guide, 819-4341.
  4. Sun Fire X4600 and X4600 M2 Servers Service Manual, 819-4342.
  5. Sun Fire X4600 and X4600 M2 Servers Diagnostics Guide, 819-4343.
  6. Sun Fire X4600 M2 Server Product Notes, 819-5032.
  7. Sun Fire X4600 to Sun Fire X4600 M2 Server Migration, 819-5040.
  8. Integrated Lights Out Manager for Sun Fire X4600 and X4600 M2 Servers, 819-5432.
