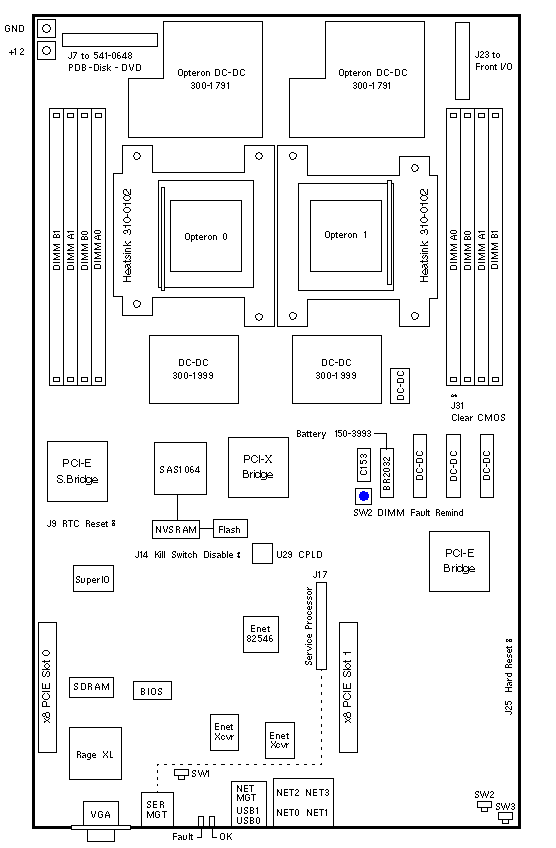

Sun Fire X4100 M2

501-7668 501-7988
FAB 270-7590-02
September 2006
L
FAB 270-7590-03
September 2007
L

Sun Fire X4100 M2 Codename: Galaxy 1F

Notes

  1. The minimum Solaris operating system is Solaris 10 6/06 (U2) x64.
  2. The System Board FRU includes two 310-0049 Thermal Grease Syringes.
  3. Cable kit 565-1963 is required to program the CPLD. Refer to FAB 239627.
  4. The 501-7668-04 and 501-7988-02 include the CPLD change for BugID 6629455.
  5. CPLD code was changed to allow a 25ms waiting period upon an AC power fault to
    both AC Input power supplies. The change does not apply to systems with DC Input
    power supplies which have a 10ms holdup time. Reference wo_38378 of January 2008
  6. Each CPU requires one pair of DIMMs.
  7. Install HyperTransport Terminator 371-2481 when only one processor is installed.
  8. Install DIMMs in pairs beginning with DIMM A1 and B1 then DIMM A0 and B0.

References

  1. Sun Fire X4100 and X4200 Servers Installation Guide, 819-1155.
  2. Sun Fire X4100 and X4200 Servers Service Manual, 819-1157.
  3. Integrated Lights-Out Manager Administration Guide for ILOM 1.0, 819-1160.
  4. Integrated Lights-Out Manager Administration Guide for ILOM 1.1.1, 820-0280.
  5. Sun Fire X4100 and X4200 Servers Product Notes, 819-1162.
  6. Sun Fire X4100 and X4200 Servers Diagnostics Guide, 819-3284.
