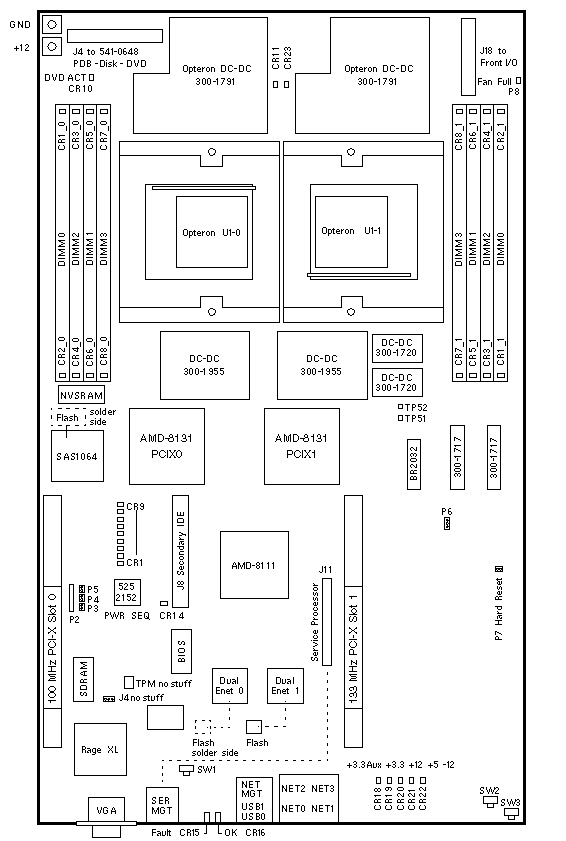

Sun Fire X4100
501-7261 |
FAB 270-6974-04
FAB 270-6974-06
FAB 270-6974-07 |
Headers, Jumpers, Switches, and Test Points
LOCATION |
PINS |
SETTING |
DESCRIPTION |
J4 |
1-2 2-3 |
In In |
DCD/DSR Configuration set to DCD
DCD/DSR Configuration set to DSR |
P1 |
1-20 |
Out |
SAS1064 JTAG Header |
P2 |
1-14 |
Out |
XC2C128 CPLD I/O Header |
P3 |
1-2 |
Out |
Front Top Cover Kill Switch Disable (default) |
P4 |
1-2 |
Out |
Clear BIOS Password (default) |
P5 |
1-2 |
Out |
Force BIOS Recovery (default) |
P6 |
1-3 |
Out |
Processor I2C Header |
P7 |
1-2 1-2 |
In Out |
Reset Button SW3 Enabled (default unknown)
Reset Button SW3 Disabled (default unknown) |
P8 |
1-2 |
Out |
Force Fans to Full Speed (default) |
SW1 |
NA |
NA |
Locate Button |
SW2 |
NA |
NA |
Non Maskable Interrupt Dump Button |
SW3 |
NA |
NA |
Reset Button |
TP51 |
1 |
NA |
Short TP51 to TP52 to Clear CMOS |
TP52 |
1 |
NA |
Short TP51 to TP52 to Clear CMOS |
Diagnostic LEDs
LOCATION |
DESCRIPTION |
CR1 CR2 CR3 CR4 |
SAS Disk Drive 3 Activity
SAS Disk Drive 2 Activity
SAS Disk Drive 1 Activity
SAS Disk Drive 0 Activity |
CR5 CR6 CR7 CR8 |
SAS Disk Drive 3 Fault
SAS Disk Drive 2 Fault
SAS Disk Drive 1 Fault
SAS Disk Drive 0 Fault |
CR9 |
SAS1064 Heart Beat |
CR10 |
DVD Activity |
CR11 CR23 |
CPU 0 OK
CPU 1 OK |
CR15 |
Rear Panel Alert |
CR16 |
Rear Panel Power OK |
CR18 |
+3.3V Auxillary Power OK |
CR19 |
+3.3V Power OK |
CR20 |
+12V Power OK |
CR21 |
+5V Power OK |
CR22 |
-12V Power OK |
Sun Fire X4100 Codename: Galaxy 1U |
Notes
- The minimum Solaris operating system is Solaris 10 3/05.
- Slot 1 changed from 100MHz to 133MHz in July 2005.
- The 133MHz Slot 1 on FAB 270-6974-04 is silkscreened 100MHz.
- The 133MHz Slot 1 on FAB 270-6974-06 is silkscreened 133MHz.
- Each installed CPU requires on pair of DIMMs.
- Install DIMMs in pairs beginning with DIMM 0 and 1 then DIMM 2 and 3.
References
-
Sun Fire X4100 and X4200 Servers Installation Guide, 819-1155.
-
Sun Fire X4100 and X4200 Servers Service Manual, 819-1157.
-
Integrated Lights-Out Manager Administration Guide for ILOM 1.0, 819-1160.
-
Integrated Lights-Out Manager Administration Guide for ILOM 1.1.1, 820-0280.
-
Sun Fire X4100 and X4200 Servers Product Notes, 819-1162.
-
Sun Fire X4100 and X4200 Servers Diagnostics Guide, 819-3284.

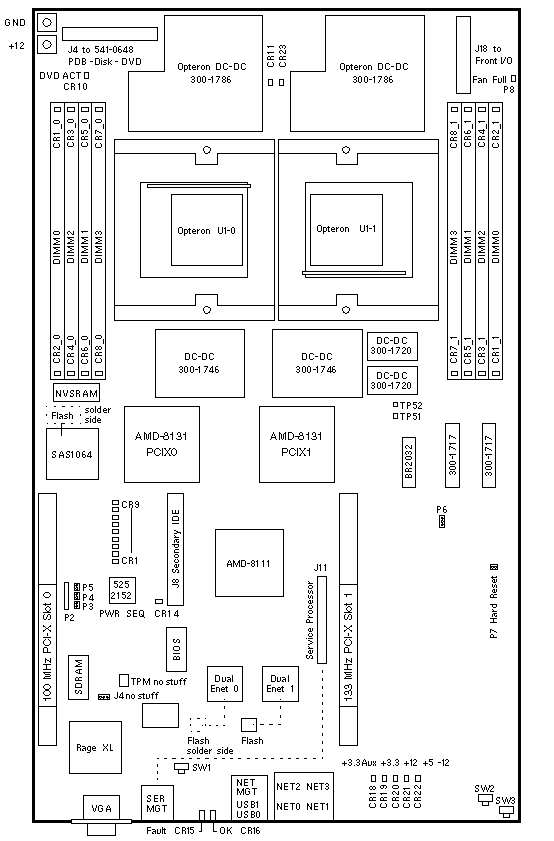

Sun Fire X4100
StorageTek 5220 NAS
501-7513 |
501-7644 |
FAB 270-7513-01 May 2006
X4100 / 5220NAS L |
FAB 270-6974-07 May 2006
X4100 L |
Headers, Jumpers, Switches, and Test Points
LOCATION |
PINS |
SETTING |
DESCRIPTION |
J4 |
1-2 2-3 |
In In |
DCD/DSR Configuration set to DCD
DCD/DSR Configuration set to DSR |
P1 |
1-20 |
Out |
SAS1064 JTAG Header |
P2 |
1-14 |
Out |
XC2C128 CPLD I/O Header |
P3 |
1-2 |
Out |
Front Top Cover Kill Switch Disable (default) |
P4 |
1-2 |
Out |
Clear BIOS Password (default) |
P5 |
1-2 |
Out |
Force BIOS Recovery (default) |
P6 |
1-3 |
Out |
Processor I2C Header |
P7 |
1-2 1-2 |
In Out |
Reset Button SW3 Enabled (default unknown)
Reset Button SW3 Disabled (default unknown) |
P8 |
1-2 |
Out |
Force Fans to Full Speed (default) |
SW1 |
NA |
NA |
Locate Button |
SW2 |
NA |
NA |
Non Maskable Interrupt Dump Button |
SW3 |
NA |
NA |
Reset Button |
TP51 |
1 |
NA |
Short TP51 to TP52 to Clear CMOS |
TP52 |
1 |
NA |
Short TP51 to TP52 to Clear CMOS |
Diagnostic LEDs
LOCATION |
DESCRIPTION |
CR1 CR2 CR3 CR4 |
SAS Disk Drive 3 Activity
SAS Disk Drive 2 Activity
SAS Disk Drive 1 Activity
SAS Disk Drive 0 Activity |
CR5 CR6 CR7 CR8 |
SAS Disk Drive 3 Fault
SAS Disk Drive 2 Fault
SAS Disk Drive 1 Fault
SAS Disk Drive 0 Fault |
CR9 |
SAS1064 Heart Beat |
CR10 |
DVD Activity |
CR11 CR23 |
CPU 0 OK
CPU 1 OK |
CR15 |
Rear Panel Alert |
CR16 |
Rear Panel Power OK |
CR18 |
+3.3V Auxillary Power OK |
CR19 |
+3.3V Power OK |
CR20 |
+12V Power OK |
CR21 |
+5V Power OK |
CR22 |
-12V Power OK |
Sun Fire X4100 Codename: Galaxy 1U
StorageTek 5220 NAS Codename: Thunderbird |
Notes
- The minimum Solaris operating system is Solaris 10 3/05.
- The 501-7644 was added as a substitute for 501-7513 in August 2006.
(WO_32933)
References
-
Sun Fire X4100 and X4200 Servers Installation Guide, 819-1155.
-
Sun Fire X4100 and X4200 Servers Service Manual, 819-1157.
-
Integrated Lights-Out Manager Administration Guide for ILOM 1.0, 819-1160.
-
Integrated Lights-Out Manager Administration Guide for ILOM 1.1.1, 820-0280.
-
Sun Fire X4100 and X4200 Servers Product Notes, 819-1162.
-
Sun Fire X4100 and X4200 Servers Diagnostics Guide, 819-3284.
|
