Sun Fire V40z

Daughter Board

370-6927
Sobek 1.0
Newisys S00403
A57A-AA Chassis FRU 380-1010

LEDs

LOCATION COLOR STATE DESCRIPTION
LD8 Amber Fault CPU3 Status
LD10 Amber Fault CPU3 Memory VRM Status
LD16 Amber Fault CPU2 Status
LD17 Amber Fault CPU2 CPU VRM Status
LD18 Amber Fault CPU2 Memory VRM Status
LD20-23 Amber Fault CPU2 DIMM 0-3 Status
Notes:

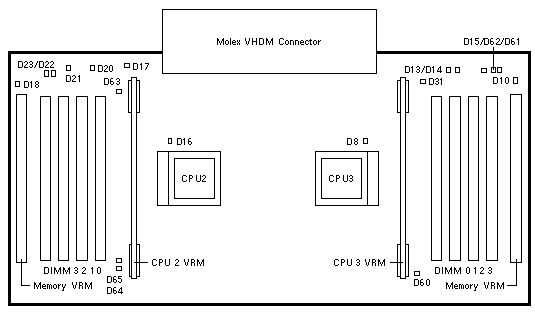

LED locations are abbreviated D on the system board illustration.
No information is available for other LED locations.

Sun Fire V40z Codename: Stinger4P

Notes

  1. The CPU/Memory Expansion (Daughter) Board is a Field Replaceable Unit.
  2. Disconnect AC Power before removing or replacing the CPU/Memory Expansion Board.
  3. Daughter Boards ship without installed memory. A minimum of one memory option (two DIMMs) is required.

References

  1. Sun Fire V20z and V40z Servers Installation Guide, 817-5246.
  2. Sun Fire V20z and V40z Servers User Guide, 817-5248.
  3. Sun Fire V20z and V40z Servers Management Guide, 817-5249.
  4. Sun Fire V20z and V40z Servers Release Notes, 819-1771.
  5. Sun Fire V20z and V40z Servers Troubleshooting Techniques and Diagnostics Guide, 817-7184.



Sun Fire V40z

Daughter Board

370-7778
Sobek 2.0
Newisys S02055
A57B-AA Chassis FRU 380-1206

LEDs

LOCATION COLOR STATE DESCRIPTION
LD8 Amber Fault CPU3 Status
LD10 Amber Fault CPU3 Memory VRM Status
LD16 Amber Fault CPU2 Status
LD17 Amber Fault CPU2 CPU VRM Status
LD18 Amber Fault CPU2 Memory VRM Status
LD20-23 Amber Fault CPU2 DIMM 0-3 Status
Notes:

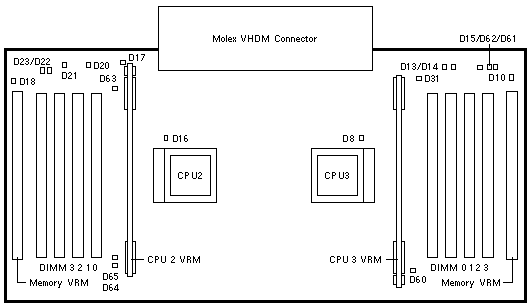

LED locations are abbreviated D on the system board illustration.
No information is available for other LED locations.

Sun Fire V40z Codename: Stinger4P

Notes

  1. The CPU/Memory Expansion (Daughter) Board is a Field Replaceable Unit.
  2. Disconnect AC Power before removing or replacing the CPU/Memory Expansion Board.
  3. Daughter Boards ship without installed memory. A minimum of one memory option (two DIMMs) is required.

References

  1. Sun Fire V20z and V40z Servers Installation Guide, 817-5246.
  2. Sun Fire V20z and V40z Servers User Guide, 817-5248.
  3. Sun Fire V20z and V40z Servers Management Guide, 817-5249.
  4. Sun Fire V20z and V40z Servers Release Notes, 819-1771.
  5. Sun Fire V20z and V40z Servers Troubleshooting Techniques and Diagnostics Guide, 817-7184.



Sun Fire V40z

Daughter Board

371-1471
Sobek 3.0
Newisys unknown
A57C-AA Chassis FRU 380-1378

LEDs

LOCATION COLOR STATE DESCRIPTION
LD8 Amber Fault CPU3 Status
LD10 Amber Fault CPU3 Memory VRM Status
LD16 Amber Fault CPU2 Status
LD17 Amber Fault CPU2 CPU VRM Status
LD18 Amber Fault CPU2 Memory VRM Status
LD20-23 Amber Fault CPU2 DIMM 0-3 Status
Notes:
LED locations are abbreviated D on the system board illustration.
No information is available for other LED locations.

Sun Fire V40z Codename: Stinger4P

Notes

  1. The CPU/Memory Expansion (Daughter) Board is a Field Replaceable Unit.
  2. Disconnect AC Power before removing or replacing the CPU/Memory Expansion Board.
  3. Daughter Boards ship without installed memory. A minimum of one memory option (two DIMMs) is required.

References

  1. Sun Fire V20z and V40z Servers Installation Guide, 817-5246.
  2. Sun Fire V20z and V40z Servers User Guide, 817-5248.
  3. Sun Fire V20z and V40z Servers Management Guide, 817-5249.
  4. Sun Fire V20z and V40z Servers Release Notes, 819-1771.
  5. Sun Fire V20z and V40z Servers Troubleshooting Techniques and Diagnostics Guide, 817-7184.
