Sun Blade X6275 GbE M2

375-3660 375-3695 542-0203 X6275M2-BB

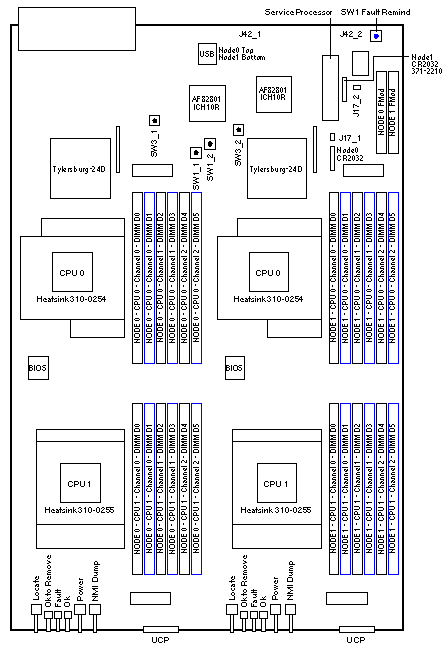

System Board Service Processor Assembly/FRU
375-3660 + 375-3695
X6275 M2 Base
599-3725

Headers, Jumpers and Switches

LOCATION PINS SETTING DESCRIPTION
J17_1 2 n/a Flash Module 0 ESM connector
J17_2 2 n/a Flash Module 1 ESM connector
J42_1 1-2 In Clear Node0 CMOS when 2-3 installed
J42_2 1-2 In Clear Node1 CMOS when 2-3 installed
SW1_1 n/a n/a Host Reset (Node0)
SW1_2 n/a n/a Host Reset (Node1)
SW3_1 n/a n/a SP CPU Reset (Node0)
SW3_2 n/a n/a SP CPU Reset (Node1)

Sun Blade X6275 M2 Server Module Codename: Vayu+

Notes

  1. The minimum Solaris operating system is Solaris 10 10/09 64-bit.
  2. Heatsinks 310-0254 and 310-0255 are pre-greased with Shin-Etsu X23-7783D.
  3. The X6275 M2 FRU includes four 310-0065 Shin-Etsu X23-7783D syringes.

Chassis Notes

  1. X6275 M2 GbE is supported in the Sun Blade 6000 A90-B and A90-D.
  2. X6275 M2 GbE is not supported in the Sun Blade 6000 A90-A or in the Sun Blade 6048.
  3. The Sun Blade X6275 M2 requires a PCI Express 2.0 Midplane.
  4. Sun Blade 6000 Midplane 501-7376 supports PCI Express 1.1.
  5. Sun Blade 6000 Midplanes 511-1298 and 511-1487 support PCI Express 2.0.

Memory Installation Notes

  1. Install Blue socket DIMMs D5/D3/D1 then install White socket DIMMs D4/D2/D0.
  2. The configuration of CPU0 and CPU1 memory on each Node must be identical.
  3. Supported configurations are three DIMMs per CPU or six DIMMs per CPU.
  4. Maximum speed is 1333MHz when 1333MHz DIMMs are installed in D1, D3, and D5.
  5. Maximum speed is 1066MHz when any speed DIMMs are installed in all slots.

References

  1. Sun Blade X6275 M2 Service Manual, 821-1084.
  2. Sun Blade X6275 M2 Product Notes, 821-1088.
  3. Sun Blade X6275 M2 Installation Guide, 821-1089.
