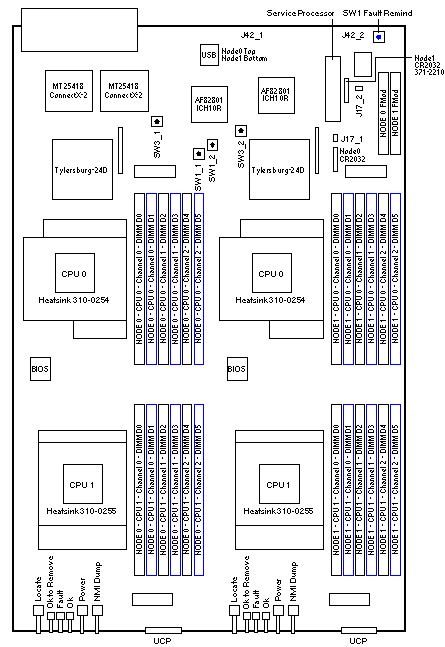

Sun Blade X6275 10GbE M2
375-3649 |
375-3695 |
542-0162 |
X6275M2-CB |
System Board |
Service Processor |
Assembly/FRU 375-3649 + 375-3695 |
X6275 M2 Base 599-3726 |
Headers, Jumpers and Switches
LOCATION |
PINS |
SETTING |
DESCRIPTION |
J17_1 |
2 |
n/a |
Flash Module 0 ESM connector |
J17_2 |
2 |
n/a |
Flash Module 1 ESM connector |
J42_1 |
1-2 |
In |
Clear Node0 CMOS when 2-3 installed |
J42_2 |
1-2 |
In |
Clear Node1 CMOS when 2-3 installed |
SW1_1 |
n/a |
n/a |
Host Reset (Node0) |
SW1_2 |
n/a |
n/a |
Host Reset (Node1) |
SW3_1 |
n/a |
n/a |
SP CPU Reset (Node0) |
SW3_2 |
n/a |
n/a |
SP CPU Reset (Node1) |
Sun Blade X6275 M2 Server Module Codename: Vayu+ |
Notes
- The Solaris operating system is not supported at this time.
- Heatsinks 310-0254 and 310-0255 are pre-greased with Shin-Etsu X23-7783D.
- The X6275 M2 FRU includes four 310-0065 Shin-Etsu X23-7783D syringes.
Chassis Notes
- X6275 M2 10GbE is supported in the Sun Blade 6000 A90-B and A90-D.
- X6275 M2 10GbE is not supported in the Sun Blade 6000 A90-A or
in the Sun Blade 6048.
- The Sun Blade X6275 M2 10GbE requires a PCI Express 2.0 Midplane.
- Sun Blade 6000 Midplane 501-7376 supports PCI Express 1.1.
- Sun Blade 6000 Midplanes 511-1298 and 511-1487 support PCI Express 2.0.
Memory Installation Notes
- Install Blue socket DIMMs D5/D3/D1 then install White socket DIMMs D4/D2/D0.
- The configuration of CPU0 and CPU1 memory on each Node must be identical.
- Supported configurations are three DIMMs per CPU or six DIMMs per CPU.
- Maximum speed is 1333MHz when 1333MHz DIMMs are installed in D1, D3, and D5.
- Maximum speed is 1066MHz when any speed DIMMs are installed in all slots.
References
-
Sun Blade X6275 M2 Service Manual, 821-1084.
-
Sun Blade X6275 M2 Product Notes, 821-1088.
-
Sun Blade X6275 M2 Installation Guide, 821-1089.
|
