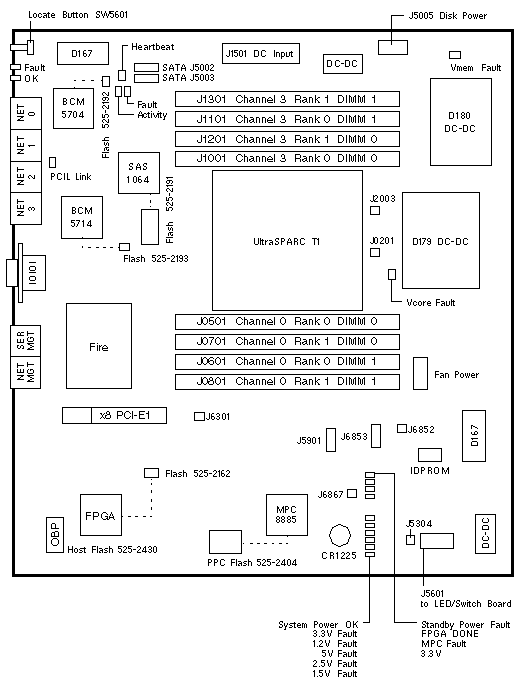

SPARC Enterprise T1000

501-7754 541-2143 541-2144 541-2501 541-2502
0MB w/o CPU
FAB 270-7014
L
0MB Assembly
UltraSPARC T1
6-Core 1.0GHz
L
0MB Assembly
UltraSPARC T1
8-Core 1.0GHz
L
0MB System FRU
6-Core 1.0GHz
L
0MB System FRU
8-Core 1.0GHz
L

Headers and Jumpers

LOCATION PINS SETTING DESCRIPTION
J0201 2 n/a Unknown (header not installed)
J2003 2 n/a Unknown (header not installed)
J5304 2 Out Unknown
J5901 10 Out Unknown
J6301 2 Out Unknown
J6852 2 Out Unknown
J6853 10 Out Unknown
J6867 2 In Unknown

SPARC Enterprise T1000 Codename: Erie APL

Notes

  1. The Sun Fire T1000 was renamed SPARC Enterprise T1000 in April 2007.
  2. The minimum operating system is Solaris 10 1/06.
  3. The minimum T1000 memory requirement is four Rank 0 DIMMs.
  4. An example error message from the DIMM in J1301 is MB/CMP0/CH3/R1/D1 .

References

  1. SPARC Enterprise T1000 Server Installation Guide, 820-0018.
  2. SPARC Enterprise T1000 Server Service Manual, 820-0019.
  3. SPARC Enterprise T1000 Server Administration Guide, 820-0020.
  4. SPARC Enterprise T1000 Server Product Notes, 820-0021.
  5. Advanced Lights Out Management (ALOM) CMT v1.3 Guide, 819-7981.
