511-1315	541-4245	541-4243	597-0747
System Board w/o Enclosure	System Board Assy 8-Core 1.65GHz	System Board FRU 8-Core 1.65GHz	8-Core 1.65GHz Assembly 541-4197 T31B-AA181650

511-1315	541-3888	541-4197	597-0644
System Board w/o Enclosure	System Board Assy 16-Core 1.65GHz	System Board FRU 16-Core 1.65GHz	16-Core 1.65GHz Assembly 541-4197 T6360-AA-1A1600

SPARC T3-1B Codename: Jumilla

Notes

1. The minimum Solaris OS is Solaris 10 10/09 with the complete Solaris 10 9/10 bundle.
2. SAS-1 expanders require minimum firmware 5.04.03 before the T3-1B is installed.
3. The prtdiag Chassis Serial Number is the Sun Blade 6000 serial number. (CR 6669159)
4. Disk power and data cables are molded into Backplane Assembly 530-4375.

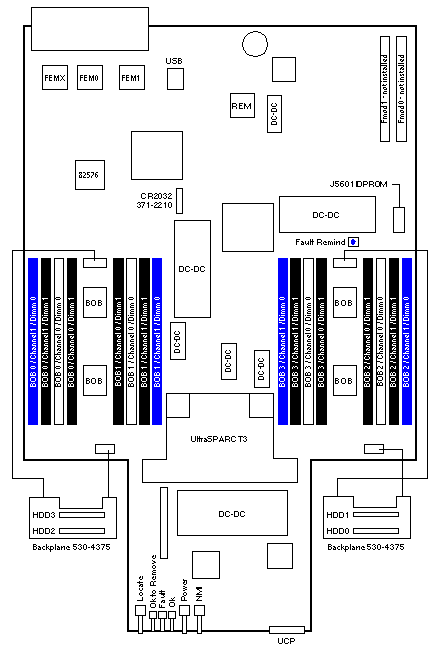

Memory Installation Notes

1. Install the first four DIMMs in the blue slots.
2. Install the second four DIMMs in the white slots.
3. Install the last eight DIMMs in the black slots.

References

1. SPARC T3-1B Server Product Notes
2. SPARC T3-1B Server Installation Guide
3. SPARC T3-1B Server Service Manual
4. SAS-1/SAS-2 Compatibility Upgrade Guide
