Servers: SPARC T3-1

511-1278 541-3857
System Board
UltraSPARC T3
16-Core 1.65GHz

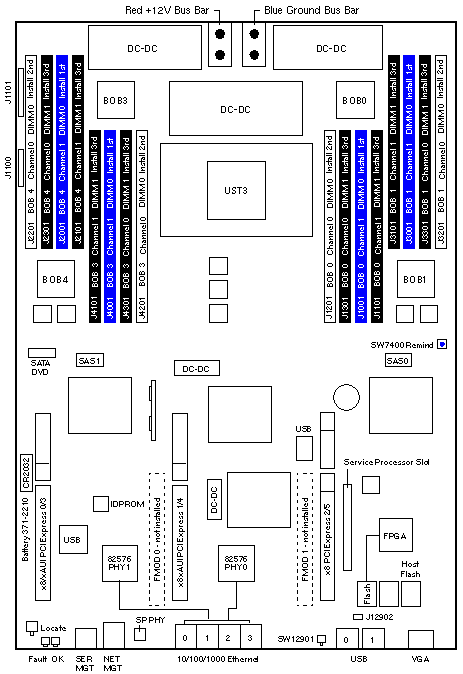

System Board FRU

Jumpers and Switches

LOCATION PINS SETTING DESCRIPTION
J12902 1-2 In Default Setting
J12902 2-3 In Clear Service Processor Password
SW1070 n/a n/a Locate Button
SW7400 n/a n/a Memory Fault Remind Button
SW12091 n/a n/a SP Physical Presense Detection

SPARC T3-1 Codename: Serpa

Notes

  1. The minimum operating system is Solaris 10 10/09 with the complete Solaris 10 9/10 bundle.

Memory Installation Notes

  1. Install the first four DIMMs in the blue slots.
  2. Install the second four DIMMs in the white slots.
  3. Install the last eight DIMMs in the black slots.
  4. Install Memory Filler 350-1288 in all unused slots.

References

  1. SPARC T3-1 Product Notes, 821-2059.
  2. SPARC T3-1 Installation Manual, 821-2062.
  3. SPARC T3-1 Service Manual, 821-2064.
