SPARC Enterprise T5440

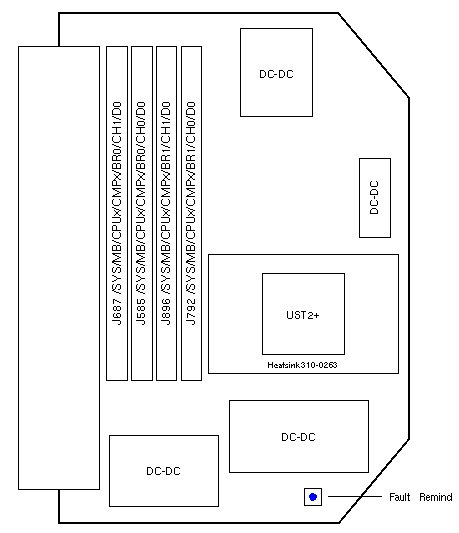

8-Core 1.2GHz CPU/Memory Module


501-7941 541-2754
8-Core 1.2GHz
CPU/Memory
FAB 270-7784
8-Core 1.2GHz
CPU/Memory FRU

SPARC Enterprise T5440 Codename: Batoka 4U

Notes

  1. The minimum configuration is four FB-DIMMs on the CPU/Memory board.
  2. All FBDIMMs within a single CPU/Memory module must have the same memory size.
  3. FBDIMMs on different CPU/Memory modules can be of different sizes.
  4. Mixing DDR2-667 and DDR2-800 Memory Modules is not supported.
  5. DDR2-800 Memory Modules are not compatible with 1.2GHz or 1.4GHz CPU Modules.

References

  1. SPARC Enterprise T5440 Server Product Notes, 820-3799.
  2. SPARC Enterprise T5440 Server Installation and Setup Guide, 820-3800.
  3. SPARC Enterprise T5440 Server Service Manual, 820-3801.



SPARC Enterprise T5440

8-Core 1.4GHz CPU/Memory Module


501-7940 541-2753
8-Core 1.4GHz
CPU/Memory
FAB 270-7784
8-Core 1.4GHz
CPU/Memory FRU

SPARC Enterprise T5440 Codename: Batoka 4U

Notes

  1. The minimum configuration is four FB-DIMMs on the CPU/Memory board.
  2. All FBDIMMs within a single CPU/Memory module must have the same memory size.
  3. FBDIMMs on different CPU/Memory modules can be of different sizes.
  4. Mixing DDR2-667 and DDR2-800 Memory Modules is not supported.
  5. DDR2-800 Memory Modules are not compatible with 1.2GHz or 1.4GHz CPU Modules.

References

  1. SPARC Enterprise T5440 Server Product Notes, 820-3799.
  2. SPARC Enterprise T5440 Server Installation and Setup Guide, 820-3800.
  3. SPARC Enterprise T5440 Server Service Manual, 820-3801.



SPARC Enterprise T5440

8-Core 1.6GHz CPU/Memory Module


511-1340 541-3790
8-Core 1.6GHz
CPU/Memory
FAB 271-1259
8-Core 1.6GHz
CPU/Memory FRU

SPARC Enterprise T5440 Codename: Batoka 4U

Notes

  1. The minimum configuration is four FB-DIMMs on the CPU/Memory board.
  2. All FBDIMMs within a single CPU/Memory module must have the same memory size.
  3. FBDIMMs on different CPU/Memory modules can be of different sizes.
  4. Mixing DDR2-667 and DDR2-800 Memory Modules is not supported.
  5. DDR2-800 Memory Modules are not compatible with 1.2GHz or 1.4GHz CPU Modules.

References

  1. SPARC Enterprise T5440 Server Product Notes, 820-3799.
  2. SPARC Enterprise T5440 Server Installation and Setup Guide, 820-3800.
  3. SPARC Enterprise T5440 Server Service Manual, 820-3801.
