SPARC Enterprise T5140 / T5240

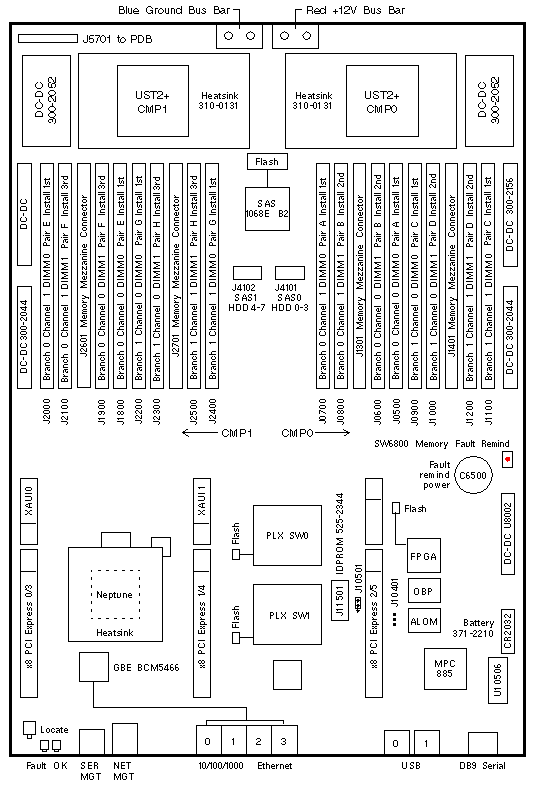

System Board Assembly

541-2529 541-2528 541-2931 541-2530
8-Core 1.2GHz FRU
501-7847 + 541-2523
6-Core 1.2GHz FRU
501-7846 + 541-2523
4-Core 1.2GHz FRU
511-1035 + 541-2523
8-Core 1.4GHz FRU
501-7848 + 541-2523
501-7847 501-7846 511-1035 501-7848
8-Core 1.2GHz
w/o Tray 541-2523
FAB 270-7846-03
6-Core 1.2GHz
w/o Tray 541-2523
FAB 270-7846-03
4-Core 1.2GHz
w/o Tray 541-2523
FAB 270-7846-03
8-Core 1.4GHz
w/o Tray 541-2523
FAB 270-7846-03
540-7908 540-7934 540-7938 540-7939 540-7940
8-Core 1.6GHz FRU
511-1344 + 541-2523
8-Core 1.4GHz FRU
511-1378 + 541-2523
4-Core 1.2GHz FRU
511-1391 + 541-2523
6-Core 1.2GHz FRU
511-1392 + 541-2523
8-Core 1.2GHz FRU
511-1393 + 541-2523
511-1344 511-1378 511-1391 511-1392 511-1393
8-Core 1.6GHz
w/o Tray 541-2523
FAB 270-7846-05
8-Core 1.4GHz
w/o Tray 541-2523
FAB 270-7846-05
4-Core 1.2GHz
w/o Tray 541-2523
FAB 270-7846-05
6-Core 1.2GHz
w/o Tray 541-2523
FAB 270-7846-05
8-Core 1.2GHz
w/o Tray 541-2523
FAB 270-7846-05

SPARC Enterprise T5140 Codename: Maramba 1U
SPARC Enterprise T5240 Codename: Maramba 2U

Notes

  1. The minimum operating system is Solaris 10 8/07.
  2. Handle 330-4979 was modified for proper fit and cable routing for HBA 375-3536.
  3. Handle 330-4979-02 has two notches. The change was in March 2008. (WO_38867)

Memory Notes

  1. Eight, twelve, and sixteen FBDIMM configurations are supported on the system board.
  2. Eight and sixteen FBDIMM configurations are supported on the memory mezzanine.
  3. The system board requires sixteen FBDIMMs before installing the memory mezzanine.
  4. All FBDIMMs within a CMP must have the same memory size.
  5. If Firmware is < 7.1.7.f, all FBDIMMs must have the same memory size.
  6. Specific Firmware levels support different memory sizes on different CMPs
    (i.e. FBDIMMs in CMP0 can have different memory size than those in CMP1.)
    Supported with Firmware 7.1.7.f.
    Supported with Firmware 7.2.2.e, 7.2.4.e and 7.2.4.f, but
    BugID 6879970 affects mixed memory configurations with these levels.
  7. Mixing 1.8V and 1.5V FBDIMMs is not supported.
  8. Low Voltage 1.5V FBDIMMs require System Firmware 7.1.6.d.

References

  1. SPARC Enterprise T5140 and T5240 Servers Product Notes, 820-3312.
  2. SPARC Enterprise T5140 and T5240 Servers Installation Guide, 820-3315.
  3. SPARC Enterprise T5140 and T5240 Servers Service Manual, 820-3318.
