SPARC Enterprise T5120 / T5220
System Board Assembly

541-2150 541-2153 541-2155 541-2156
8-Core 1.2GHz FRU
501-7781 + 541-1991
6-Core 1.2GHz FRU
501-7813 + 541-1991
8-Core 1.4GHz FRU
501-7812 + 541-1991
4-Core 1.2GHz FRU
501-7814 + 541-1991
501-7781 501-7813 501-7812 501-7814
8-Core 1.2GHz
w/o Tray 541-1991
6-Core 1.2GHz
w/o Tray 541-1991
8-Core 1.4GHz
w/o Tray 541-1991
4-Core 1.2GHz
w/o Tray 541-1991


540-7768 540-7766 540-7765
4-Core 1.2GHz FRU
511-1200 + 541-1991
8-Core 1.4GHz FRU
511-1198 + 541-1991
8-Core 1.2GHz FRU
511-1087 + 541-1991
511-1200 511-1198 511-1087
4-Core 1.2GHz
w/o Tray 541-1991
8-Core 1.4GHz
w/o Tray 541-1991
8-Core 1.2GHz
w/o Tray 541-1991

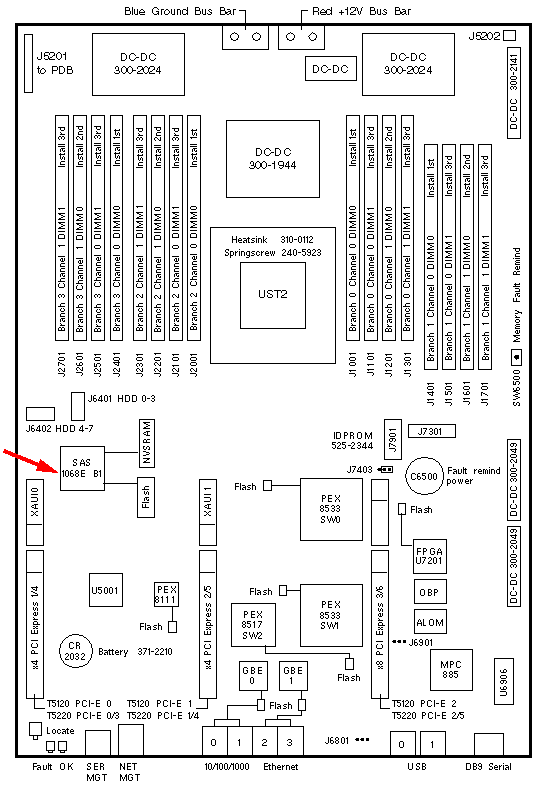

Headers, Jumpers, LEDs, and Switches

LOCATION PINS SETTING DESCRIPTION
J5201 34 NA To Power Distribution Board
J5202 10 NA Unused Connector
J6401 36 NA SAS HDD0-3
J6402 36 NA SAS HDD4-7
J6801 3 Out Unused MPC GPIO
J6901 1-2
2-3
In
Out
SSP Flash Select_7 (default)
SSP Flash Select_6 (default)
J7301 38 NA FBGA Debug Connector
J7403 3 1-2 Unknown
SW5301 NA NA Locate Button
SW6500 NA NA Memory Fault Remind Button

SPARC Enterprise T5120 Codename: Huron 1U, Huron 1U+
SPARC Enterprise T5220 Codename: Huron 2U, Huron 2U+

Notes

  1. The minimum operating system is Solaris 10 8/07.

Memory Notes

  1. Four, eight, and sixteen FBDIMM configurations of the same FBDIMM are supported.
  2. All FBDIMM's in a Branch must have the same Sun part number.
  3. All FBDIMM's in the server must be the same capacity.
  4. The minimum requirement is four FBDIMMs in the Channel 0, DIMM 0 slots.

References

  1. SPARC Enterprise T5120 and T5220 Product Notes, 820-2176.
  2. SPARC Enterprise T5120 and T5220 Installation Guide, 820-2178.
  3. SPARC Enterprise T5120 and T5220 Service Manual, 820-2181.



System Board Assembly

540-7970 540-7968 540-7969 540-7884
4-Core 1.2GHz FRU
511-1415 + 541-1991
8-Core 1.2GHz FRU
511-1413 + 541-1991
8-Core 1.4GHz FRU
511-1414 + 541-1991
8-Core 1.6GHz FRU
511-1320 + 541-1991
511-1415 511-1413 511-1414 511-1320
4-Core 1.2GHz
w/o Tray 541-1991
8-Core 1.2GHz
w/o Tray 541-1991
8-Core 1.4GHz
w/o Tray 541-1991
8-Core 1.6GHz
w/o Tray 541-1991

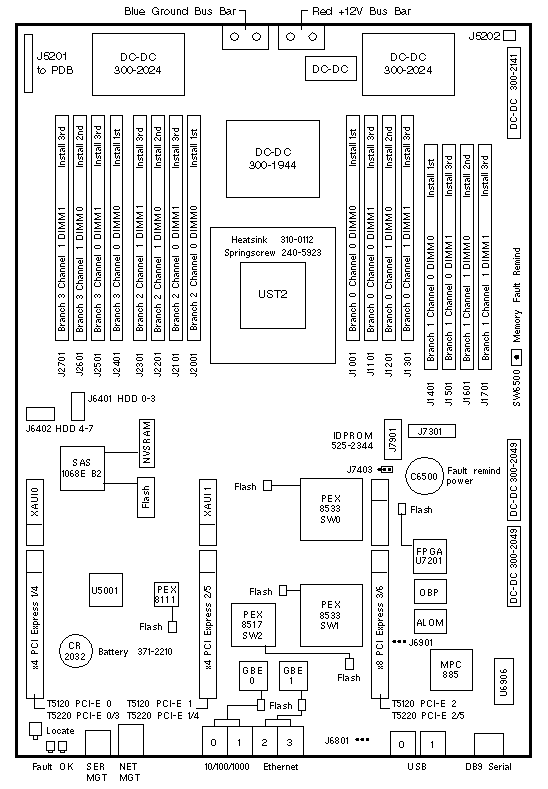

Connectors and Jumpers

LOCATION PINS SETTING DESCRIPTION
J5201 34 n/a To Power Distribution Board
J5202 10 n/a Unused Connector
J6401 36 n/a SAS HDD0-3
J6402 36 n/a SAS HDD4-7
J6801 3 Out Unused MPC GPIO
J6901 1-2
2-3
In
Out
SSP Flash Select_7 (default)
SSP Flash Select_6 (default)
J7301 38 n/a FBGA Debug Connector
J7403 3 1-2 Unknown
SW5301 n/a n/a Locate Button
SW6500 n/a n/a Memory Fault Remind Button

SPARC Enterprise T5120 Codename: Huron 1U++
SPARC Enterprise T5220 Codename: Huron 2U++

Notes

  1. The minimum operating system is Solaris 10 8/07.
  2. The minimum System Firmware for 1.6GHz system boards is 7.2.2.e.

Memory Notes

  1. Four, eight, and sixteen FBDIMM configurations of the same FBDIMM are supported.
  2. All FBDIMM's in a Branch must have the same Sun part number.
  3. All FBDIMM's in the server must be the same capacity.
  4. The minimum requirement is four FBDIMMs in the Channel 0, DIMM 0 slots.

References

  1. SPARC Enterprise 5120 and T5220 Product Notes, 820-2176.
  2. SPARC Enterprise 5120 and T5220 Installation Guide, 820-2178.
  3. SPARC Enterprise 5120 and T5220 Service Manual, 820-2181.
