Sun Blade T6340

501-7984
System Board
541-3299 541-3007 541-3008
6-Core 1.2GHz FRU
Assembly 541-3298
T6340-AA261200
T6340-AA261200B
8-Core 1.2GHz FRU
Assembly 541-3005
T6340-AA281200
T6340-AA281200B
8-Core 1.4GHz FRU
Assembly 541-3006
T6340-AA281400
T6340-AA281400B

Sun Blade T6340 Codename: Scottsdale

Notes

  1. The minimum Solaris operating system is Solaris 10 4/08.

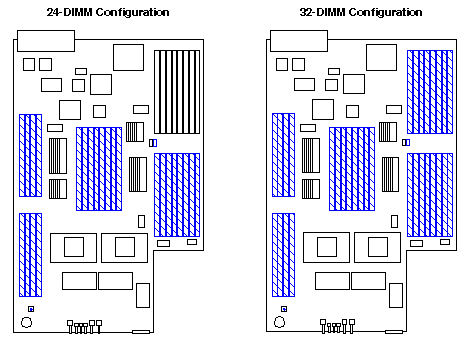

Memory Installation Notes

  1. Supported memory configurations include 8, 16, 24, or 32 DIMMs.
  2. Install eight CMP 0 and CMP 1 DIMM 0 slots first.
  3. Install eight CMP 0 and CMP 1 DIMM 1 slots next.
  4. Install eight CMP 0 DIMM 2 and DIMM 3 slots next.
  5. Install eight CMP 1 DIMM 2 and DIMM 3 slots last.
  6. If memory size is mixed, the smallest size is used to calculate total system memory.
  7. Eight DIMM configurations require Filler 330-4839 in J1401, J1501, and J1601.
  8. Sixteen DIMM configurations require Filler 330-4839 in J1501 and J1601.

References

  1. Sun Blade T6340 Installation and Administration Guide, 820-3900.
  2. Sun Blade T6340 Server Module Product Notes, 820-3901.
  3. Sun Blade T6340 Server Module Service Manual, 820-3902.
  4. Sun Integrated Lights Out Manager 2.0 Uner's Guide, 820-1188.
  5. Sun Integrated Lights Out Manager 2.0 Supplement for Sun Blade T6340, 820-3904.
