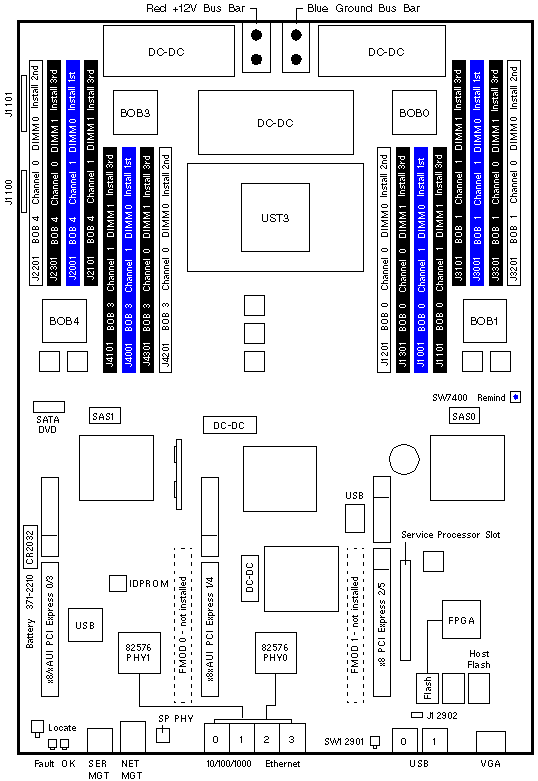

System Board
UltraSPARC T3
16-Core 1.65GHz
System Board FRU

Jumpers and Switches

LOCATION PINS SETTING DESCRIPTION
J12902 1-2 In Default Setting
J12902 2-3 In Clear Service Processor Password
SW1070 n/a n/a Locate Button
SW7400 n/a n/a Memory Riser Fault Remind Button
SW12901 n/a n/a SP Physical Presense Detection

Netra SPARC T3-1 Codename: Madrid

Notes

  1. The minimum OS is Solaris 10 10/09 with patches.
  2. The ALOM command-line compatibility shell is not supported.

Memory Installation Notes

  1. Install the first four DIMMs in the blue slots.
  2. Install the second four DIMMs in the white slots.
  3. Install the last eight DIMMs in the black slots.
  4. Install DIMM Filler 350-1288 in all unused DIMM slots.

References

  1. Netra SPARC T3-1 Server Installation Guide
  2. Netra SPARC T3-1 Server Product Notes
  3. Netra SPARC T3-1 Server Service Manual
