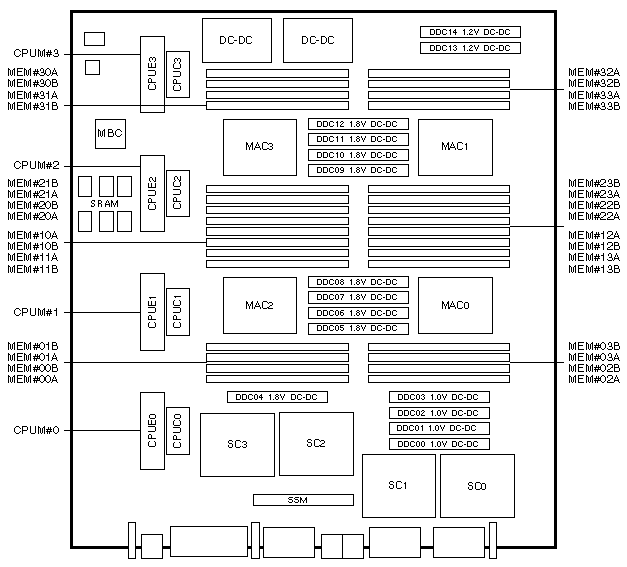

CPU/Memory Board

Servers: Sun SPARC Enterprise M8000 / M9000


371-2214
CMU

Notes

  1. The minimum CPU requirement is two CPU Modules.
  2. The minimum memory requirement is sixteen DIMMs.
  3. Group A memory must be equal to or larger than Group B memory.
  4. Install the first sixteen DIMMs in slots ending in A (Group-A/Memory Module#0).
  5. Install the second sixteen DIMMs in slots ending in B (Group-B/Memory Module#1).
  6. Socket DDC04 was removed from 371-2214-06 in August 2009. (WO_41779)

References

  1. SPARC Enterprise M8000/M9000 Servers Installation Guide, 819-4200.
  2. SPARC Enterprise M8000/M9000 Servers Service Manual, 819-4202.
  3. Refer to M8000/M9000 Hardware Documentation for Product Notes for different XCP versions.
  4. Refer to SPARC64 VII CPU Upgrade Configurations for High-End Servers document for rules about mixing CPUs.

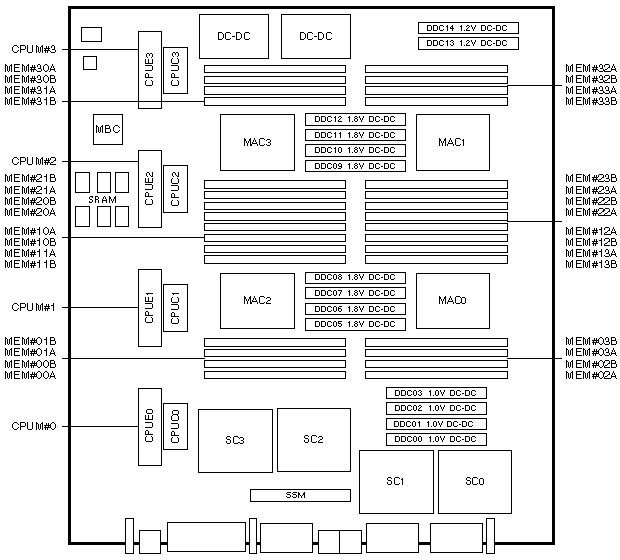

CPU/Memory Board

Servers: Sun SPARC Enterprise M8000 / M9000


371-4617 371-4930
CMU w/ MAC+
CMU_C

Notes

  1. The minimum CPU requirement is two CPU Modules.
  2. The minimum memory requirement is sixteen DIMMs.
  3. Group A memory must be equal to or larger than Group B memory.
  4. Install the first sixteen DIMMs in slots ending in A (Group-A/Memory Module#0).
  5. Install the second sixteen DIMMs in slots ending in B (Group-B/Memory Module#1).
  6. Socket DDC04 is not installed on board 371-4617 or 371-4930.

References

  1. SPARC Enterprise M8000/M9000 Servers Installation Guide, 819-4200.
  2. SPARC Enterprise M8000/M9000 Servers Service Manual, 819-4202.
  3. Refer to M8000/M9000 Hardware Documentation for Product Notes for different XCP versions.
  4. Refer to SPARC64 VII CPU Upgrade Configurations for High-End Servers document for rules about mixing CPUs.
