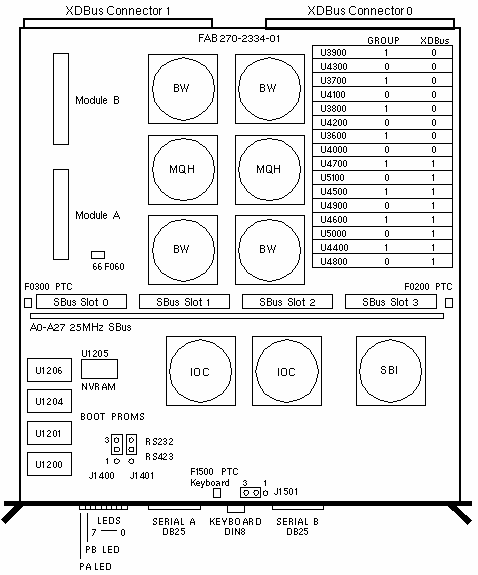

SPARCcenter 2000E

501-2718
0MB FRU
w/o SPARC Module

Jumper Settings

JUMPER PINS SETTING DESCRIPTION
J1200
J1201
J1200
J1201
1-2
1-2
2-3
2-3
Out
Out
In
In
RS-423
RS-423
RS-232 +12V (default)
RS-232 -12V (default)
J1501 1-2
2-3
Out
In
Factory use only
Factory setting

Configured System Boards

PART# MEMORY SIMM MODULE
501-2672 256MB 32MB 2 SM61-2
501-2719 0MB - 2 SM61-2
501-2723 128MB 8MB 2 SM61-2
501-2999 0MB - 2 SM81-2
501-3034 256MB 32MB 2 SM81-2
501-3035 256MB 32MB 2 SM81-2
501-3036 128MB 8MB 2 SM81-2
501-3037 512MB 32MB 2 SM81-2

Notes

  1. The minimum operating system is Solaris 2.3.
  2. Solaris 2.3 supports 20 SuperSPARC modules on 10 system boards.
  3. The SM81-2 requires Solaris 2.4 and Patch >=101945-35.
  4. Boot PROMs >=2.18 disable 40MHz System Boards if they are installed in systems using the 50MHz Control Board.
  5. Install the highest level Boot PROM set in System Board 0.
  6. Use SPARC module and SBus board Standoff 330-1664-01.
  7. A root partition >2GB is not supported by Sun-4c, 4m, or 4d systems.

Memory Configuration Notes

  1. The minimum memory configuration is 8 SIMMs in Group 0.
  2. Use 8MB SIMM 501-1817 and 32MB SIMM 501-2196.
  3. Install all Group 0 SIMMs on all system boards from the lowest board slot number to the highest. Then install SIMMs in Group 1 on all system boards, followed by Group 2 and Group 3. Refer to the Memory Module Installation Guide for performance guidelines.

References

  1. SPARCcenter 2000 Installation Manual, 800-6975.
  2. SPARCcenter 2000 System Board Manual, 800-6993.
  3. BugID 4035259 filed against root partition >2GB.

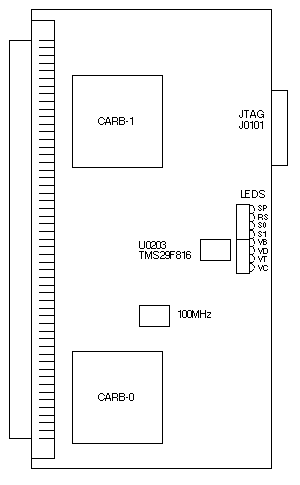

50MHz Control Board

SPARCcenter 2000E

501-2666 501-2674
Programmed Unprogrammed

LED Description

LED SIGNAL DESCRIPTION COLOR
SP SVP Service processor attached Yellow
RS RST System reset Yellow
S0 STP0 Stop request from CARB0 ASIC Yellow
S1 STP1 Stop request from CARB1 ASIC Yellow
VB Vbb -12 Volts DC status OK Green
VD Vdd +12 Volts DC status OK Green
VT Vtt +1.2 Volts DC status OK Green
VC Vcc +5 Volts DC status OK Green

Notes

  1. The 50MHz Control Board is not compatible with the SC2000 System Board and SuperSPARC modules that run at 40MHz on the XDBus.
  2. Boot PROMs >=2.18 disable 40MHz System Boards if they are installed in systems using the 50MHz Control Board.
  3. The HOSTID and Ethernet Address are programmed into a 2KB × 8-bit Flash EEPROM in the TMS29F816 at U0203. The TMS29F816 is not field replaceable.
  4. The HOSTID and Ethernet Address are downloaded from the control board to the NVRAM on all system boards during POST.
  5. If the control board EEPROM content is invalid, the values stored in the NVRAM on System Board 0 are used.
  6. The Yellow LED on the keyswitch interface board is ON if the control board EEPROM content is invalid.
  7. Use the update-system-idprom OBP command to download the contents of the NVRAM on System Board 0 to a control board with an invalid EEPROM. OBP 2.11 is required.
  8. Use the following command sequence to invalidate the control board EEPROM:
    ok patch noop call update-system-idprom
    ok patch noop call update-system-idprom
    ok patch call noop update-system-idprom
    Power the system off and remove the Control Board.
  9. Use the following commands to change the NVRAM parameter that defines the location of the master system board:
    ok clear-master-nvram
    ok reset

Reference

SPARCcenter 2000 Service Manual, 801-2007.
