Sun Datacenter Switch 648

Codename: Magnum M9

2800A-Z X2801A-Z X2802A-Z
Base Switch
Fabric Card + Fans
72-Port Line Card

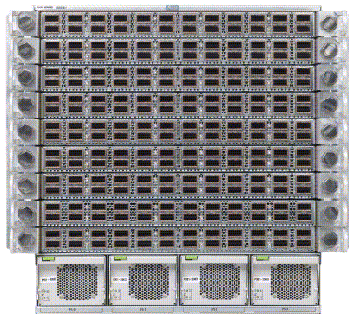

Front View
Rear View

Table Legend
[C] = Customer Replaceable Unit (CRU)

Additional Parts

PART # DESCRIPTION
597-0080
300-2133 [C]
541-3807 [C]
541-3811
540-7924 [C]
541-3748 [C]
541-3824 [C]
375-3623
541-3708
541-3808
Base Configuration
A234 2900 Watt Power Supply,
Chassis Management Controller (-04),
Fabric Card Assembly (-04),
Fabric Card (-04),
Fan Module (-02),
Chassis with Midplane,
Midplane,
Chassis,
Power Distribution Board Assembly,
350-1292 Line Card Filler,
530-2889 RJ45 to DB25 Serial Port Adapter,
530-3100 RJ45F to DB9F Adapter,
530-3623 Shielded RJ45 to RJ45 Cable, 4M,
540-7923 [C] Fabric Card Filler without Fan,
541-3810 [C] 72-Port Line Card,
X2801A-Z Fabric Card Assembly 541-3811
X2802A-Z 72-Port Line Card Assembly 541-3810
X2808A-Z Fabric Card Filler 540-7923 + Fan Module 541-3748
X2809A-Z Line Card Filler 350-1292
X2812-BASE
X2812-SUPPORTS
X2812-SUPPORTM
X2812-SUPPORTL
Cable Management Kit
Short Cable Support Kit
Medium Cable Support Kit
Long Cable Support Kit
X2880-10M
X2880-20M
X2881-10M
X2881-20M
10 Meter Optical QDR 12x InfiniBand cable,
20 Meter Optical QDR 12x InfiniBand cable,
10 Meter QDR 12x InfiniBand splitter cable
20 Meter QDR 12x InfiniBand splitter cable
X6828A
X6829A
X6856A
X6859A
XSR-JUMP-2MC19
XSR-JUMP-1MC19
NEMA L6-20P to IEC 320 C19 Power Cord, 4.0M, 180-2005
Blue 16A IEC 309 to IEC 320 C19 Power Cord, 4.0M, 180-2004
Blue 20A Watertight IEC 309 to IEC 320 C19 Power Cord, 4.0M, 180-2060
Blue 16A Watertight IEC 309 to IEC 320 C19 Power Cord, 4.0M, 180-2061
20A/250V 90 IEC 320 Sheet I to IEC 320 C19 Cord, 2M, 180-2381
20A/250V 90 IEC 320 Sheet I to IEC 320 C19 Cord, 1M, 180-2382

References

  1. Sun Datacenter Switch 648 Installation Guide, 820-7738.
  2. Sun Datacenter Switch 648 Administration Guide, 820-7739.
  3. Sun Datacenter Switch 648 Service Manual, 820-7740.
  4. Sun Datacenter Switch 648 Command Reference, 820-7741.
  5. Sun Datacenter Switch 648 Product Notes, 820-7743.
