StorEdge Network 2GB FC Switch-8

Codename: Viper-2

Option SG-XSW8-2GB

370-5657 540-5554
QLogic SANbox2A-8 FRU Assembly

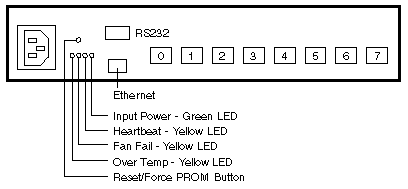

Front View

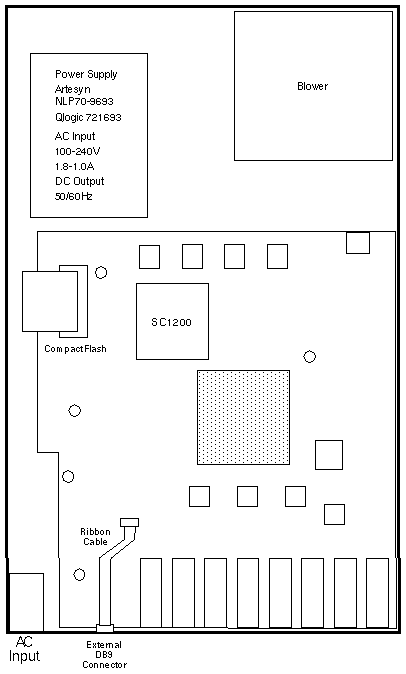

Top View with Cover Removed

Fibre Cables

OPTION FRU PART # DESCRIPTION
X9721A 537-1036 0.4 Meter LC-SC Fibre Channel Cable
X9722A 537-1035 2 Meter LC-SC Fibre Channel Cable
X9723A 537-1033 5 Meter LC-SC Fibre Channel Cable
X9724A 537-1034 15 Meter LC-SC Fibre Channel Cable
X9732A 537-1041 2 Meter LC-LC Fibre Channel Cable
X9733A 537-1042 5 Meter LC-LC Fibre Channel Cable
X9734A 537-1043 15 Meter LC-LC Fibre Channel Cable
X9735A 537-1053 25 Meter LC-SC Fibre Channel Cable
X9736A 537-1051 25 Meter LC-LC Fibre Channel Cable
X9737A 537-1055 50 Meter LC-SC Fibre Channel Cable
X9738A 537-1052 50 Meter LC-LC Fibre Channel Cable

Parts Breakdown

Table Legend
[F] = Field Replaceable Unit (FRU)

PART # DESCRIPTION
595-6742
180-1949
340-7668
340-7669
340-7670
340-7673
340-7676
540-4558
540-5554
330-2305
370-5657
565-1735
Network 2GB FC Switch-8
AC Y Power Cord (Option X319YA)
Mounting Tray
Right Mounting Rail (replaced by 565-1735)
Left Mounting Rail (replaced by 565-1735)
Tray Adapter Bracket
Rear Bracket
2U Vented Panel
Switch Assembly/FRU
Hub Retainer
8-Port Switch
Rack Mount Kit

Field Replaceable Units

PART # DESCRIPTION
370-5211 [F]
370-5212 [F]
Short Wave SFP
Long Wave SFP
370-5517 [F]
370-5518 [F]
Loopback plug, 50/125 multimode
Loopback plug, 9/125 singlemode

Notes

  1. Forced PROM mode sets the default IP address 10.0.0.1.
  2. SFPs (Small Formfactor Pluggables) are not included with the switch.
  3. Short Wave SFP - Option XSFP-SW-2GB, FRU 370-5211
  4. Long Wave SFP - Option XSFP-LW-2GB, FRU 370-5212

References

  1. Sun StorEdge Network 2GB FC Switch-8 and Switch-16 Release Notes, 817-0770.
  2. Sun StorEdge SAN 4.0 Release Guide to Documentation, 816-4470.
  3. Sun StorEdge SAN 4.0 Release Field Troubleshooting Guide, 816-6580
  4. SANbox2-8c Channel Switch Installer's/User's Manual, Qlogic 59042-00 (Publication No. 875-3364-01 Rev B).
  5. SANbox2 Switch Management User's Manual, Qlogic 59022-03 (Publication No. 875-3264-01 Rev C).
  6. Qlogic documentation is available from SAN Solutions "SunSwitch Resources"
