StorEdge Network 2GB FC Switch-16

Codename: Viper-2

Option SG-XSW16-2GB

370-5269 540-5404
QLogic SANbox2A-16 FRU Assembly

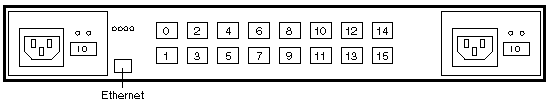

Front View

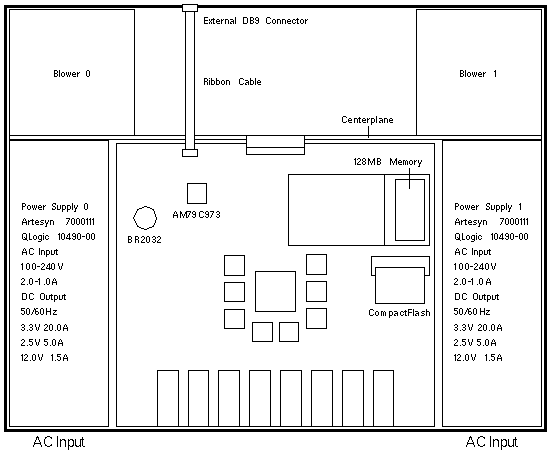

Top View with Cover Removed

Fibre Cables

OPTION FRU PART # DESCRIPTION
X9720A 130-4723 SC-SC Fibre Channel Cable Coupler
X9721A 537-1036 0.4 Meter LC-SC Fibre Channel Cable
X9722A 537-1035 2 Meter LC-SC Fibre Channel Cable
X9723A 537-1033 5 Meter LC-SC Fibre Channel Cable
X9724A 537-1034 15 Meter LC-SC Fibre Channel Cable
X9732A 537-1041 CBL, 2M, FC, LC-LC, MM,1.6 PLENUM
X9733A 537-1042 CBL, 5M, FC, LC-LC, MM,1.6 PLENUM
X9734A 537-1043 CBL, 15M, FC, LC-LC, MM,1.6 PLENUM

Parts Breakdown

Table Legend
[F] = Field Replaceable Unit (FRU)

PART # DESCRIPTION
595-6424
180-1949 [F]
340-7547
540-4558
540-5404 [F]
340-7546
370-5269
565-1735
370-5401 [F]
370-5407 [F]
Network 2GB FC Switch-16
AC Y Power Cord (Option X319YA)
1U Mounting Rail (replaced by 565-1735)
2U Vented Panel
Switch Assembly/FRU
Slide Bracket
16-Port Switch
Rack Mount Kit
2GB Switch Power Supply
2GB Switch Fan

Field Replaceable Units

PART # DESCRIPTION
370-5401 [F]
370-5407 [F]
370-5211 [F]
370-5212 [F]
370-5517 [F]
370-5518 [F]
Power Supply
Fan
Short Wave SFP
Long Wave SFP
Loopback plug, 50/125 multimode
Loopback plug, 9/125 singlemode

Notes

  1. SFPs (Small Formfactor Pluggables) are not included with the switch.
  2. Short Wave SFP - Option XSFP-SW-2GB, FRU 370-5211
  3. Long Wave SFP - Option XSFP-LW-2GB, FRU 370-5212

References

  1. Sun StorEdge Network 2GB FC Switch-8 and Switch-16 Release Notes, 817-0770.
  2. Sun StorEdge SAN 4.0 Release Guide to Documentation, 816-4470.
  3. Sun StorEdge SAN 4.0 Release Field Troubleshooting Guide, 816-6580
  4. SANbox2-16 Channel Switch Installer's/User's Manual, Qlogic 59021-03 (Publication No. 875-3263-01 Rev B).
  5. SANbox2 Switch Management User's Manual, Qlogic 59022-03 (Publication No. 875-3264-01 Rev C).
  6. Qlogic documentation is available from SAN Solutions "SunSwitch Resources"
