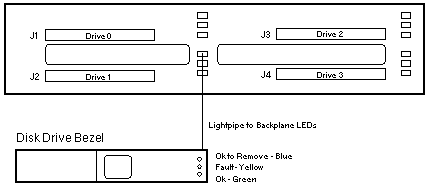

4-Slot SAS Disk Backplane

Servers:

Sun Fire X4600, X4600 M2, X4640 SPARC Enterprise T5440

501-7049
L

Solder Side View

Component Side View

Sun Fire X4600 Codename: Galaxy 4U Sun Fire X4600 M2 Codename: Stuttgart Sun Fire X4640 Codename: Phoenix SPARC Enterprise T5440 Codename: Batoka

References

1. Integrated Lights-Out Manager Administration Guide for ILOM 1.0, 819-1160.
2. Integrated Lights-Out Manager Administration Guide for ILOM 1.1.1, 820-0280.
3. Sun Fire X4600 Server Installation Guide, 819-4341.
4. Sun Fire X4600 Server Service Manual, 819-4342.
5. Sun Fire X4600 Server Diagnostics Guide, 819-4343.
6. Sun Fire X4600 Server Product Notes, 819-4347.
7. Integrated Lights Out Manager for Sun Fire X4600 Server, 819-5432.
8. Sun Fire X4640 Server Installation Guide, 821-0240.
9. Sun Fire X4640 Server Service Manual, 821-0243.
10. Sun Fire X4640 Server Product Notes, 821-0245.
11. Sun SPARC Enterprise T5440 Server Product Notes, 820-3799.
12. Sun SPARC Enterprise T5440 Server Installation and Setup Guide, 820-3800.
13. Sun SPARC Enterprise T5440 Server Service Manual, 820-3801.
