Dual FastEthernet / Dual SCSI Ultra-2 PCI Adapter

Codename: Cauldron

Workstations: Ultra 30, 60, 80
Sun Blade 100, 150, 1000, 1500, 2000, 2500
Servers: Sun Fire V120, V210, V240, V250, V440
Sun Fire 12K, 15K, E20K, E25K
Sun Fire 4800, 4810, 6800, E2900, E4900, E6900
Sun Fire V1280, V480, V490, V880, V880z, V890
Sun Fire 280R
Enterprise 220R, 250, 420R, 450, 10000
Telco: Netra 120, 1280, 20, 240
Netra T1 AC200, T1 DC200
Netra t 1120, t 1125, t 1400, t 1405
Disk Arrays: StorEdge 3120, 3310, 3320, D240, S1

Option 2222

501-5727
3.3/5V 32/64Bit 33/66MHz

Notes

  1. Each SCSI interface supports Single-Ended (SE) or Low Voltage Differential (LVD) SCSI connections.
  2. The minimum OS announced on 9/25/01 was Solaris 8 10/01.
  3. The minimum OS announced on 3/12/02 was Solaris 8 2/02.
  4. The F12K / F15K AXQ ASIC requires Solaris 8 Patch >=108528-13.
  5. The F12K / F15K requires Patch >=109885-08 to boot Solaris 8 10/01.
  6. The F48x0/6800 requires Patch >=109885-08 to boot Solaris 8 10/01.
  7. 501-5727-05 was cancelled by WO_27194. No boards were built or shipped.

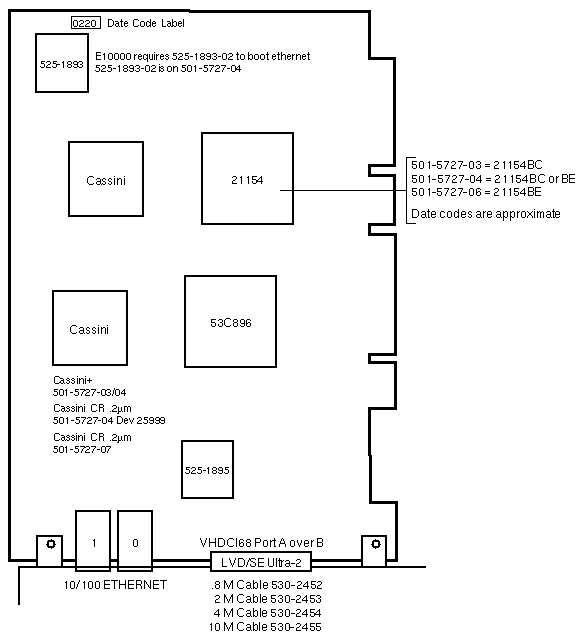

  8. 501-5727-04 or lower with the BC bridge chip (see 21154 in board picture) may cause a panic during boot on SunFire 12K/15K systems.
    See FCO A0219-1 for details, including instructions on determining the bridge chip code.
  9. Refer to Sun Alert article 1000479.1 for information about forced mode with the CE driver.

Reference

Dual FastEthernet and Dual SCSI/P Adapter Installation and User's Guide, 806-6052.
