8.4-Gbyte Disk Card

Servers:

SPARCserver 1000, disktower 1000

Option 775

501-2588	501-2980
w/o Disks	w 4× 2.1GB Disks 7200 RPM Disk FRU 540-2706

Notes

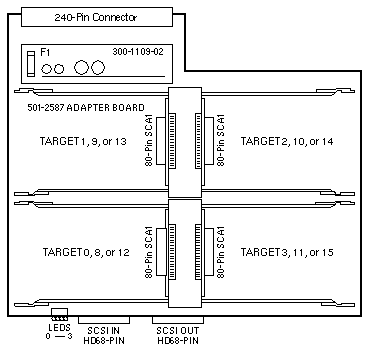

1. Backplane Slot 0 sets drive addresses to Targets 0, 1, 2, and 3.
2. Backplane Slot 1 sets drive addresses to Targets 8, 9, 10, and 11.
3. Backplane Slot 2 sets drive addresses to Targets 0, 1, 2, and 3.
4. Backplane Slot 3 sets drive addresses to Targets 12, 13, 14, and 15.
5. An SWIS/S card is required if only one system board is installed.
6. The 42W DC-DC Converter 300-1109 is not field replaceable.
7. Use Single-Ended Wide-SCSI Terminator 150-2267.

Reference

Disk Card Installation Manual, 802-3533.
