iSCSI RAID Controller Tray

Disk Arrays:

StorageTek 2510

Option XTA-2510-CTRL-512M

540-7306	375-3518
Battery 371-2482 iSCSI RAID 375-3518	SAS Base Board with iSCSI Daughter Board w/o Battery 371-2482

Notes

1. SAS Base Board P20966 is used in FCAL, iSCSI, and SAS configurations.

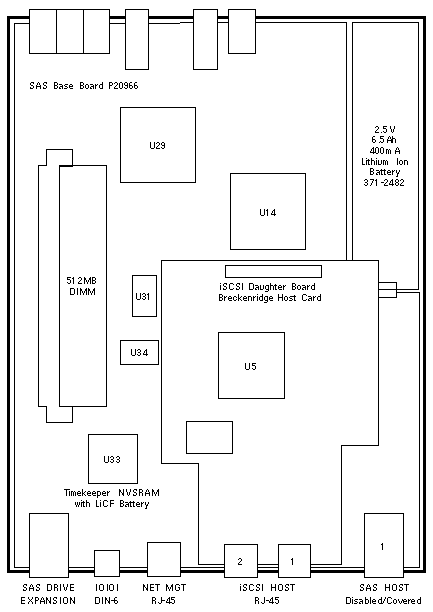

2. iSCSI RAID Controller Tray 375-3518 includes SAS Base Board P20966, iSCSI Daughter Board, and sheetmetal tray.
3. The SAS Base Board does not have a separate Sun part number.
4. The iSCSI Daughter Board does not have a separate Sun part number.
5. Single controller configurations with firmware 07.35.10.10 requires CAM >=6.2.
6. Firmware 07.35.10.10 is on 375-3518-03. (Reference WO_40339 and GSAP 4547)

References

1. StorageTek 2500 Series Array Hardware Installation Guide, 820-0015.
2. StorageTek 2500 Series Array Hardware Release Notes, 820-4349.
3. StorageTek 2500 Single Controller Replacement Notes, 820-6363.

Notes

1. SAS Base Board P20966 is used in FCAL, iSCSI, and SAS configurations.

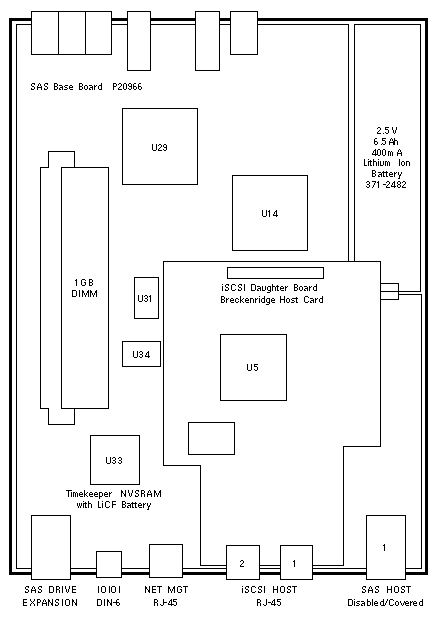

2. iSCSI RAID Controller Tray 375-3594 includes SAS Base Board P20966, iSCSI Daughter Board, and sheetmetal tray.
3. The SAS Base Board does not have a separate Sun part number.
4. The iSCSI Daughter Board does not have a separate Sun part number.

References

1. StorageTek 2500 Series Array Hardware Installation Guide, 820-0015.
2. StorageTek 2500 Series Array Hardware Release Notes, 820-4349.
3. StorageTek 2500 Single Controller Replacement Notes, 820-6363.
