5GB 4 mm DDS-1 Tape Drive

Servers: SPARCserver 1000

Options 821 / 822 / 823 / 6251 / 6252

370-1571 370-2088
Archive 4324RP
Light Grey Bezel
Backup Pack
Archive 4324RP
Light Grey Bezel
UniPack

Front View

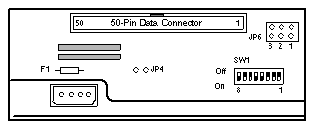

Rear View

Address Select Switch Cable

In the Desktop Backup Pack, orient the Flex Cable as shown, and plug it into JP6.
In the SPARCstorage UniPack, orient the Address Cable as shown, and plug it into JP6.

Power

0.63 Amps @ +5Vdc
0.38 Amps @ +12Vdc
7.7 Watts

Jumper and Switch Settings

JP4
PINS SETTING DESCRIPTION
1-2 Out Disable TERMPWR to bus
1-2 In Enable TERMPWR to bus

Jumper JP6
SCSI ID 3 2 1
0 Out Out Out
1 Out Out In
2 Out In Out
3 Out In In
4 In Out Out
5 In Out In
6 In In Out

SW1
SWITCH SETTING DESCRIPTION
1 Off Enable SCSI ID 0 = 20
2 Off Enable SCSI ID 1 = 21
3 Off Enable SCSI ID 2 = 22
4 On Enable SCSI-2 mode
5 On Enable Parity
6 Off Enable data compression
7 Off Reserved for factory use
8 On Enable power-on self test

Notes

  1. The minimum operating system is Solaris 1.1.1 or Solaris 2.1.
  2. Solaris 2.1 writes in high-density mode only.
  3. Solaris 2.1 reads in low-density or high-density mode.
  4. Solaris 2.2 reads and writes in low-density or high-density mode.
  5. The Blank Tape part number is 370-1612-01.
  6. The Cleaning Kit part number is 370-1613-01.
  7. Firmware update tape 4.CDA-24 is part number 370-3006-01.
  8. Firmware update tape 4.CDB-24 is part number 370-3269-01.

Reference

5Gbyte 4mm Backup Tape Drive Server Installation Manual, 801-4623.
