16X DVD-ROM Writer / 48X CD-ROM Writer

Sun Java Workstation W1100z / W2100z

Option 9221

370-7630
AOpen DUW1608
ATAPI/IDE Interface
1 5/8" Height
16x DVD-ROM Read
16x/4x DVD+R/RW Write
8x/4x DVD-R/RW Write
48x CD-ROM Read
48x/32x CD-R/RW Write

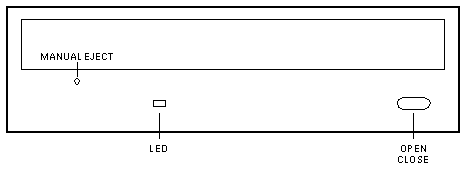

Front View (AOpen DUW1608)

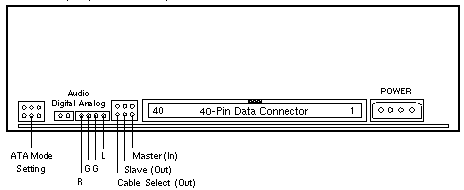

Rear View (AOpen DUW1608)

Notes

  1. Alternate sources for 370-7630 may be used without notice.
  2. There is no Sun part number for the CD to Motherboard Audio Cable.
  3. W1100z and W2100z standard configurations include CD/DVD Combo 370-6789.



16X DVD-ROM Writer / 48X CD-ROM Writer

Sun Fire V890

390-0290 541-1840
TSST TS-H552D
ATAPI/IDE Interface
1 5/8" Height
L
V890 Assembly
DVD 390-0290
Bracket 541-1325
No Option
L
16x DVD-ROM Read
16x/6x DVD-R/RW Write
16x/8x DVD+R/RW Write
48x CD-ROM Read
48x/32x CD-R/RW Write

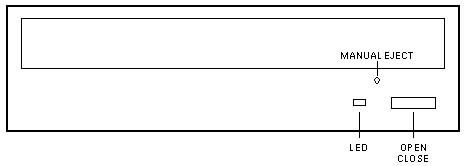

Front View (Generic TS-H552D)

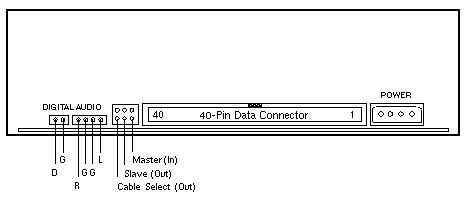

Rear View (Generic DVD-ROM)

Notes

  1. Drive 390-0290 and Assembly 541-1840 were released in June 2006. (WO_33459)
  2. Assembly 541-1840 became the manufacturing substitute for 541-2478.



16X DVD-ROM Writer / 48X CD-ROM Writer

StorEdge D240

390-0340 540-7092
Lite-On SHM-165P6S
ATAPI/IDE Interface
1 5/8" Height
D240 FRU
DVD 390-0340
L
16x DVD-ROM Read
16x/6x DVD-R/RW Write
16x/8x DVD+R/RW Write
48x CD-ROM Read
48x/24x CD-R/RW Write

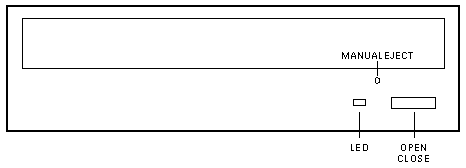

Front View (Generic SHM-165P6S)

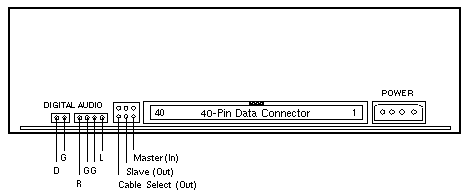

Rear View (Generic DVD-ROM)

Notes

  1. Drive 390-0340 and Assembly 540-7092 were released in September 2006. (WO_33661)



16X DVD-ROM Writer / 48X CD-ROM Writer

Sun Fire V890
StorEdge D240

Option X5887AZ

390-0346 390-0405 540-7092 541-2478
TSST TS-H652D
ATAPI/IDE Interface
1 5/8" Height
L
TSST TS-H652J
ATAPI/IDE Interface
1 5/8" Height
D240 FRU
DVD 390-0346
DVD 390-0405
Option X5887AZ
L
V890 Assembly
DVD 390-0346
DVD 390-0405
Bracket 541-1325
No Option
L
16x DVD-ROM Read
18x/6x DVD-R/RW Write
18x/8x DVD+R/RW Write
48x CD-ROM Read
48x/32x CD-R/RW Write
16x DVD-ROM Read
20x/6x DVD-R/RW Write
20x/8x DVD+R/RW Write
48x CD-ROM Read
48x/32x CD-R/RW Write

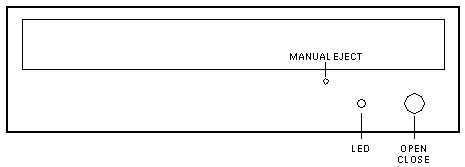

Front View (Generic TS-H652D)

Rear View (Generic DVD-ROM)

Notes

  1. Drive 390-0346 and Assembly 541-2478 were released in February 2007. (WO_35001)
  2. Drive 390-0346 was added to 540-7092 in February 2007. (WO_35269)
  3. Drive 390-0346 was removed from 540-7092 in March 2007. (WO_38714)
  4. Drive 390-0405 was added to 540-7092 in March 2007. (WO_38714)
  5. Drive 390-0405 was added to 541-2478 in November 2008. (WO_39810)



16X DVD-ROM Writer / 48X CD-ROM Writer

Ultra 24 / Ultra 27

Option X4133A-Z

390-0389 390-0440 390-0466 540-7509
TSST TS-H653B
SATA Interface
1 5/8" Height
TSST TS-H653F
SATA Interface
1 5/8" Height
TSST TS-H653G
SATA Interface
1 5/8" Height
Ultra 24 FRU
16x DVD-ROM Read
16x/6x DVD-R/RW Write
16x/8x DVD+R/RW Write
48x CD-ROM Read
48x/32x CD-R/RW Write
16x DVD-ROM Read
16x/6x DVD-R/RW Write
16x/8x DVD+R/RW Write
40x CD-ROM Read
40x/32x CD-R/RW Write
16x DVD-ROM Read
16x/6x DVD-R/RW Write
16x/8x DVD+R/RW Write
48x CD-ROM Read
48x/32x CD-R/RW Write

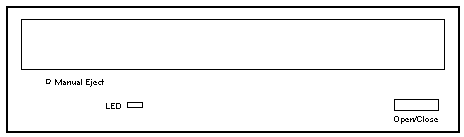

Front View (TS-H653B)

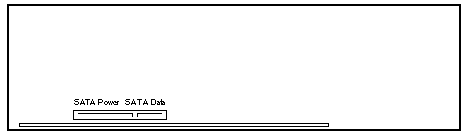

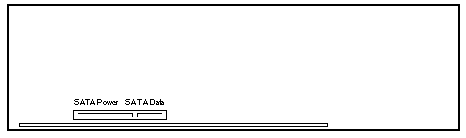

Rear View (TS-H653B)

Notes

  1. The Ultra 24 FRU is Assembly 540-7509.
  2. Assembly 540-7509 contains only a DVD-ROM/CD-ROM.
  3. Drives used in 540-7509 are subject to change without notice.



16X DVD-ROM Writer / 48X CD-ROM Writer

Ultra 24

Option X4134A-Z

390-0390 540-7510
TSST TS-H353B
SATA Interface
1 5/8" Height
Ultra 24 FRU
16x DVD-ROM Read
48x CD-ROM Read

Front View (TS-H353B)

Rear View (TS-H353B)

Notes

  1. The Ultra 24 FRU is Assembly 540-7510.
  2. Assembly 540-7510 contains only a DVD-ROM/CD-ROM.
  3. Drives used in 540-7510 are subject to change without notice.
