16-32GB 4 mm DDS-2 Autoloader

Servers:

SPARCcenter 2000

SC2000

Options 6271 / 6272 / 6273 / 6274 / 6275 / 6276

370-2179	370-2180	370-2201
Conner 71300105 Light Grey Bezel	Conner 71300106 Medium Grey Bezel	Conner 71300107 Black Bezel

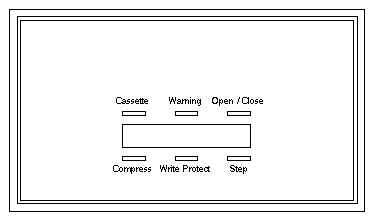

Operator Panel

LMJB0259 PCB

Address Select Switch Cable

In the Multi-Tape Backup Tray and SC2000, orient the Address Select Switch Cable as shown, and plug it into JP6503.

Note

Remove the mylar sheet from the bottom of the drive before installation.

Jumper Settings

JP6501 PINS SETTING DESCRIPTION 1-2 Out Disable TERMPWR to bus 1-2 In Enable TERMPWR to bus

JP6503 SCSI ID 3 2 1 0 Out Out Out 1 Out Out In 2 Out In Out 3 Out In In 4 In Out Out 5 In Out In 6 In In Out

SW6501 SWITCH SETTING DESCRIPTION 1 Off Enable SCSI ID 0 = 20 2 Off Enable SCSI ID 1 = 21 3 Off Enable SCSI ID 2 = 22 4 On Enable SCSI-2 mode 5 On Enable parity 6 Off Enable data compression 7 Off Reserved for factory use 8 On Enable power-on self test

LMJB0178 PCB

S1 SWITCH SETTING DESCRIPTION 1 2 Off* Off* English language display 1 2 Off On French language display 1 2 On On Spanish language display 1 2 On Off German language display 3 3 Off On* Stop after last tape Restart at Tape 1 after last tape 4 4 On* Off High intensity display Low intensity display 5 On* Enable power-on self test 6 Off Not used 7 Off Not used * Default settings

Auto-Loader

S5

SWITCH SETTING DESCRIPTION 1 Off* On Horizontal character display Vertical character display 2 Off On* Do NOT load tape on power-up Load tape on power-up 3 Off Reserved 4 Off Reserved * Default settings

Notes

1. The minimum operating system is Solaris 1.1.1 or Solaris 2.3.
2. Fan Assembly 540-2607 is required when the drive is installed in the SC2000 SCSI tray.
3. The 4-Tape Magazine part number is 370-1683-01.
4. The Blank DDS-2 120 Meter Tape part number is 370-2181-01.
5. The Cleaning Kit part number is 370-1613-01.

References

1. DDS-2 Tape Drive Specification, 802-5324.
2. DDS-2 Autoloader Installation Manual, 802-5324.
