16X DVD-ROM / 48X CD-ROM

Workstations: Sun Blade 100, 150

Option 6175

370-4439
Panasonic SR-8588M
Lite-On LTD-163
ATAPI/IDE Interface
1 5/8" Height

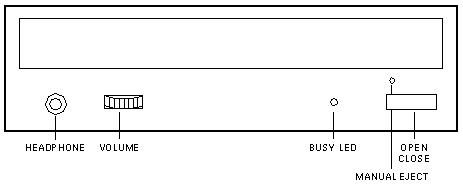

Front View

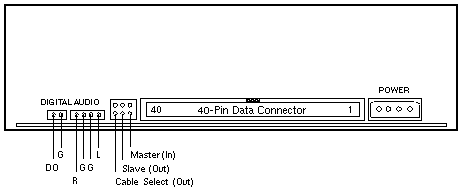

Rear View

Notes

  1. Sun Blade 150 requires 370-4439-02.
  2. 370-4439-02 is backwards-compatible with Sun Blade 100.
  3. Lite-On was added as a second source in approximately July 2002.
  4. Lite-On 370-4439-01 with firmware G3H8 is unable to boot Solaris.
  5. Lite-On 370-4439-02 with firmware G3HA is able to boot Solaris.
  6. Use the iostat -E command or look at the drive cover to check firmware.

References

  1. Sun Blade 100 Getting Started, 806-3415.
  2. Sun Blade 100 Service Manual, 806-3416.



16X DVD-ROM / 48X CD-ROM

Workstations: Sun Blade 1500, 2500
Servers: Sun Fire V250

Option 5409

370-5690
Samsung SD-816
Lite-On XJ-HD166S
ATAPI/IDE Interface
1 5/8" Height

Front View (Samsung SD-816)

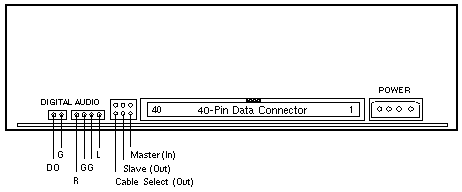

Rear View (Samsung SD-816)

Notes

  1. Alternate sources for 370-5690 may be used without notice.
  2. Specifications for the SD-816 are 16x DVD-ROM and 40x CD-ROM.
  3. Specifications for the XJ-HD166S are 16x DVD-ROM and 48x CD-ROM.
  4. The SD-816 was disqualified on the approved vendor list in August 2003.
  5. There is no Sun part number for the green mounting rails on SB1500, SB2500, or V250.
  6. DVD-ROM 370-5690-03 does not include the Headphone jack and Volume knob.



16X DVD-ROM / 48X CD-ROM

Workstations: Sun Blade 1500

370-7699
Lite-On XJ-HD166S
Panasonic SR-8589
ATAPI/IDE Interface
1 5/8" Height

Front View (Panasonic SR-8589)

Rear View (Panasonic SR-8589)

Notes

  1. Alternate sources for 370-7699 may be used without notice.
  2. Specifications for the XJ-HD166S are 16x DVD-ROM and 48x CD-ROM.
  3. Specifications for the SR-8589 are 16x DVD-ROM and 48x CD-ROM.
  4. There is no Sun part number for the SB1500 green mounting rails.



16X DVD-ROM / 48X CD-ROM

Servers: Sun Fire V890
Sun Fire 12K, 15K, E20K, E25K
Disk Arrays: StorEdge D240

Option 5883

390-0161 595-5473
Toshiba SD-M1712
ATAPI/IDE Interface
1 5/8" Height
Medium Grey Bezel
D240 FRU
Option 5883
Assy 540-5699-02

Front View

Rear View

Notes

  1. The M1711 was replaced with the M1712 in December 2004.
  2. Assembly 540-5699-02 includes ATAPI to SCSI Adapter 375-3239.
  3. Specifications for the M1711 SCSI Drive are 12x DVD-ROM and 48x CD-ROM.
  4. Specifications for the M1712 ATAPI drive are 16x DVD-ROM and 48x CD-ROM.

Reference

Installation and User's Guide, 806-5518.



16X DVD-ROM / 48X CD-ROM

Servers: Sun Fire V890
Disk Arrays: StorEdge D240

Option 5883

390-0287 541-1296 595-5473
Toshiba TS-H352C
ATAPI/IDE Interface
1 5/8" Height
Medium Grey Bezel
V890 Assembly/FRU
No Option
DVD 390-0287
Bracket 541-1325
D240 FRU
Option 5883
DVD 390-0287
540-5699-02 Rev 51
and 540-5699-03

Front View

Rear View

Notes

  1. The M1711 was replaced with the M1712 in December 2004. (WO_29667)
  2. The M1712 was replaced with the TS-H352 in October 2005. (WO_31445)
  3. Assemblies 540-5699-02 and -03 include ATAPI to SCSI Adapter 375-3239.
  4. Specifications for the M1711 SCSI Drive are 12x DVD-ROM and 48x CD-ROM.
  5. Specifications for the M1712 ATAPI drive are 16x DVD-ROM and 48x CD-ROM.
  6. Specifications for the TS-H352 ATAPI drive are 16x DVD-ROM and 48x CD-ROM.

Reference

Installation and User's Guide, 806-5518.



16X DVD-ROM / 48X CD-ROM

Workstations: Ultra 20, Ultra 20 M2

Options 4215A-Z / 8014A / 8014A-Z

370-7950 371-1400 371-2276
Panasonic SR-8589C
Lite-On SOHD-16P9S
ATAPI/IDE Interface
1 5/8" Height
Option 8014A
Panasonic SR-8589C
Lite-On SOHD-16P9S
ATAPI/IDE Interface
1 5/8" Height
Option 8014A-Z
Lite-On SHD-16P1S
Lite-On DH-16D2P
ATAPI/IDE Interface
1 5/8" Height
Option 4215A-Z
16x DVD-ROM Read
48x CD-ROM Read
16x DVD-ROM Read
48x CD-ROM Read
16x DVD-ROM Read
48x CD-ROM Read

Front View (SOHD-16P9S)

Rear View (SOHD-16P9S)

Note

  1. Alternate sources for 370-7950 may be used without notice.
  2. Alternate sources for 371-2276 may be used without notice.
